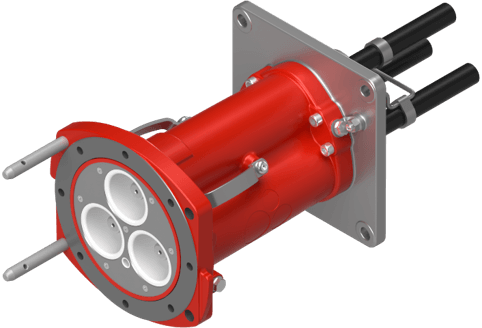

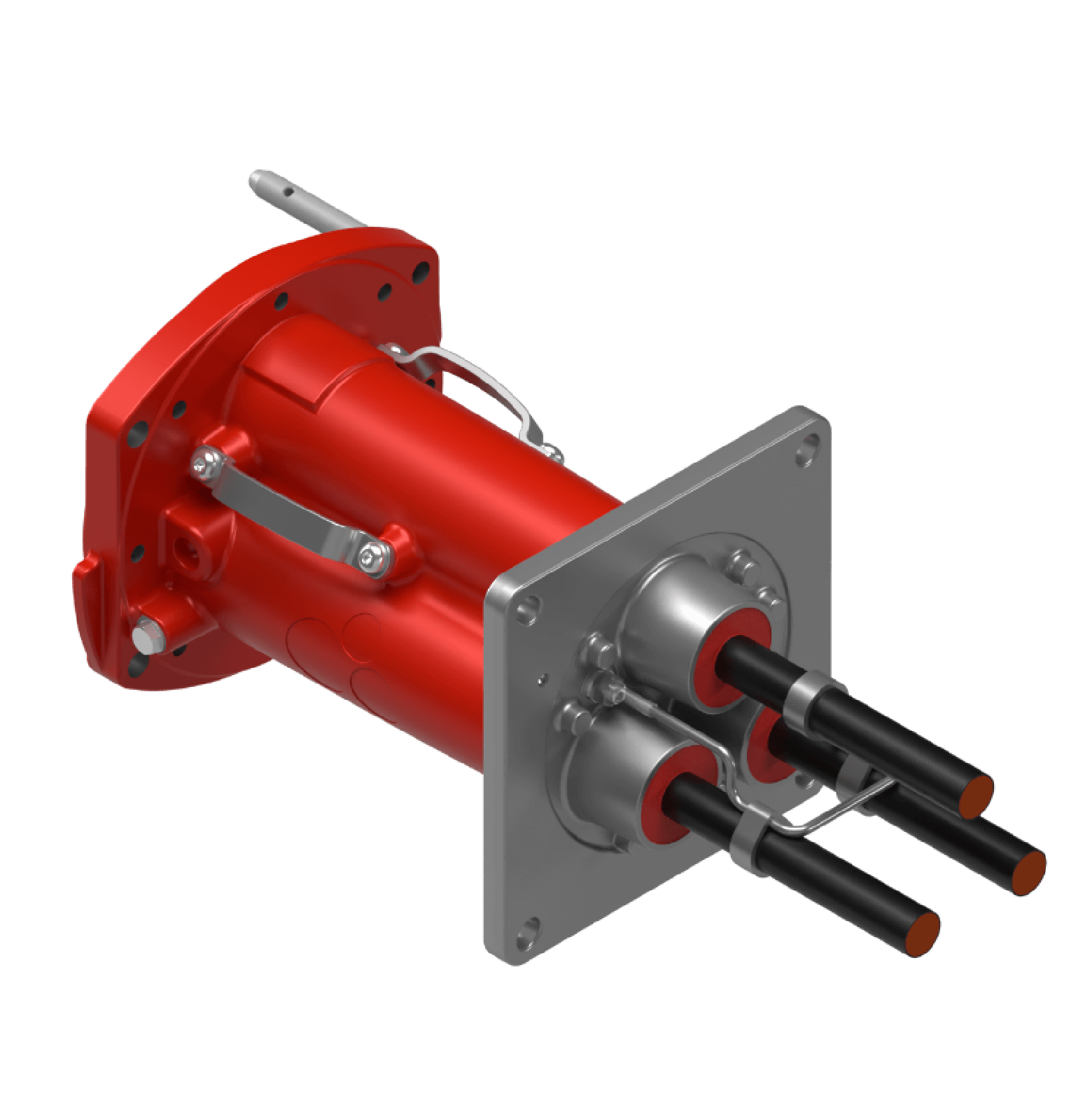

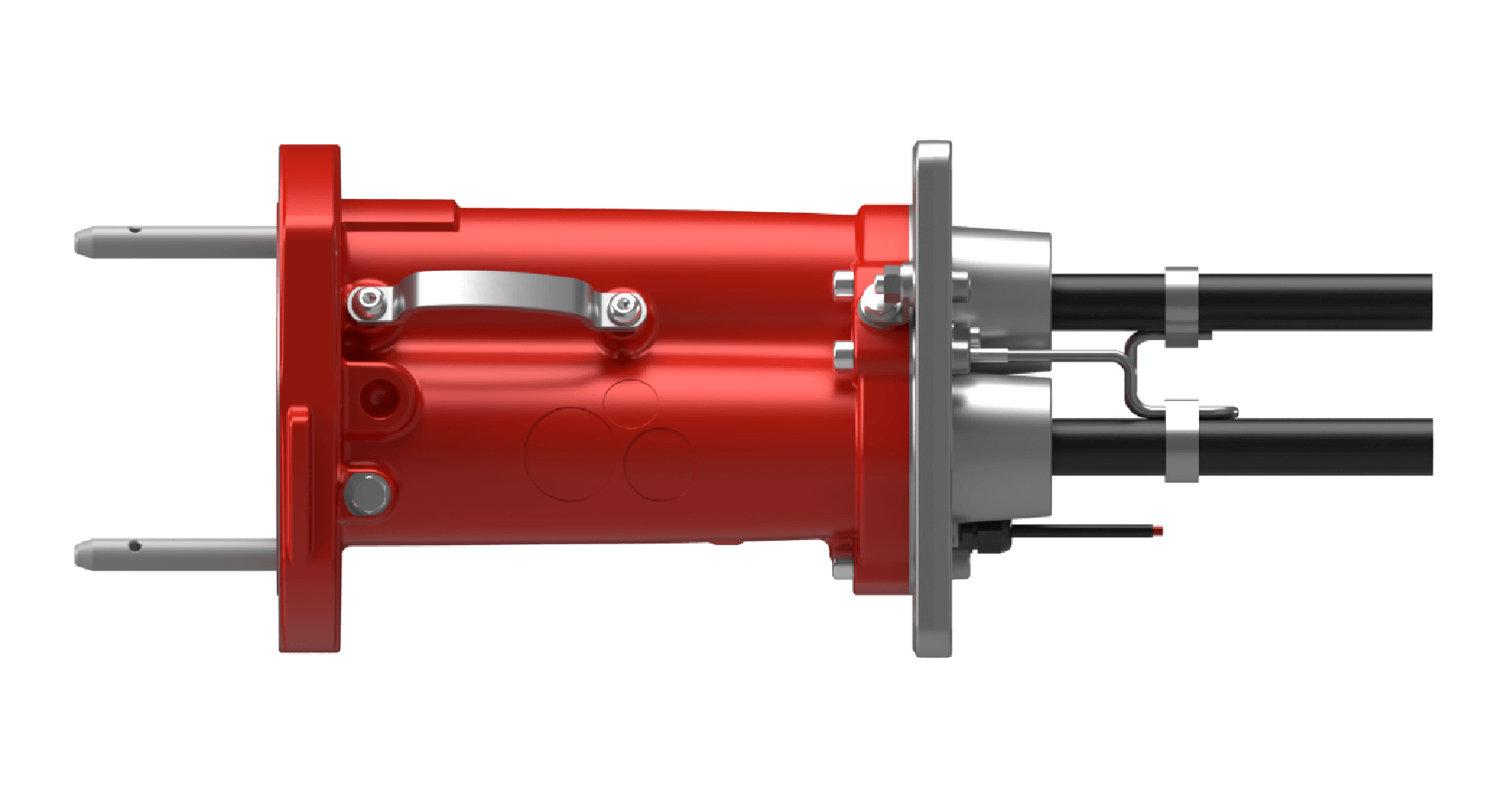

Fit and Go Adaptors – 11,000 Volts | 800 Amp | Open Cut Coupler

The 11,000 volt 800 amp aluminium range is now offered with Fit and Go Adaptors option, that comes with earthed tails and 1 rubber gasket.

Partnering with KableX, the Fit and Go Adaptors have been designed and manufactured by AusProof’s research and development department and are suitable for use in tunnelling and hard rock mines.

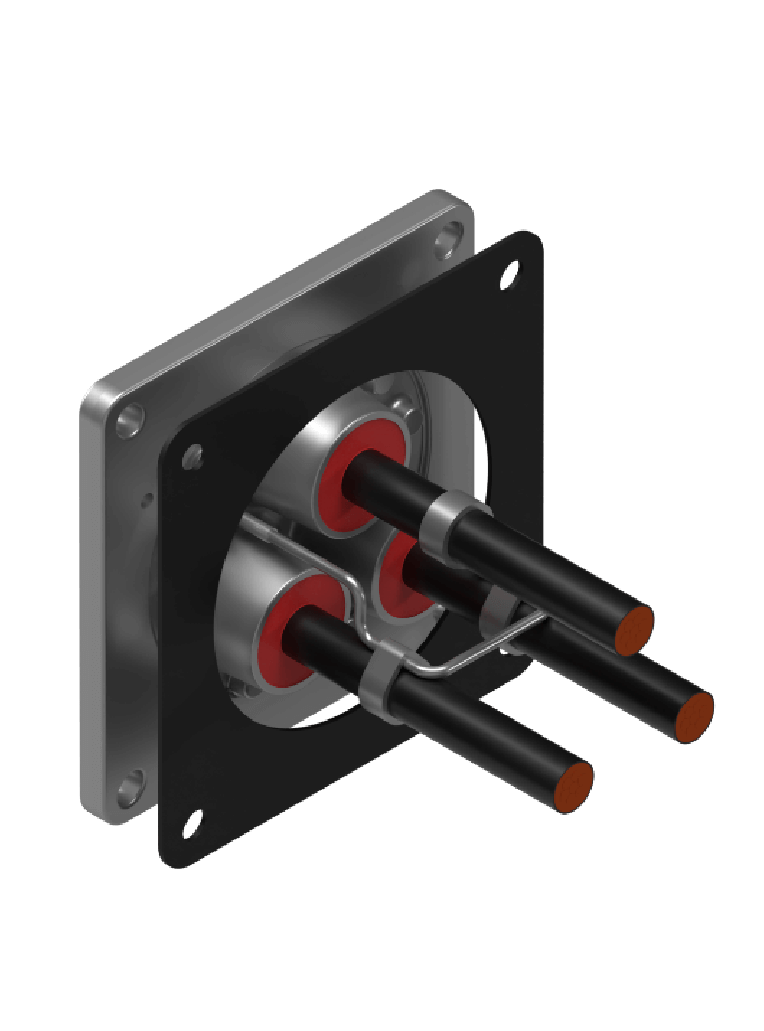

Available for both the 114BKA and 118BKA ranges, the adaptors are preterminated with 120²/240² 12.7/22kV tails, with a 50mm intrusion into enclosure.

Contact us

  • Features

    • IP68 rating
    • LED Live Line indicator
    • Less bolts to make a join
    • Solid face and body casting
    • Higher MPa Aluminium material
    • Earth Pilot Connector
    • Handles
    • All air expelled on joining
    • Silicon seal for face
    • Full phase to earth segregation
    • Arc extinguishing Phase Insulators
    • Genderless design

  • Accessories

    • Adaptor – Gear Mount
    • Silicon Phase Connectors
    • Cast Protection Cover
    • Contacts Crimp
    • Contacts Soldered
    • Gland – Armoured
    • Gland – Unarmoured
    • Insulated End Cover
    • Slide Hammer
    • Coupling Tool

Technical Information

  • Specs

    Volts 11,000
    Amp 800
    LOA (mm) 1500
    Weight (KG) 28
    Material Aluminium
    Volume (Litres) 4.0



  • Test Results

    Referenced to AS/NZS 1300, AS/NZS 1299, C22.2 No 298, AS/NZS 1802, AS/NZS 2802, IEEE 386 and IEEE 404
    Through Fault Current (Phase) 3 Tests of 20.0kA for 0.2 second
    1 Test of 20.0kA for 1.0 second
    Through Fault Current (Earth) 1 test of 5.01kA for 9.0 seconds
    AC HV Withstand (Phase) 24.0kV for one minute
    AC HV Withstand (Pilot) 1.0kV for one minute
    Temperature Rise 800 amp
    Ingress Protection IP68
    Impulse Voltage 110kV
    Partial Discharge < 1 pc
