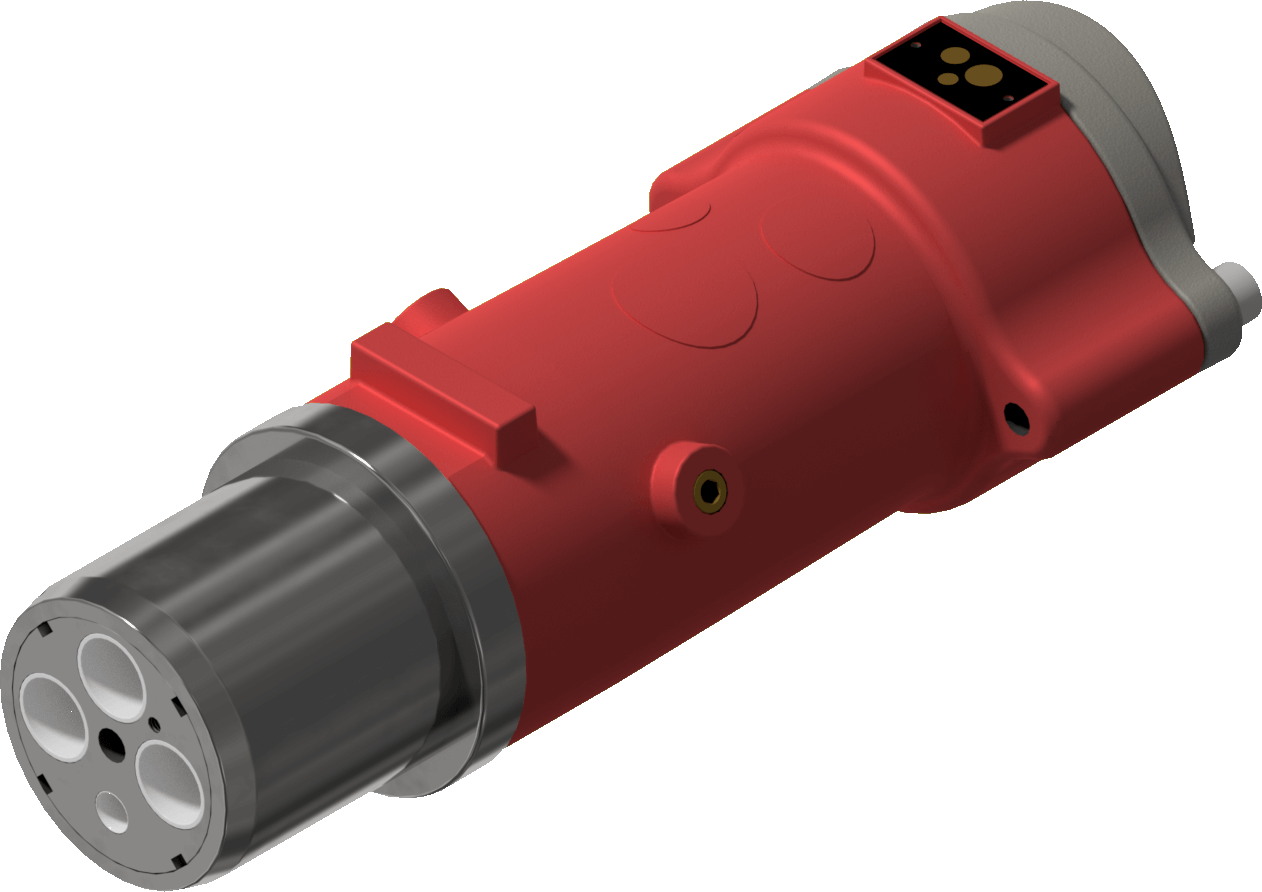

PL (Plug Large) Range | Stainless Steel Restrained Plugs and Receptacles

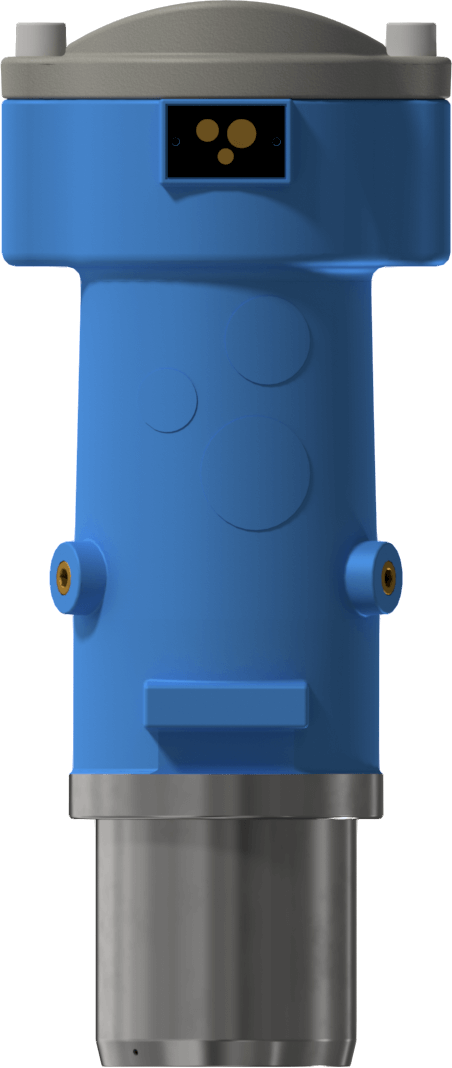

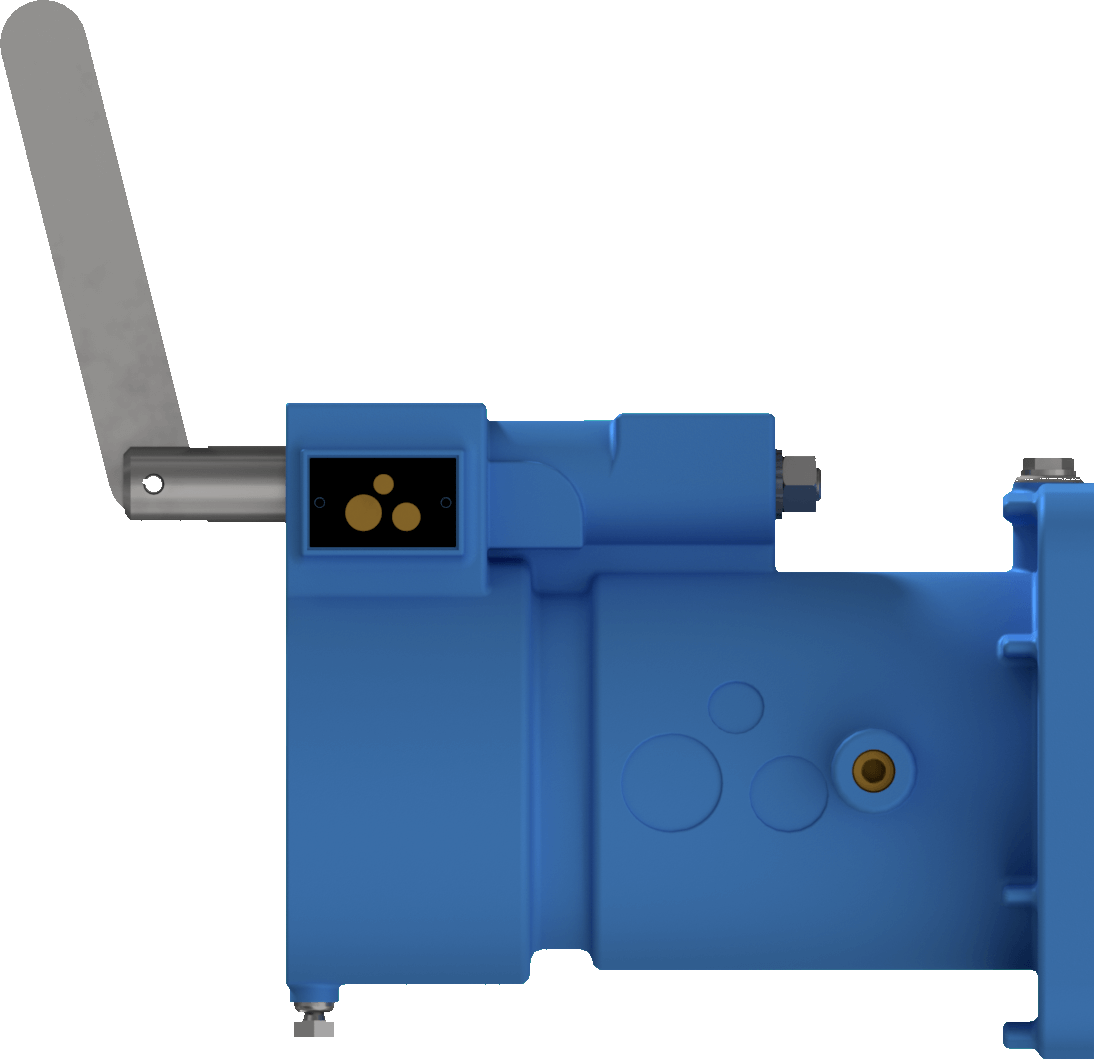

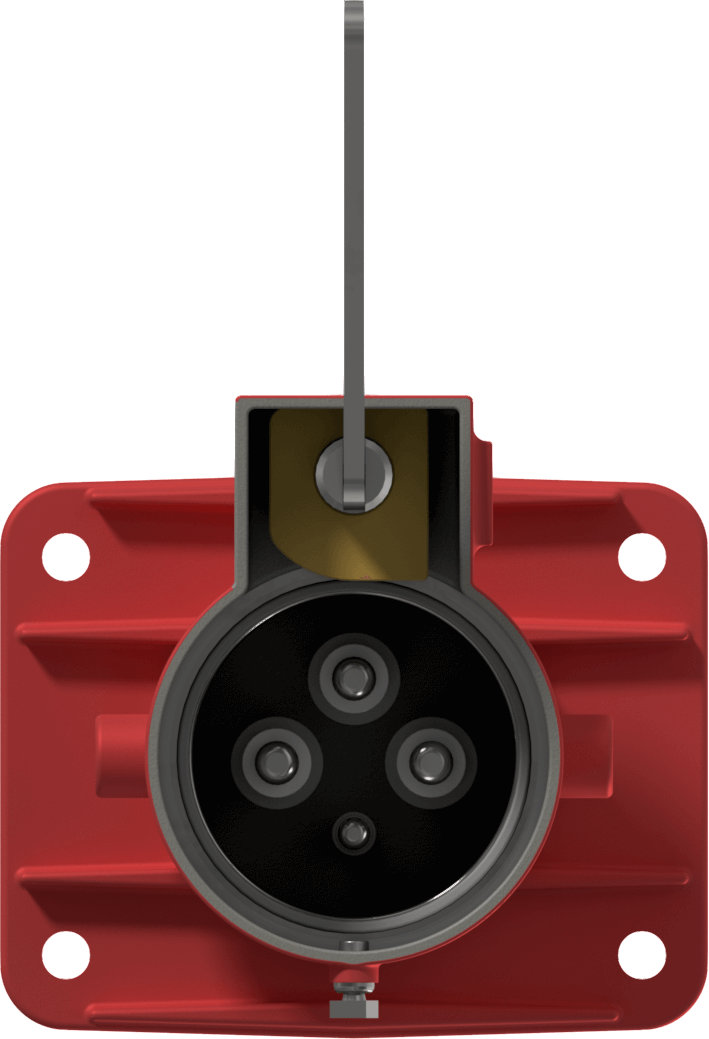

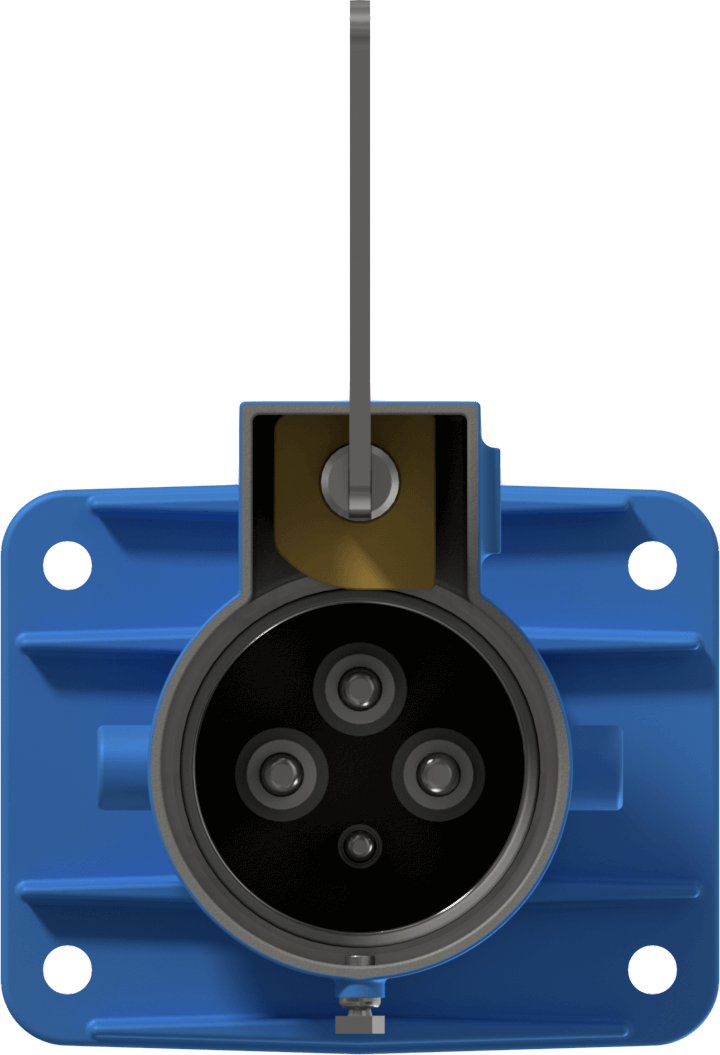

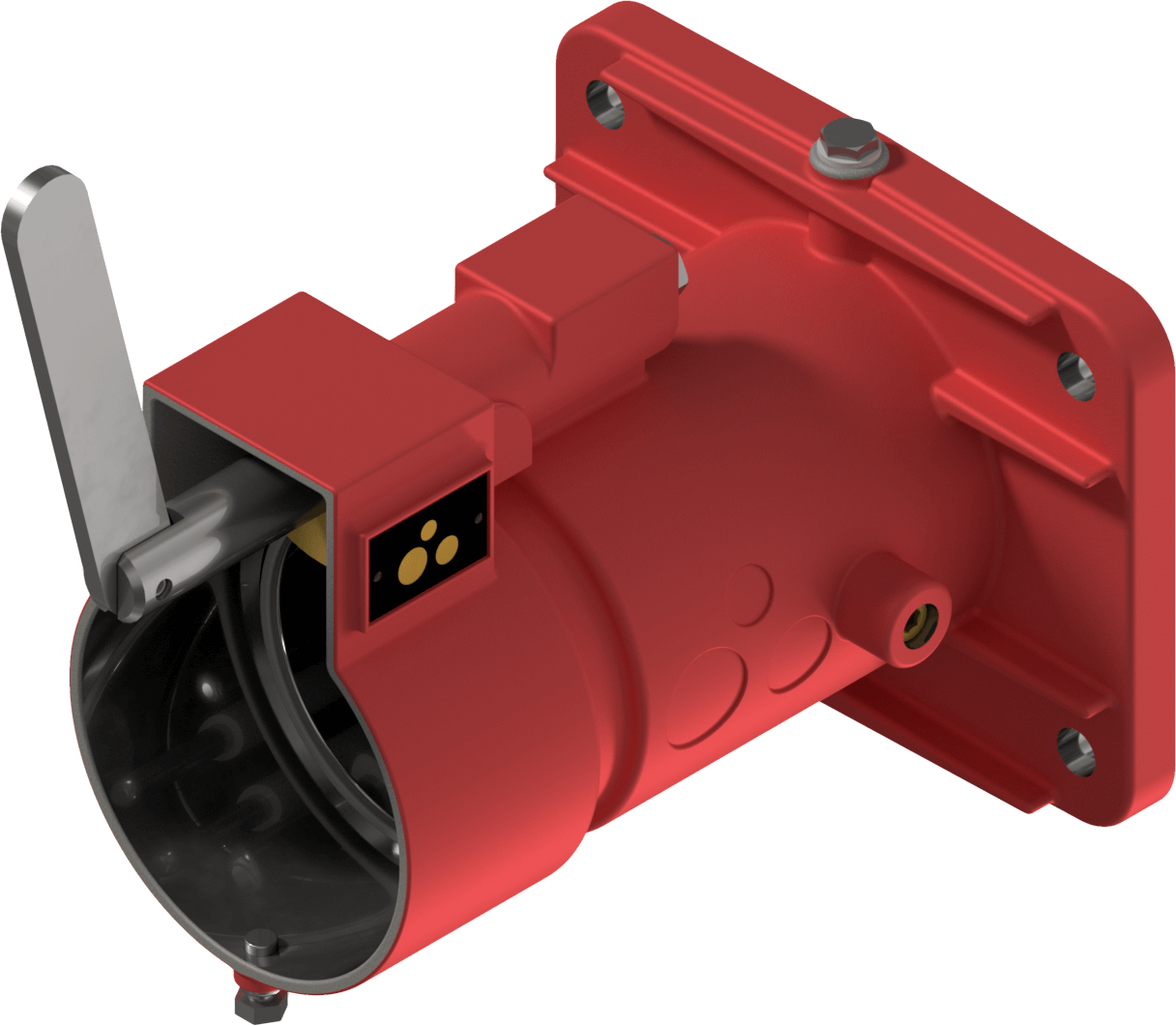

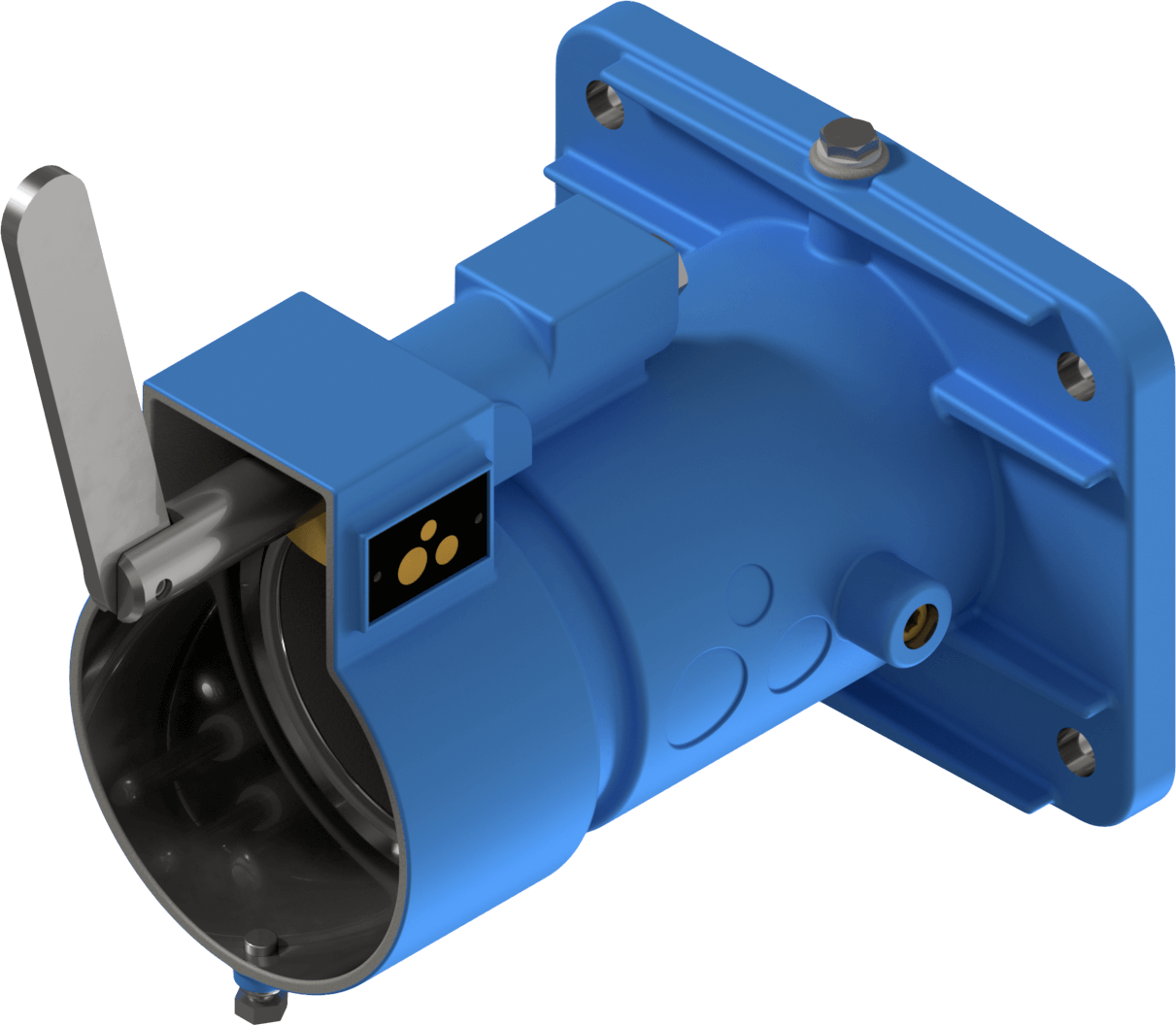

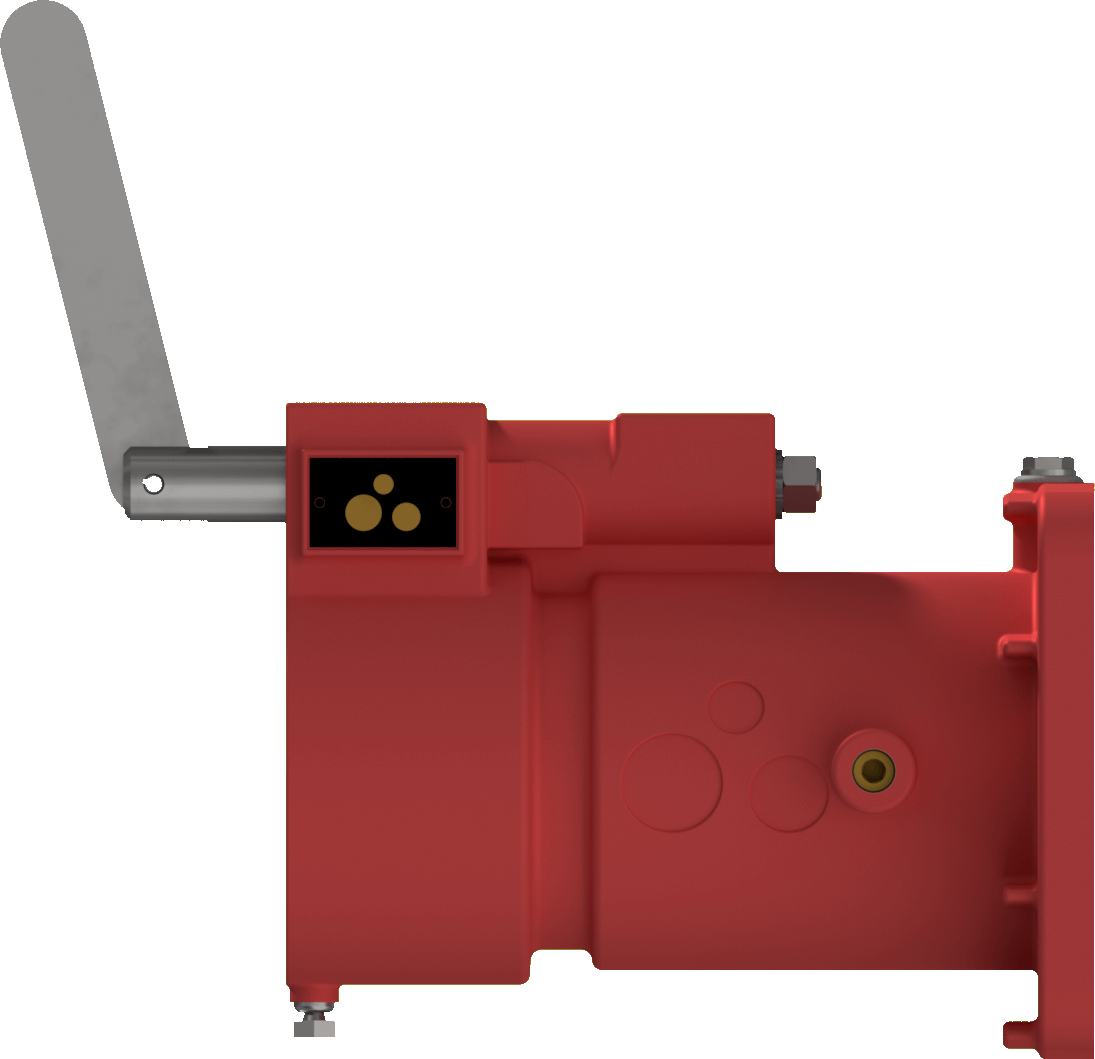

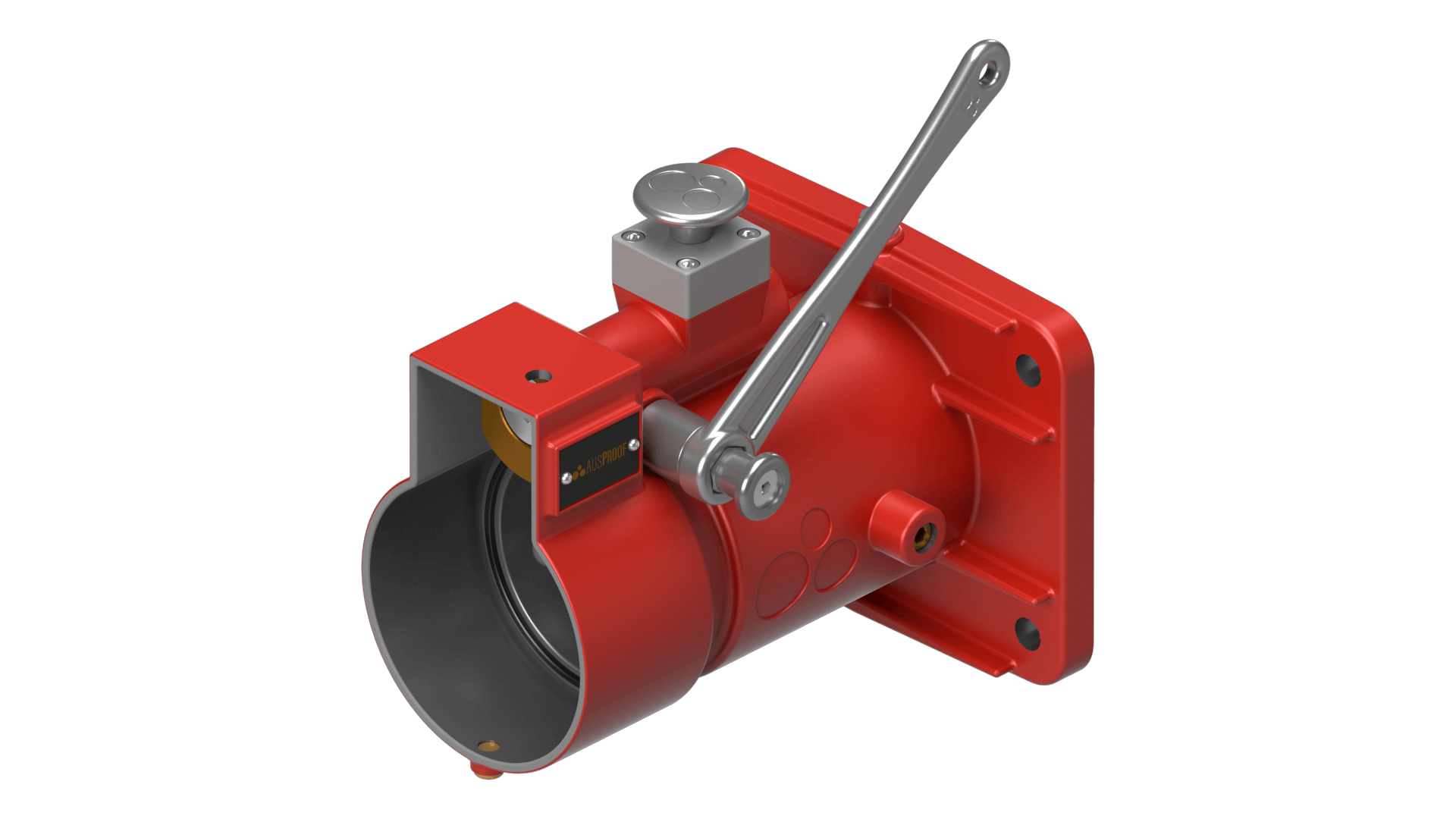

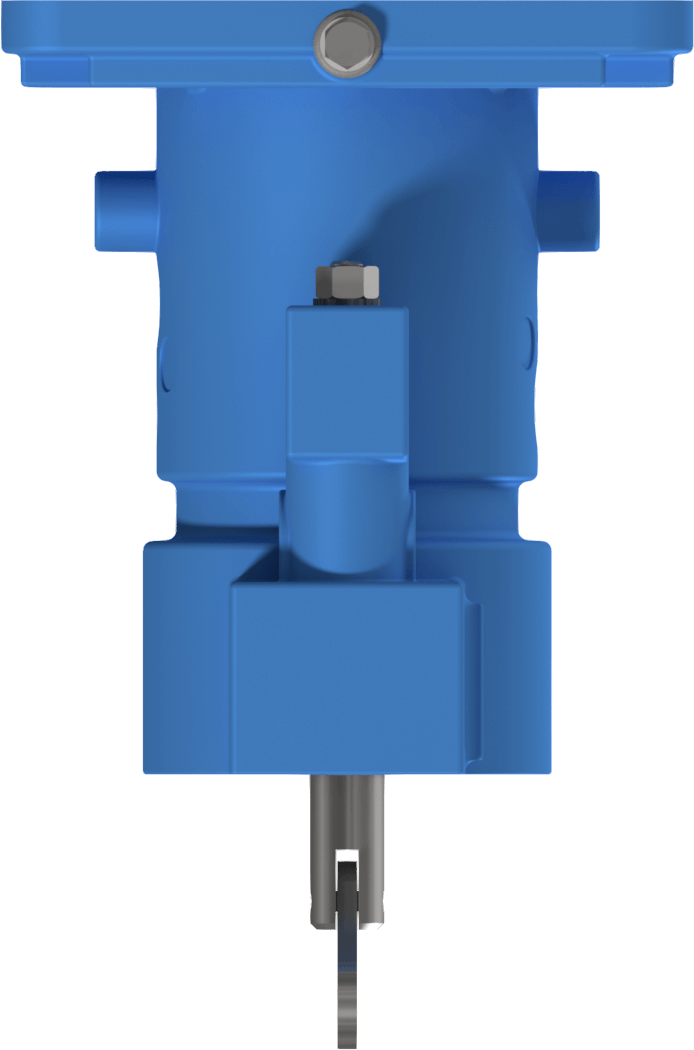

Ex-certified and suitable for use in mining, tunnelling and commercial applications, including Group 1 hazardous environments, receptacles in the PL Range are available in Jack-In Release and Quick Release options.

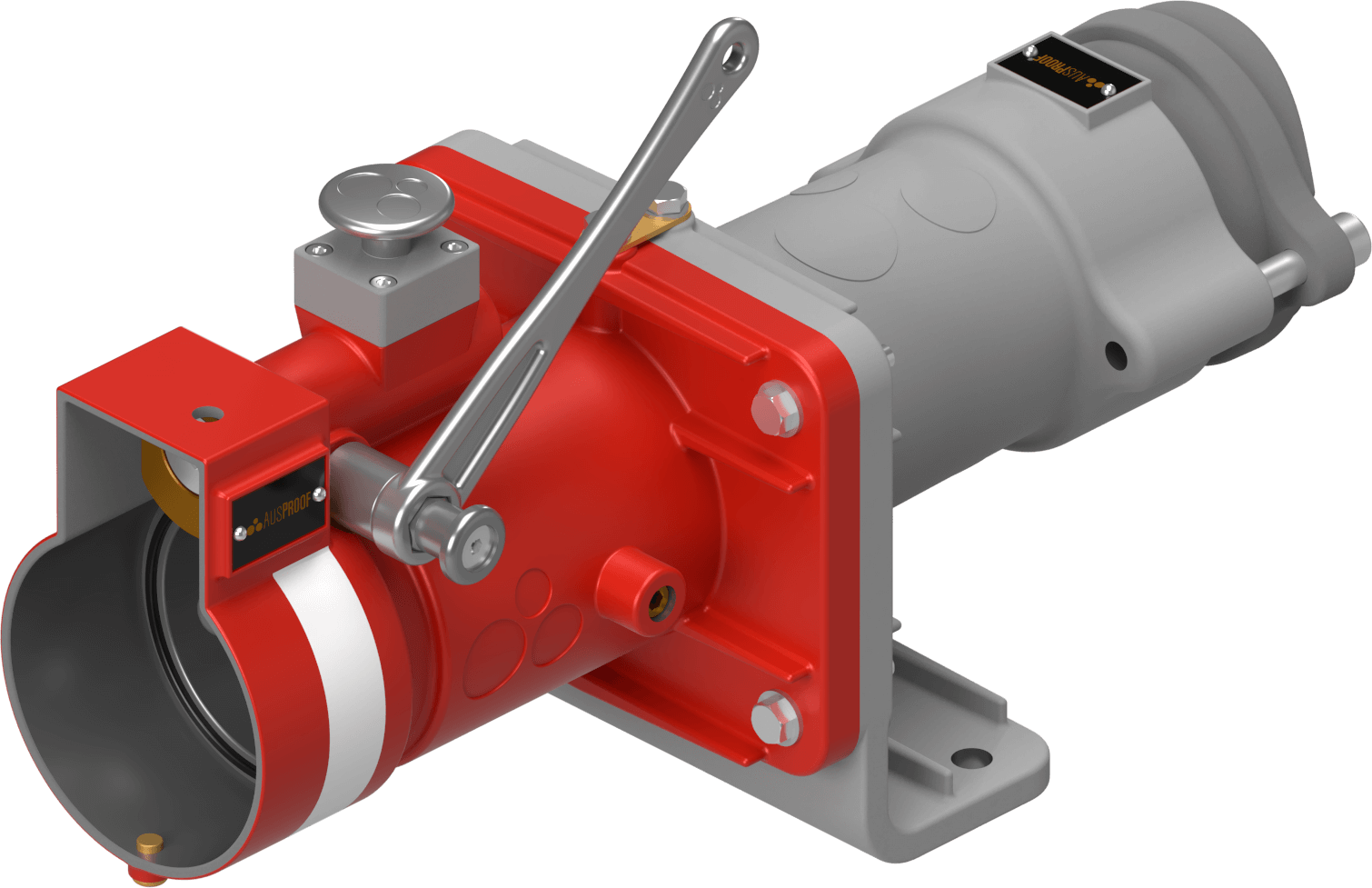

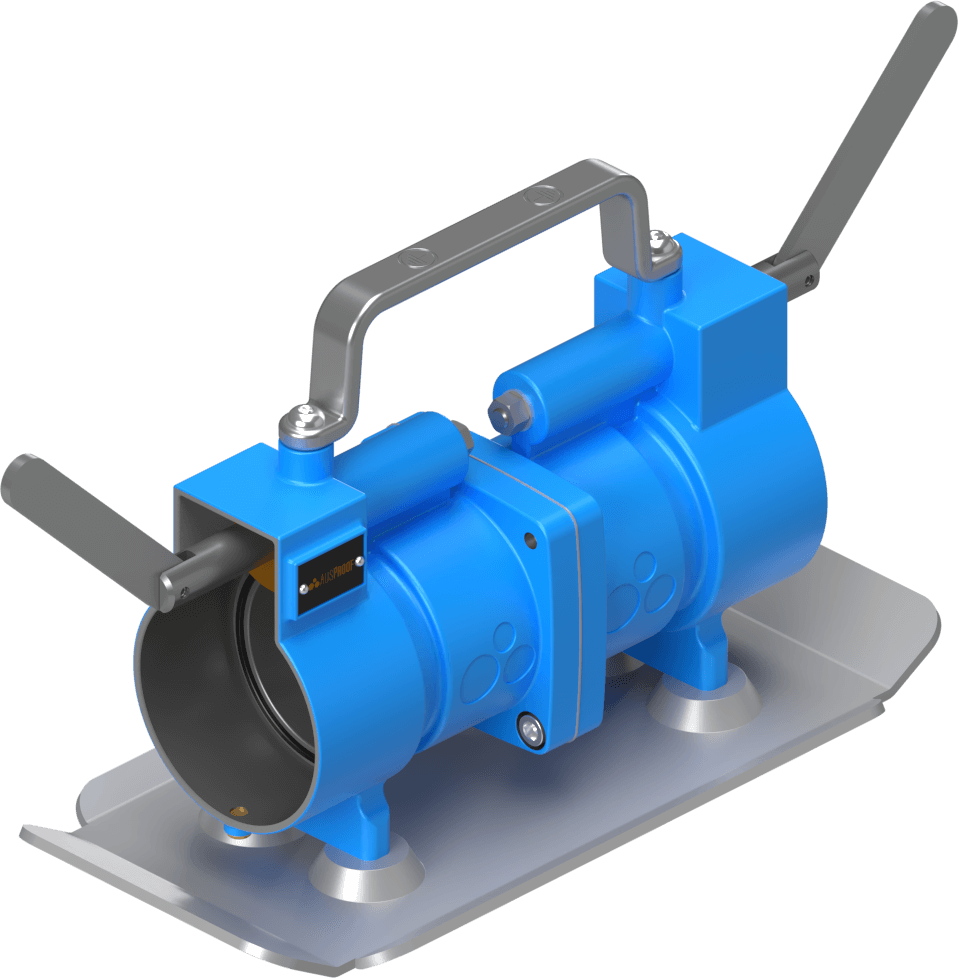

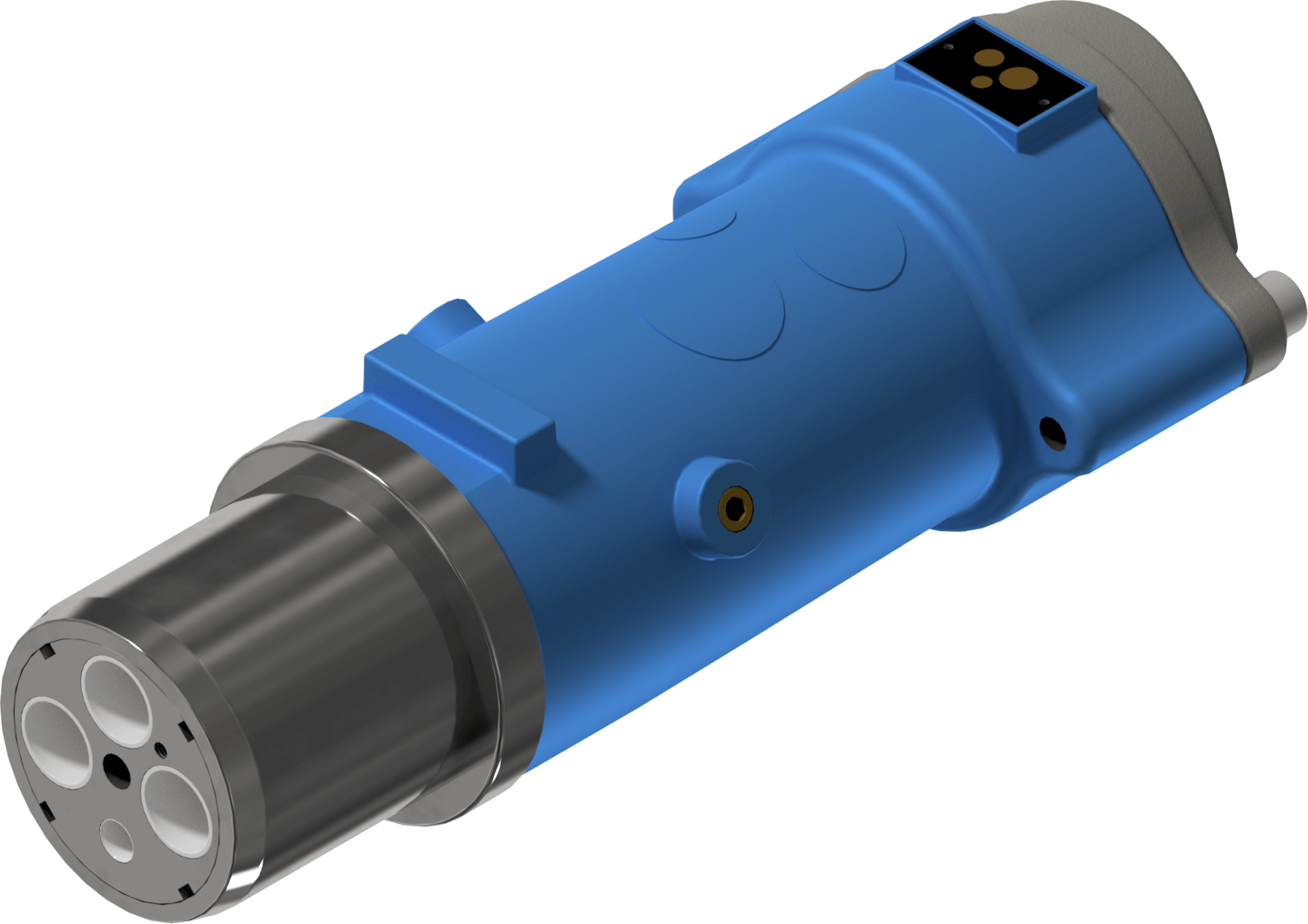

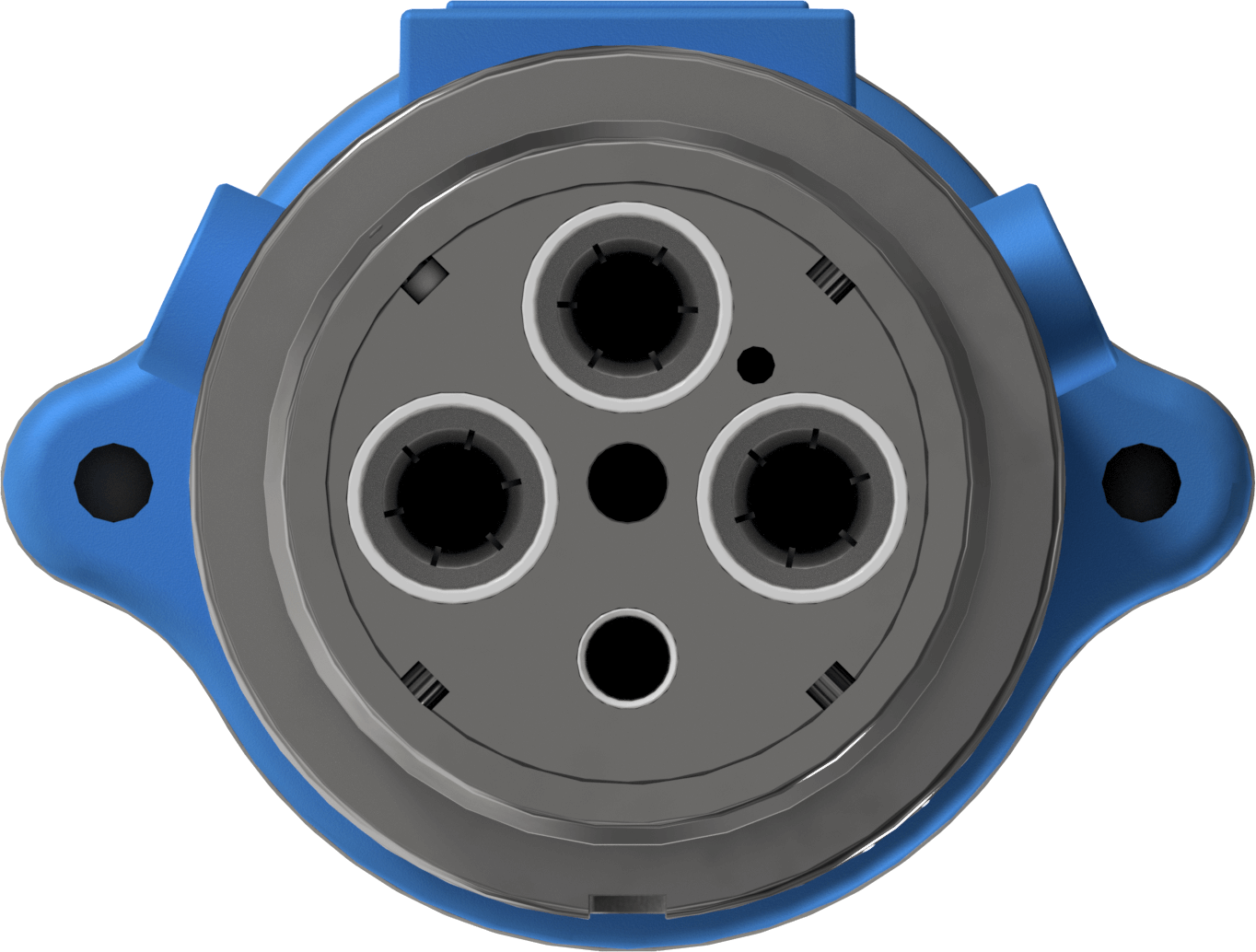

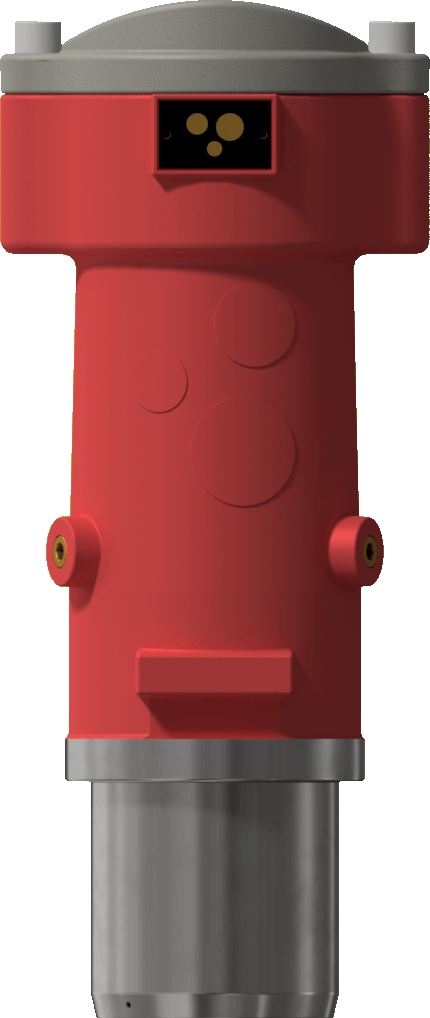

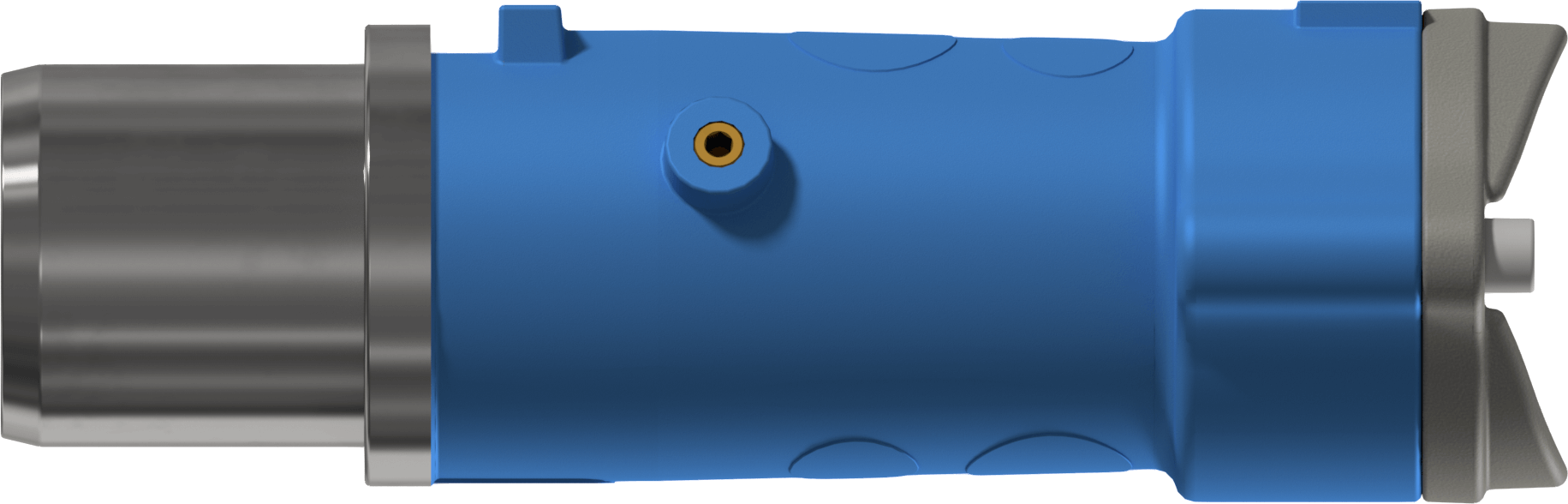

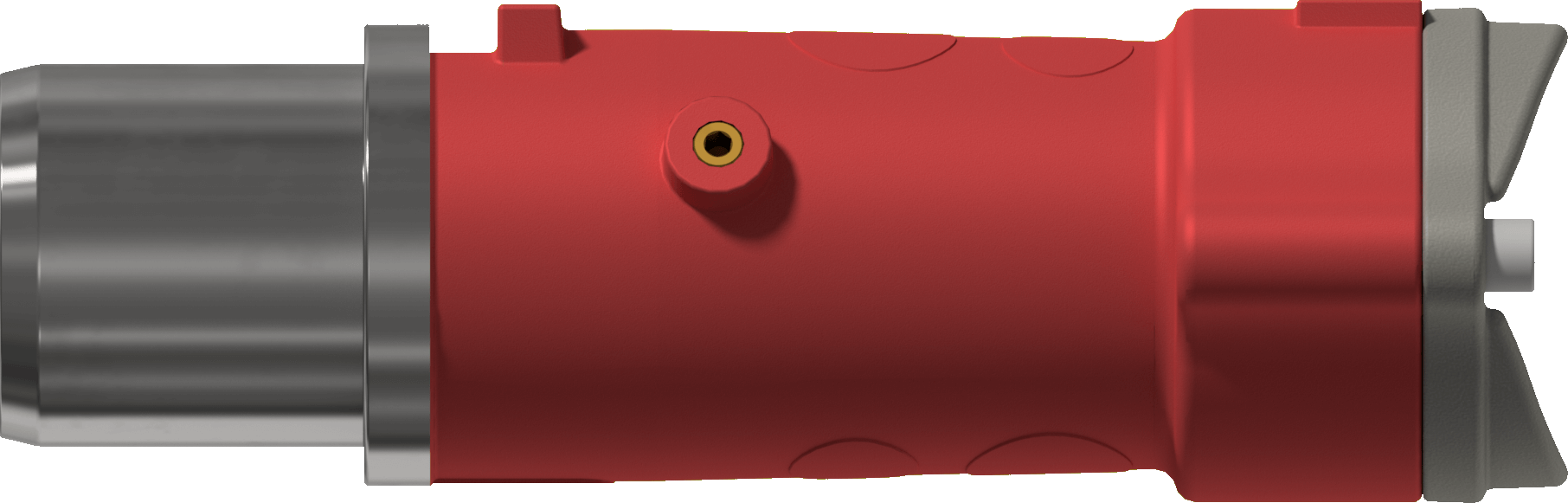

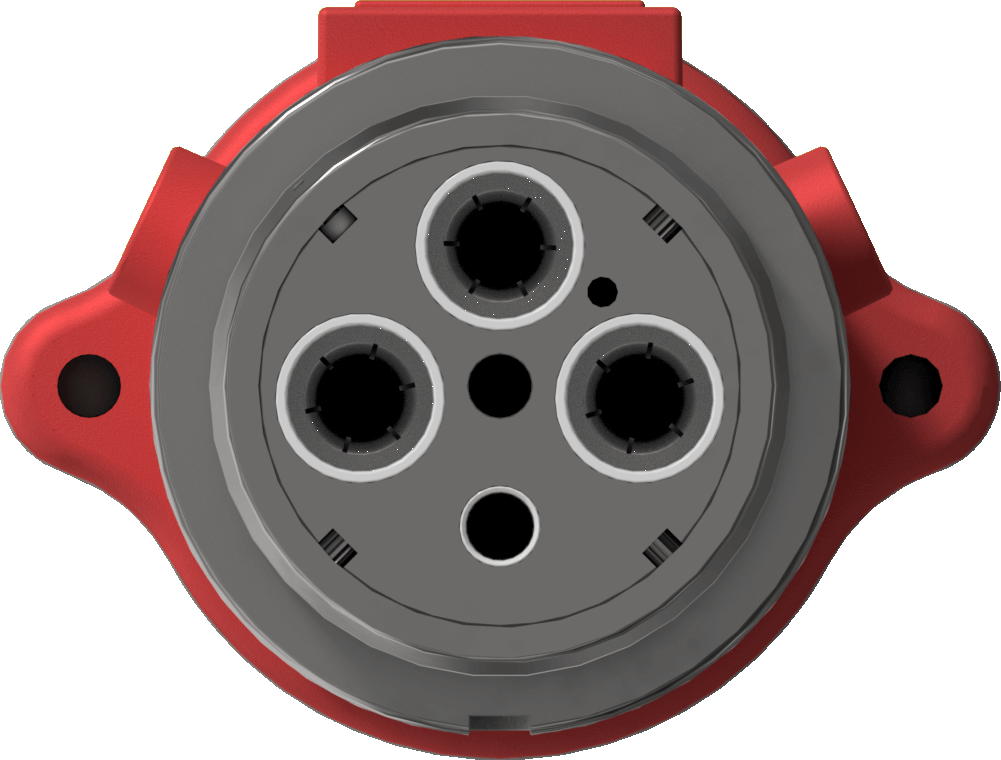

Fully compliant to AS/NZS1299, plugs and receptacles in the PL Range offer operating voltages of 660V, 1,100V and 3,300V, with ratings of 300A and 425A available. All plugs and receptacles in the PL Range can be ordered in either 4-pin or 6-pin configurations. In the event of flamepath damage, the outer body casting of PS plugs can be replaced on-site, even underground, with no specialised training or cable termination required. The outer body casting can also be ordered separately at a fraction of the cost of replacing an entire plug and kept on hand. Back-to-Back (B2B) and Receptacle Gland Bracket (RGB) assemblies are available for both receptacle release options.
-
Features

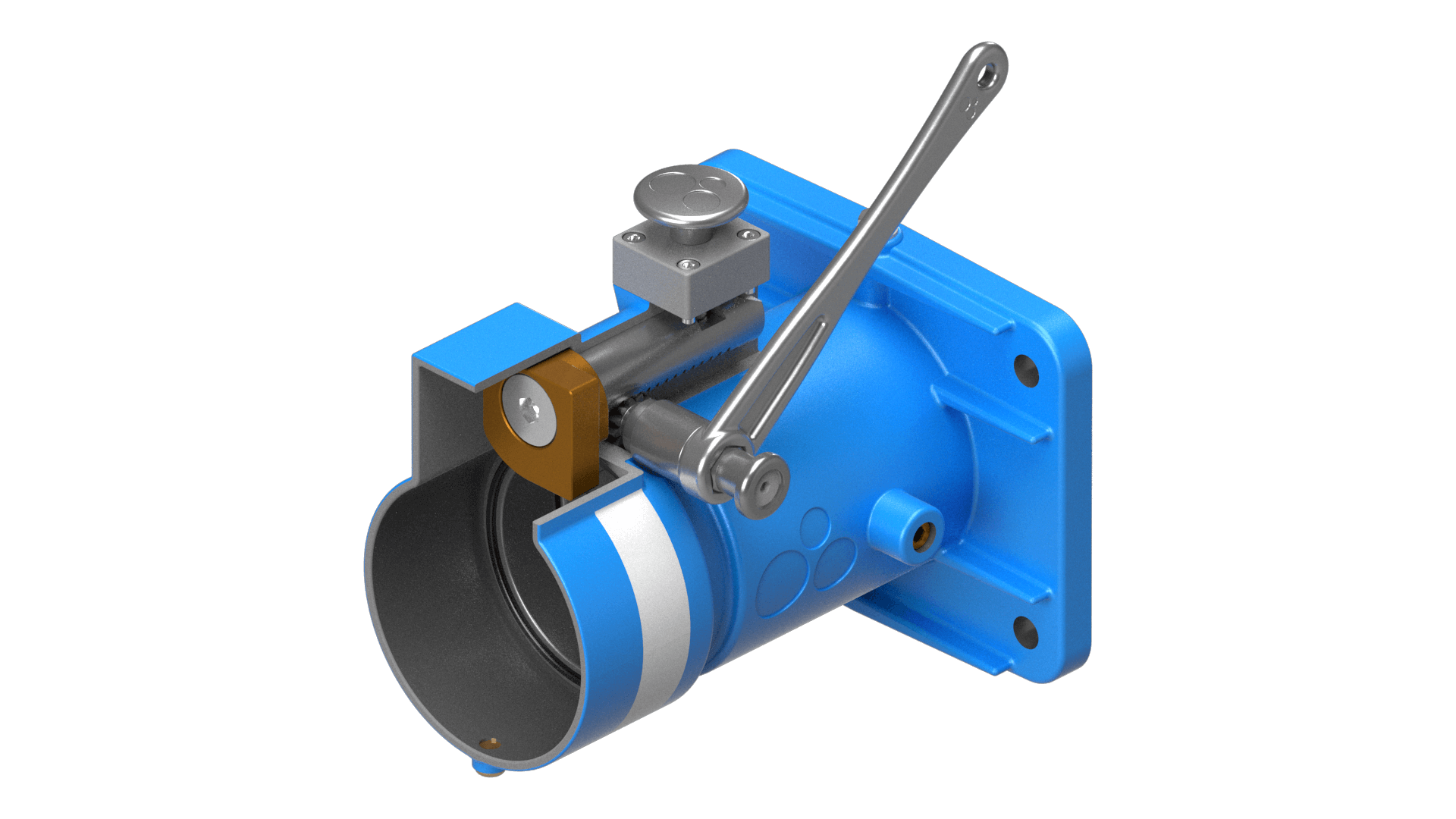

- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
-
Accessories
- Silicone Protection Cover

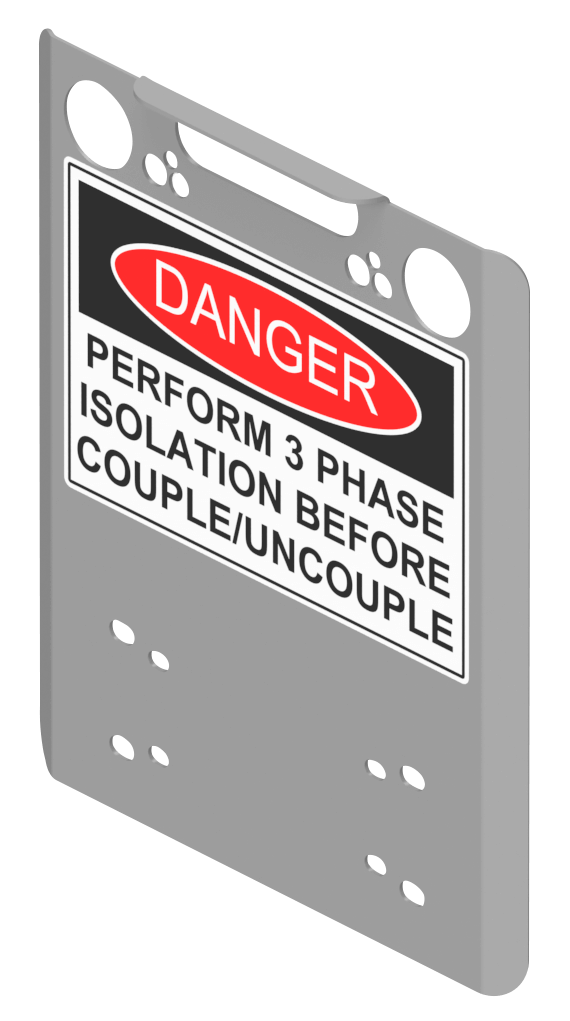

- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Technical Information
-
Specs
Volts 660 to 3300 Amps 300 to 425 Receptacle Weight (KG) 10.7KG Plug Weight (KG) 9.0KG Material Stainless Steel Downloads
Pilot + Phase Contact Connection Lengths Additional Downloads 660V / 300-425A / 4 Pin Technical Manual 1100V / 300-425A / 4 Pin Product Dimensions 1100V / 300-42A / 6 Pin Product Solids 3300V / 300-425A / 4 Pin 3300V / 300-425A / 6 Pin -
Test Results
Compliant to AS/NZS 1299, IEC 60079-0, IEC 60079-1 Through Fault Current (Phase) 2 Tests of 25.0kA for 0.2 seconds Through Fault Current (Earth) 2 Tests of 8.0kA for 0.2 seconds AC HV Withstand (Phase) 8.6kV for one minute AC HV Withstand (Pilot) 1.0kV for one minute Temperature Rise 300A and 425A Ingress Protection IP55 Impulse Voltage N/A Partial Discharge N/A
