PES (Plug Extra Small) Range | Stainless Steel Restrained Plugs and Receptacles

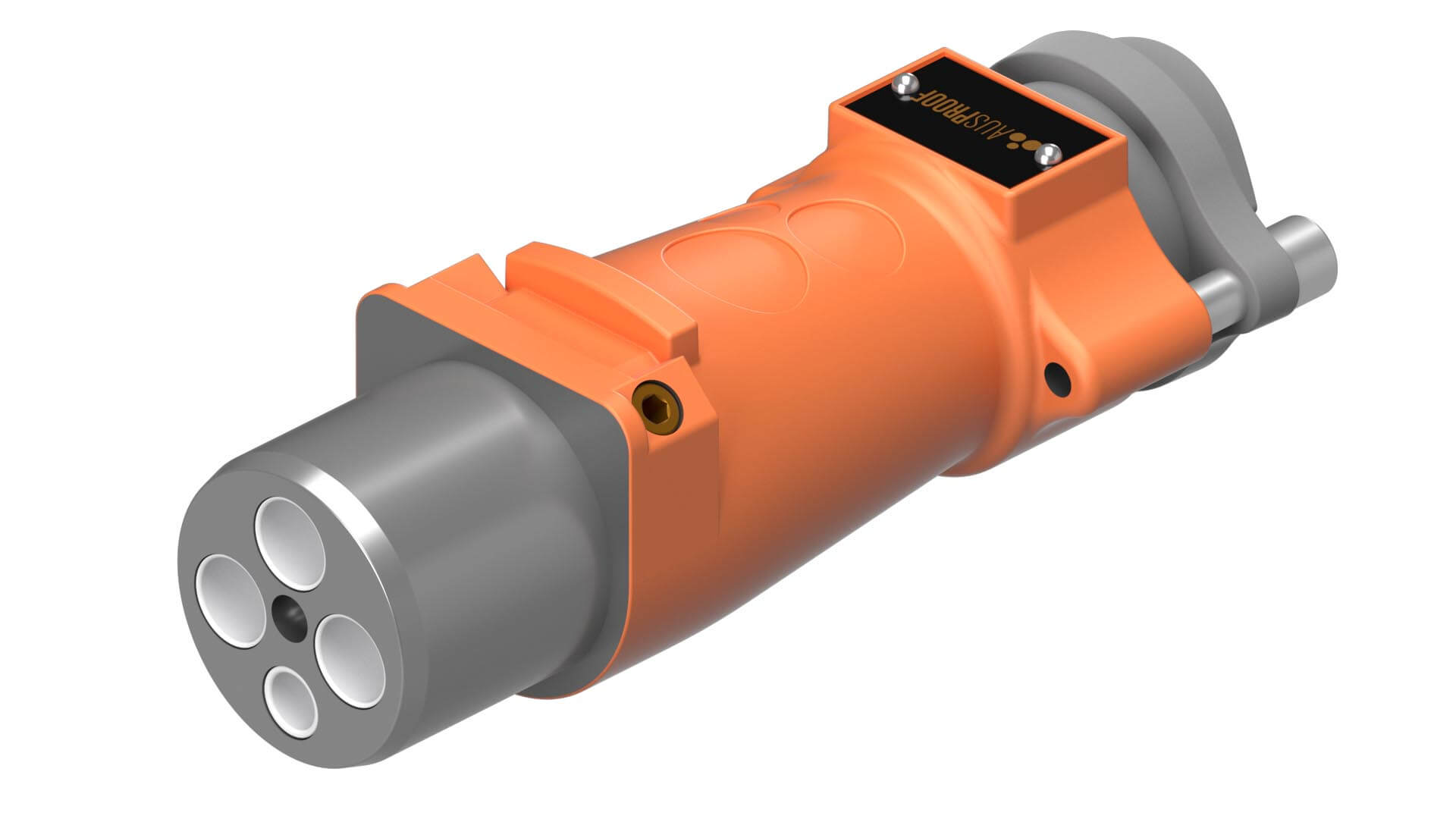

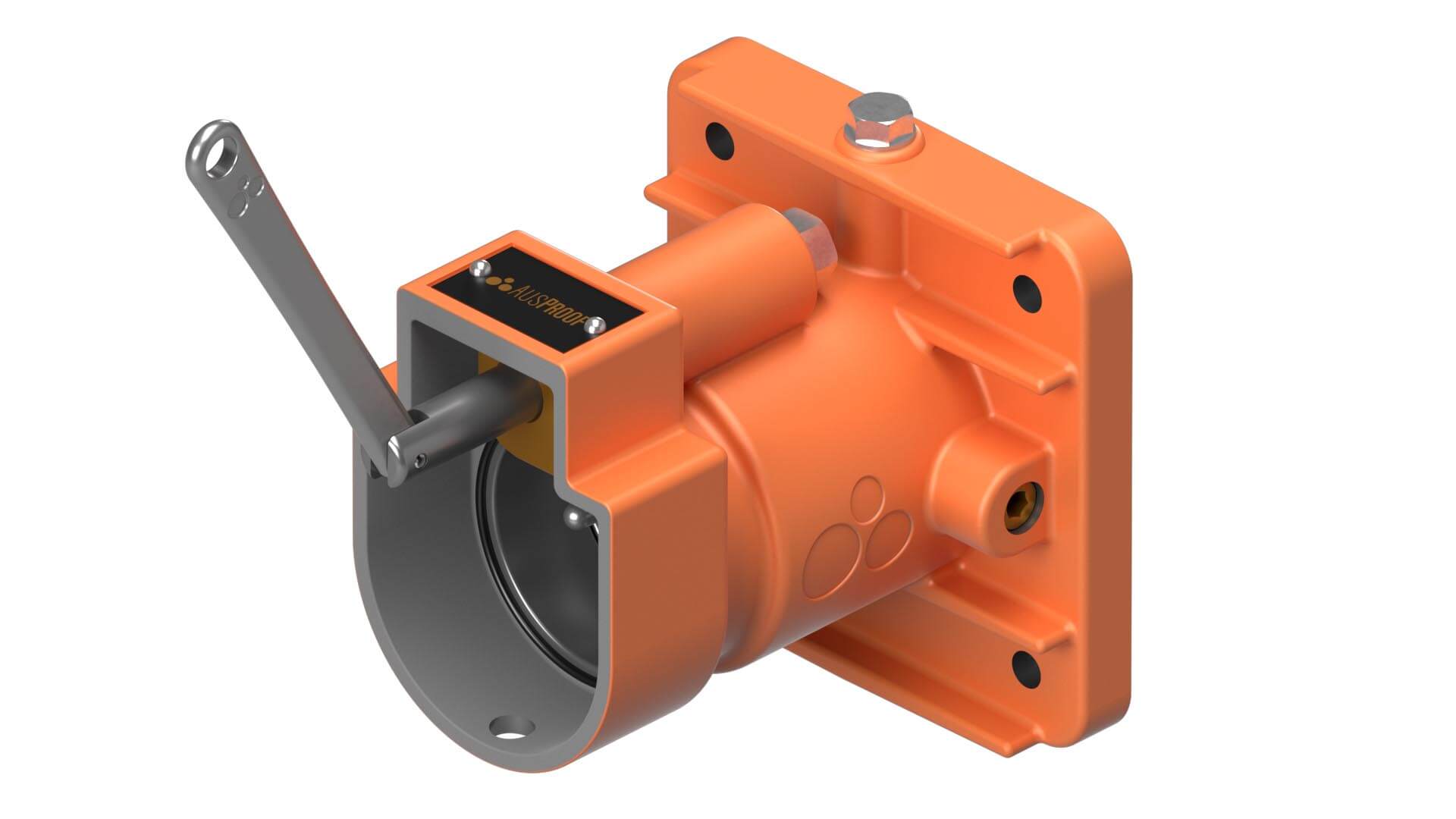

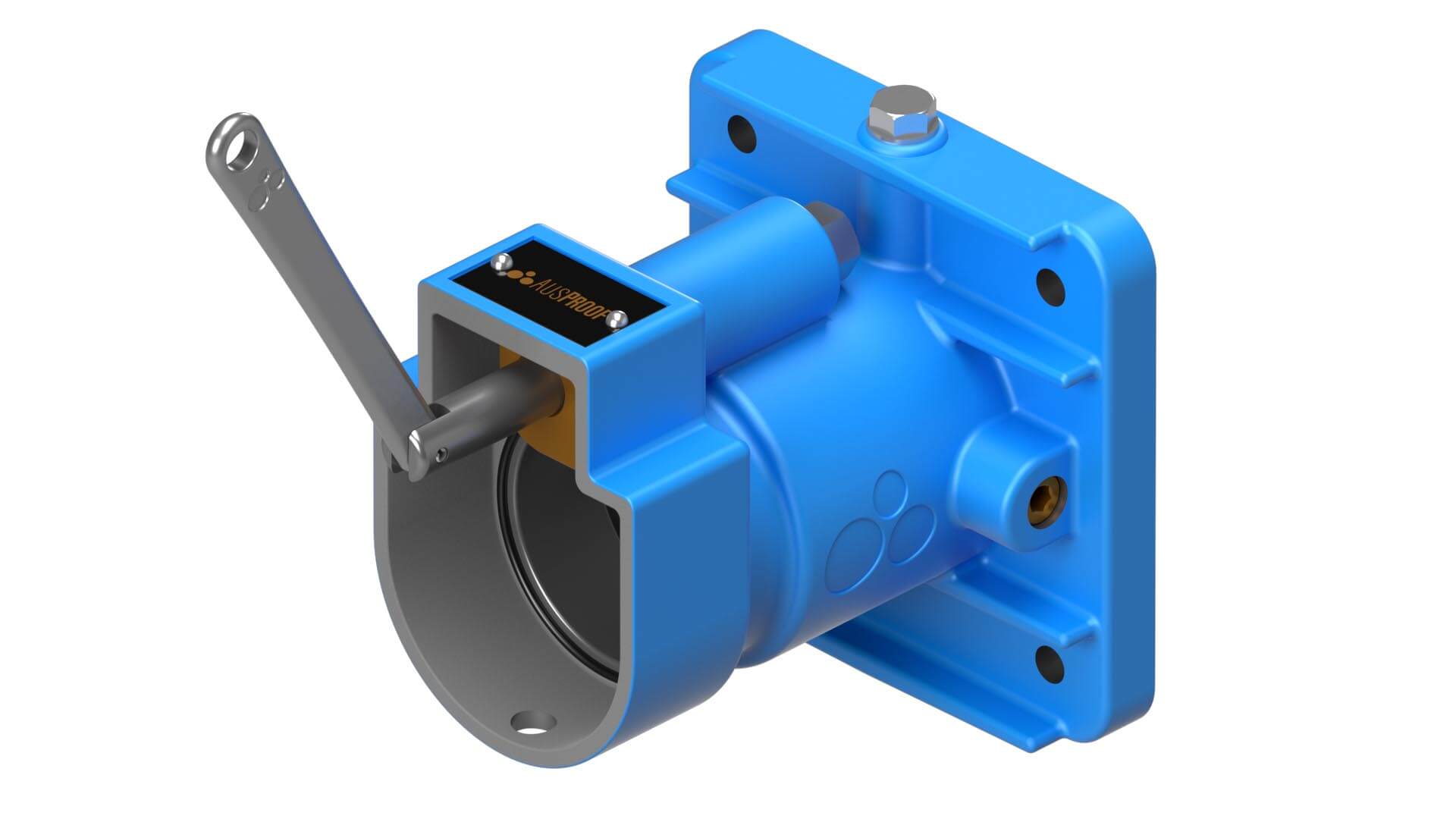

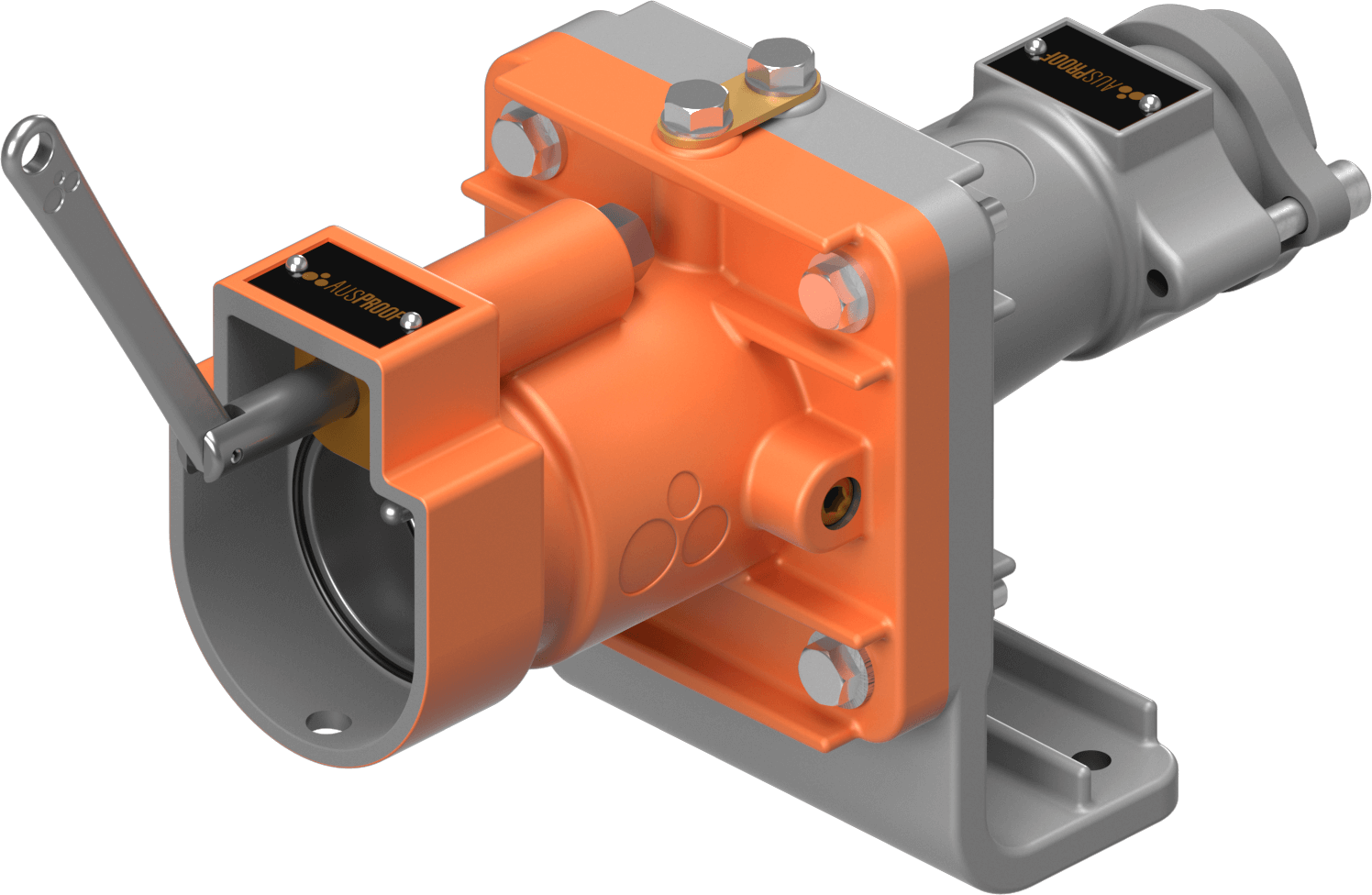

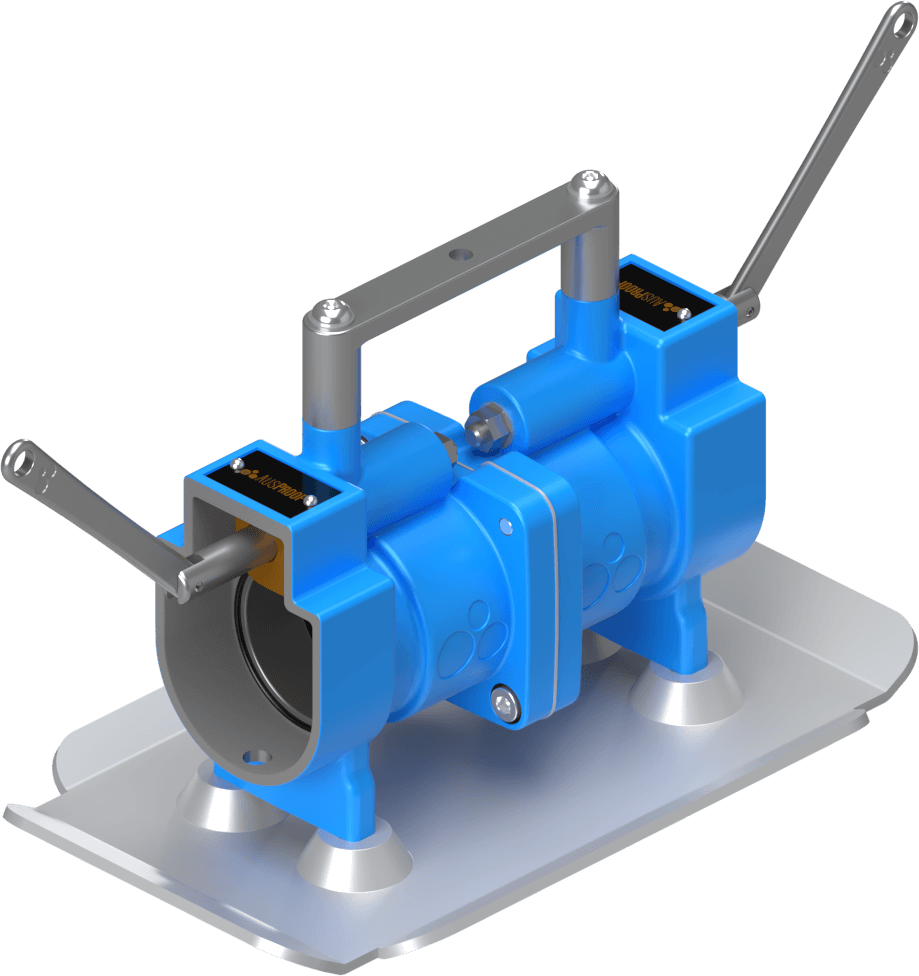

Ex-certified and suitable for use in mining, tunnelling and commercial applications, including Group 1 hazardous environments, the PES Range is now available with Back-to-Back (B2B) and Receptacle Gland Bracket (RGB) assemblies.

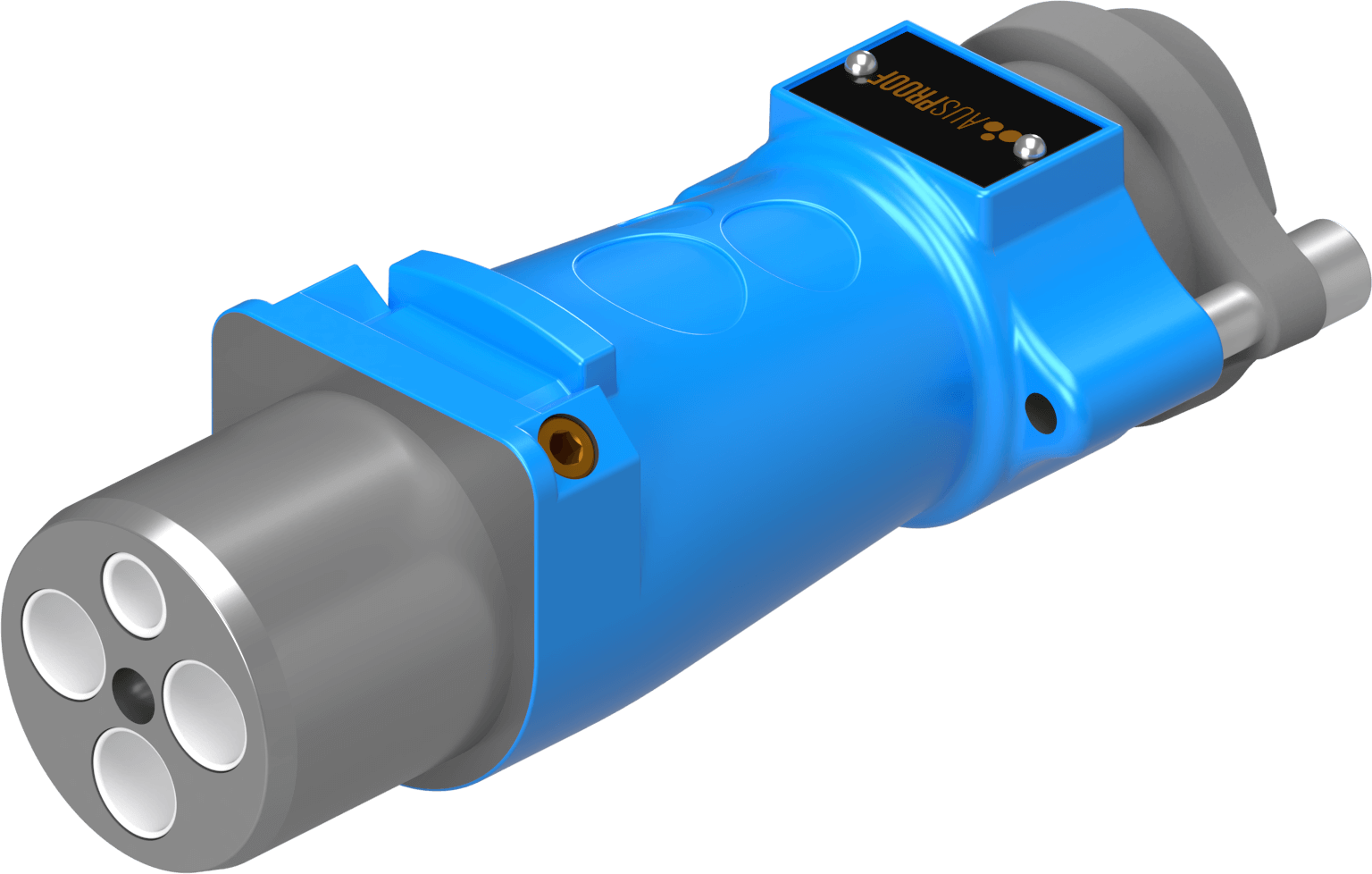

With operating voltages of 660V and 1,100V, when released the PES was the first of its kind on the Australian market, offering a range of 60A products designed to withstand 90A. Both options are fully compatible with each other, with black stripes used for easy identification of 90A products. Plugs and receptacles rated to 60A are compliant to AS/NZS1299, while those rated to 90A are not only compliant to AS/NZS1299 but exceed it.

In the event of flamepath damage, the barrel of PES plugs can be replaced on-site, even underground, with no specialised training or cable termination required. The replaceable barrel can also be ordered separately and kept in stock on-site. Receptacles in this range feature the Jack-In Release option.

Contact Us

  • Features

    • A single solid earth body
    • Single piece contacts to prevent hot joints
    • Easy termination
    • Easy flameproof repair
    • Full solid earth connectivity throughout product
    • Full phase to phase segregation with earth
    • Lightest Ex product on the market

  • Accessories

    • Silicone protection cover
    • Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Technical Information

  • Specs

    Volts 660-1,100
    Amps Ex 60 Amp; Non Ex 90 Amp
    Receptacle Weight (KG) 5.0KG
    Plug Weight (KG) 2.6KG
    Material Grade 304 Stainless Steel

    Downloads

    Product Dimensions
    Product Solids

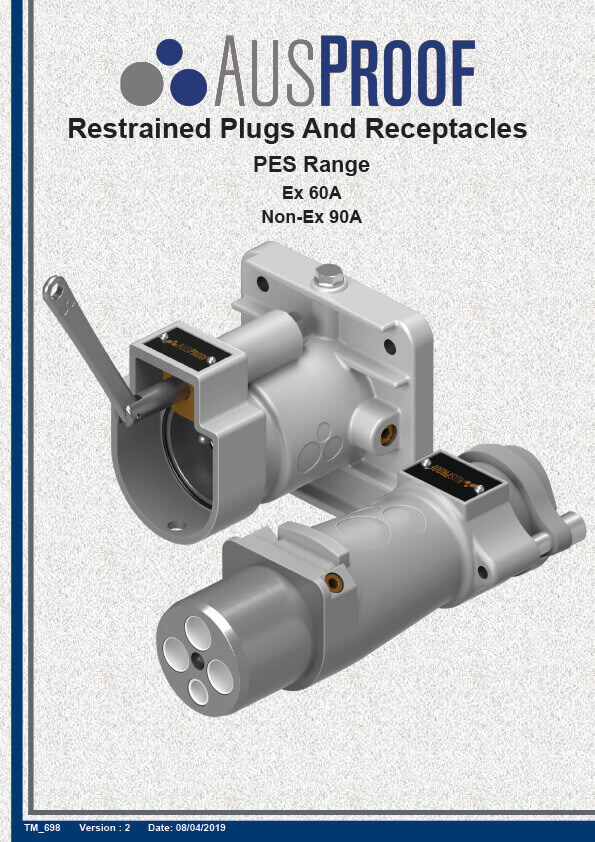

    Technical Manual
    660-1100V / 60A / 4 Pin Pilot + Pin Contact Connections Lengths

  • Test Results

    Compliant to AS/NZS 1299, IEC 60079-0, IEC 60079-1
    Through Fault Current (Phase) 2 Tests of 3.2kA for 0.2 seconds
    Through Fault Current (Earth) 2 Tests of 1.0kA for 0.2 seconds
    AC HV Withstand (Phase) 4.2kV for one minute
    AC HV Withstand (Pilot) 1.0kV for one minute
    Temperature Rise 60A and 90A
    Ingress Protection IP55
    Impulse Voltage N/A
    Partial Discharge N/A
