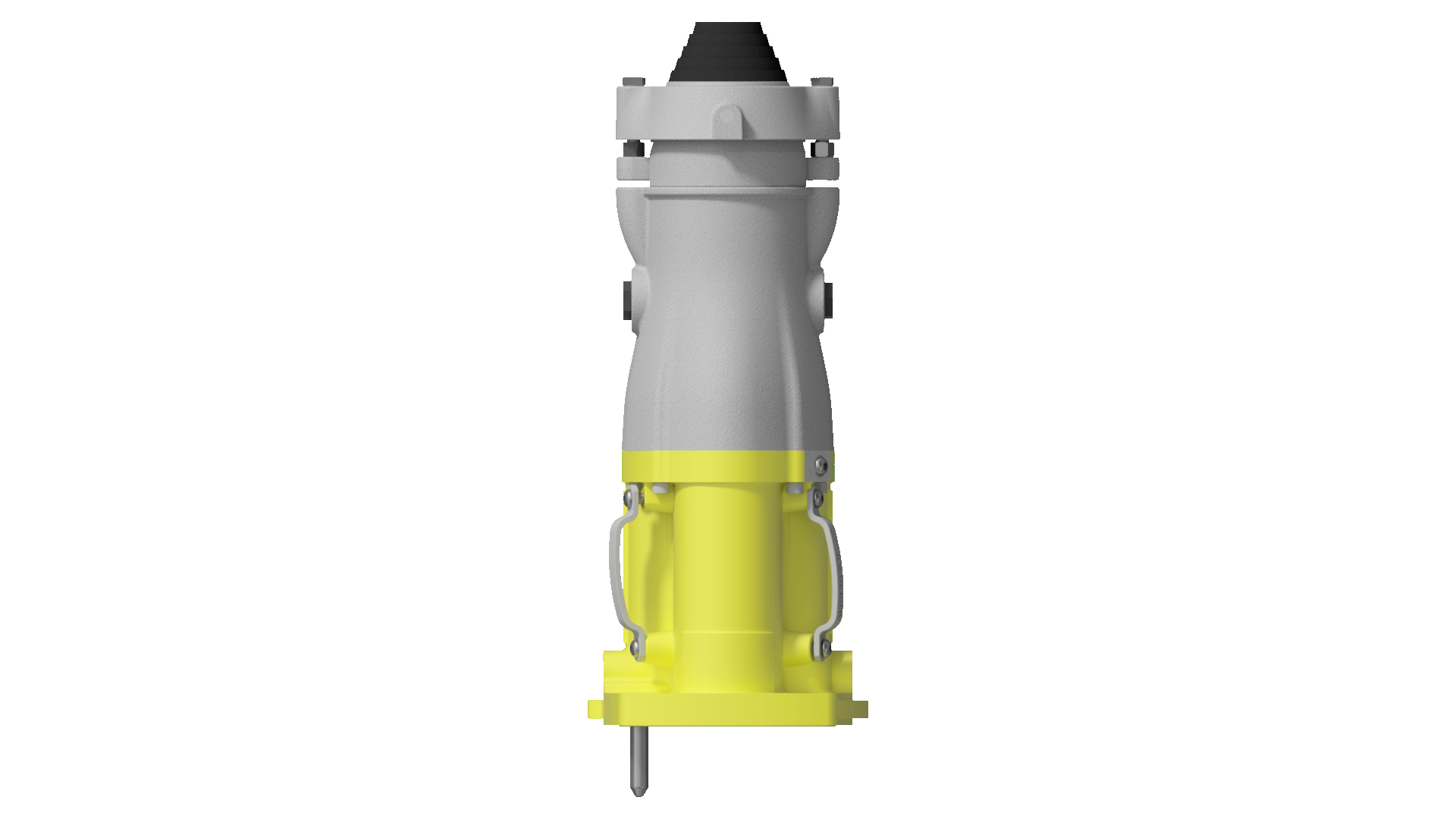

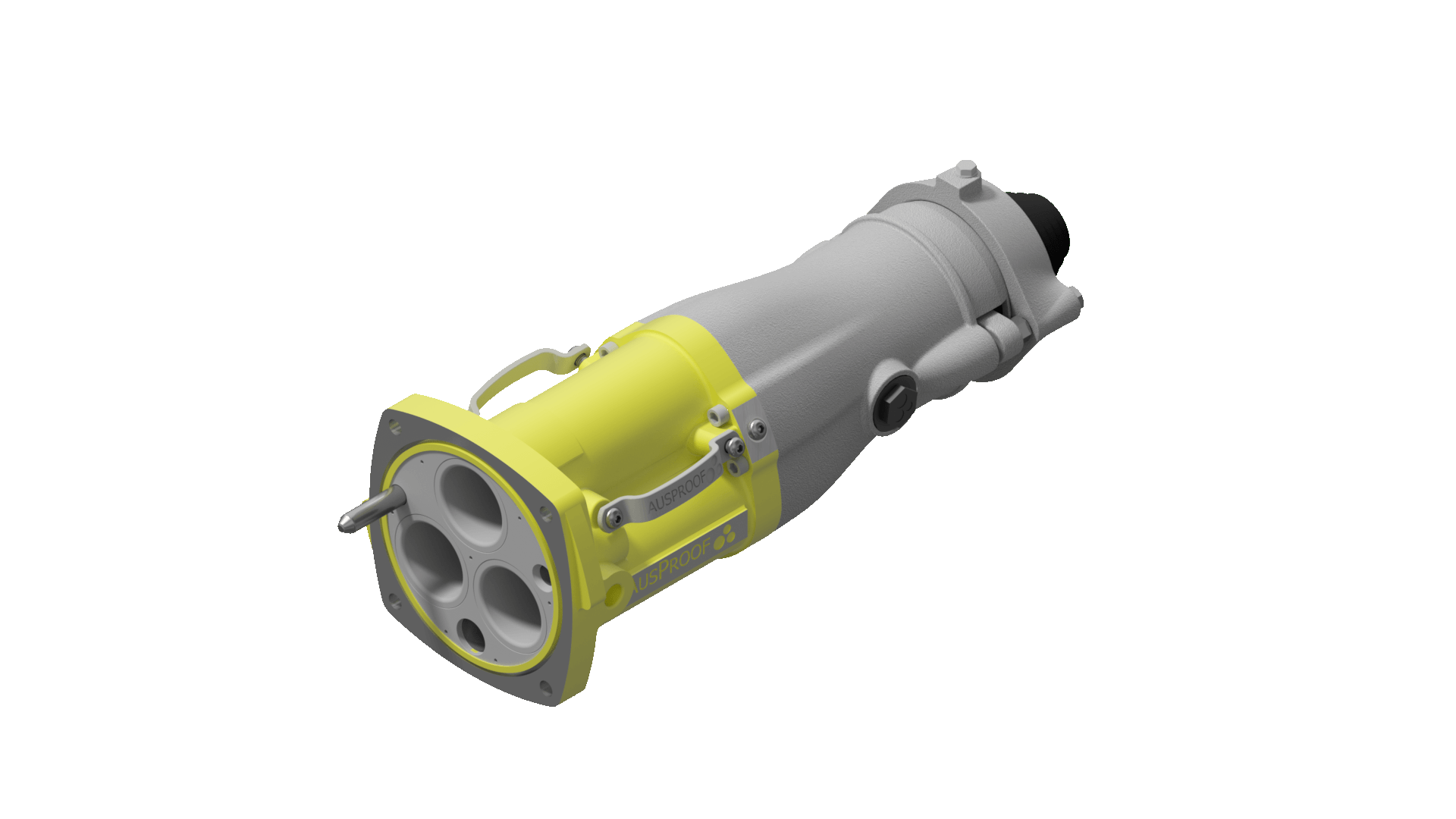

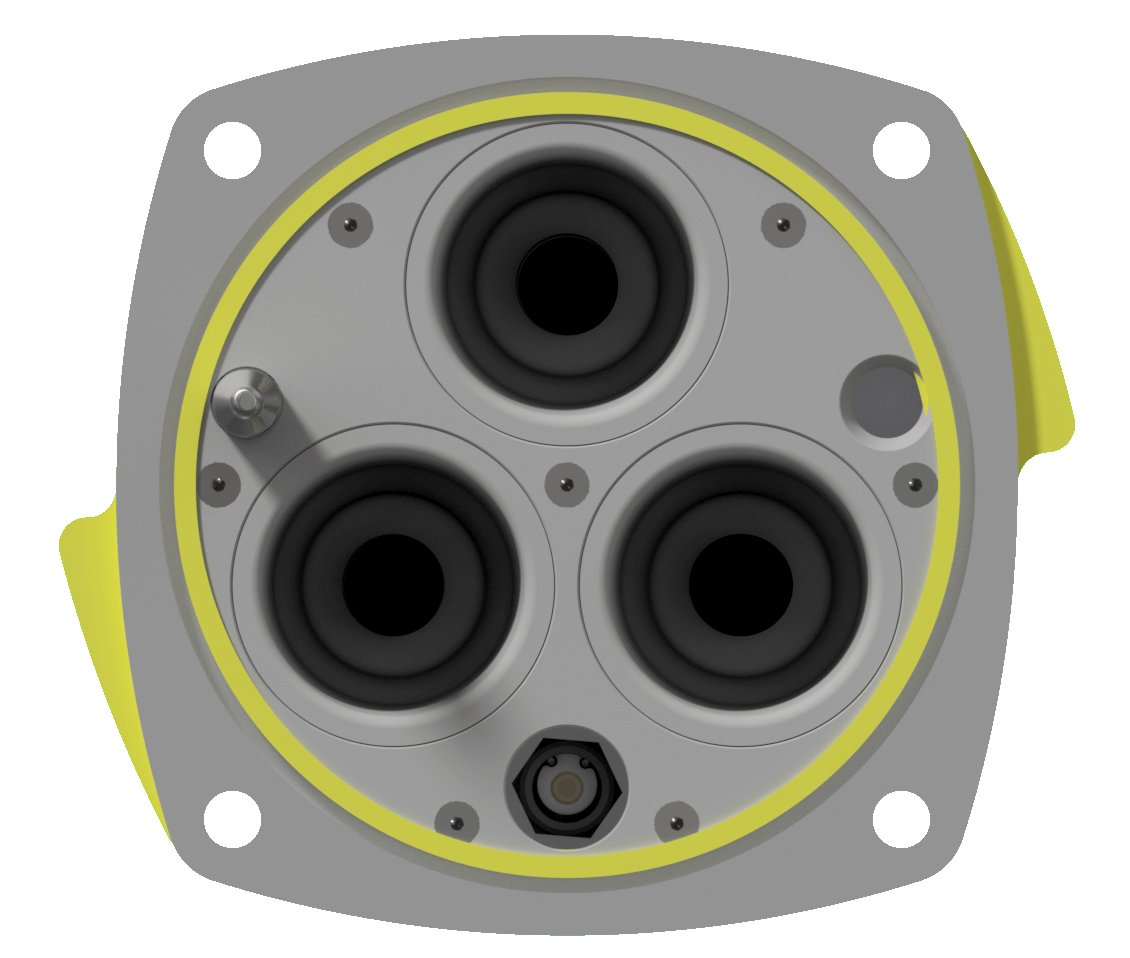

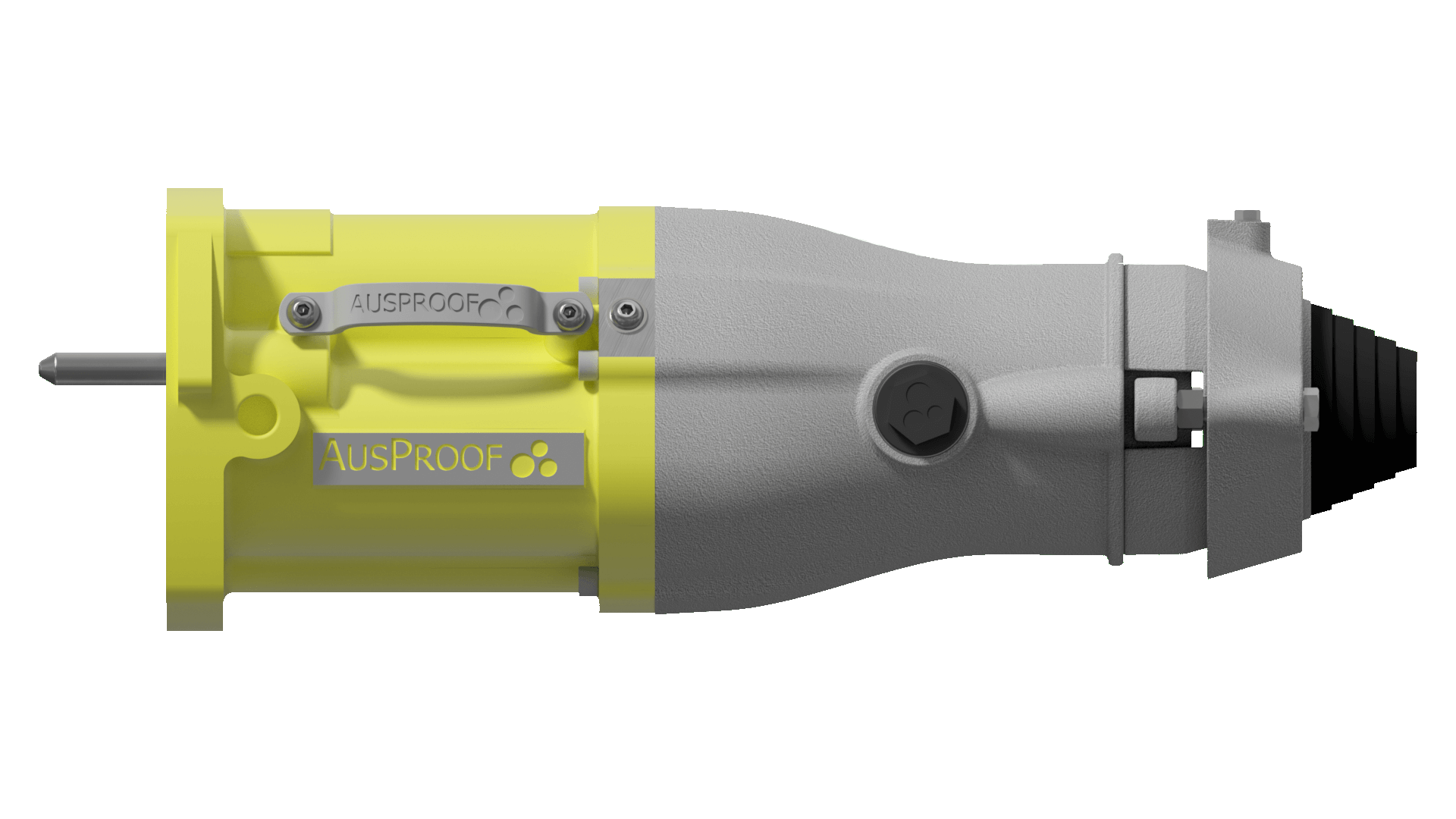

64BKA | Aluminium High Voltage Open-Cut Coupler
Rated for 800 amps with an operating voltage of 6,600 volts, the 64BKA has an ingress protection rating of IP68, far exceeding the required Australian standard of IP55.
Suitable for use in Non-Ex operational environments, such as open-cut and metalliferous mining, pumps and tunnelling projects, the design of the 64BKA was inspired by AusProof’s aluminium 11kV 4-bolt coupler. The intention was to create a smaller and lighter 4-bolt coupler for the reduced operating voltage of 6,600 volts. Its design also allows for the guide pin to be enclosed within the body of the casting upon closure of the coupler system, protecting the pin from external damage.
-
Features
- IP68 rating
- LED Live Line Indicator
- Solid face and body casting
- Silicone Phase Connectors
- Higher mPa Aluminium material
- Enclosed guide pin
- Earth Pilot Connector
- Handles
- All air expelled on joining
- Silicone seal for face
- Full phase to phase segregation with earth
- Arc extinguishing Phase Insulators
- Genderless design
-
Accessories
- Adaptor – Gear Mount
- Silicone Phase Connectors
- Cast Protection Cover
- Crimp Contacts
- Gland – Armoured
- Gland – Unarmoured
- Insulated End Cover
- Slide Hammer
- Coupling Tool
- CAT Skid
Technical Information
-
Specs
Volts 6,600 Amp 800 LOA (mm) 640 Weight (KG) 17.5 Material Aluminium Volume (Litres) 3.1 -
Test Results
Referenced to AS/NZS 1300, AS/NZS 1299, C22.2 No 298, AS/NZS 1802, AS/NZS 2802 and IEEE 404 Through Fault Current (Phase) 3 Tests of 20.0kA for 0.2 second
1 Test of 20.0kA for 1.0 secondThrough Fault Current (Earth) 1 test of 5.01kA for 9.0 seconds AC HV Withstand (Phase) 15.0kV for one minute AC HV Withstand (Pilot) 1.0kV for one minute Temperature Rise 800 amp Ingress Protection IP68 Impulse Voltage 75kV
95kVPartial Discharge < 1 pc
