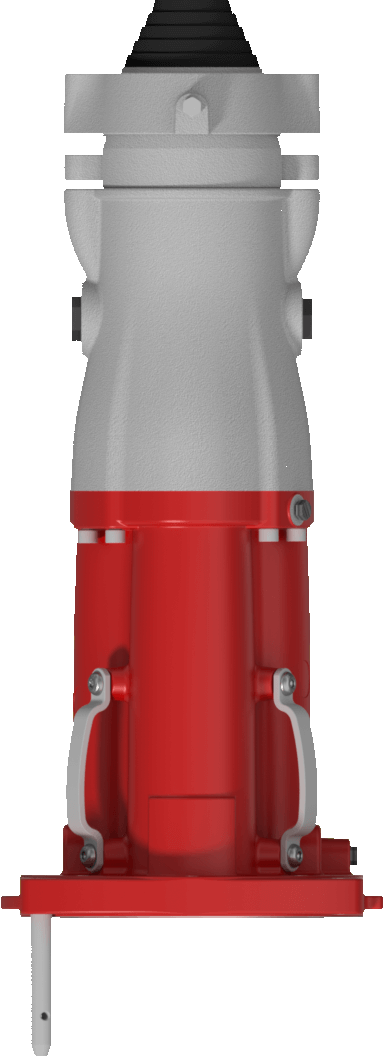

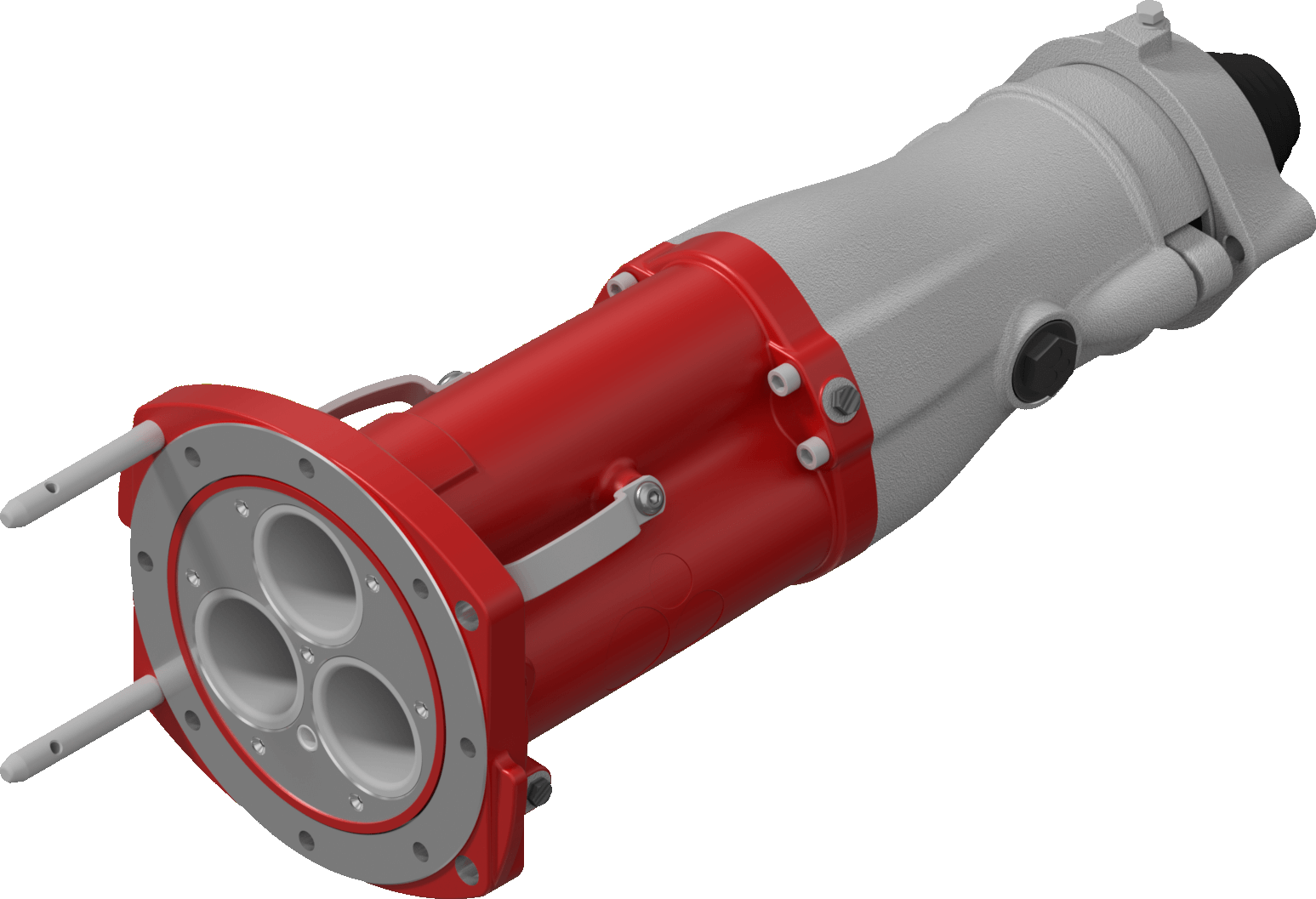

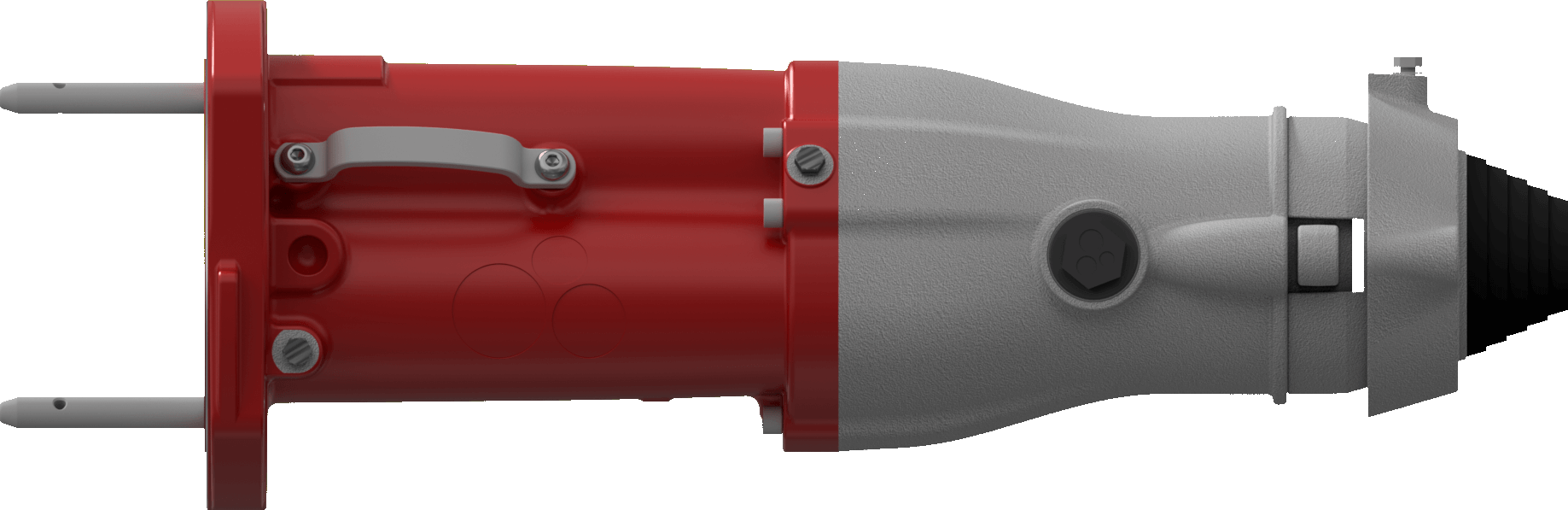

118BKA | Aluminium High Voltage Open-Cut Coupler

The 118BKA is rated for 800 amps with an operational voltage of 11,000 volts and features an ingress protection rating of IP68, far exceeding the Australian standard of IP55.

The 118BKA is designed for use in Non-Ex operational environments, such as open-cut and metalliferous mining, and pumps and tunnelling projects. Released in 1995, this coupler was the first design released to the Australian market that featured full phase to phase segregation with earth. The design of the 118BKA is based on AS/NZS1300 compliance, requiring the use of eight bolts to join two couplers and close the system.

Contact Us

  • Features

    • IP68 rating
    • LED Live Line Indicator
    • Solid face and body casting
    • Silicone Phase Connectors
    • Higher mPa Aluminium material
    • Handles
    • All air expelled on joining
    • Silicone seal for face

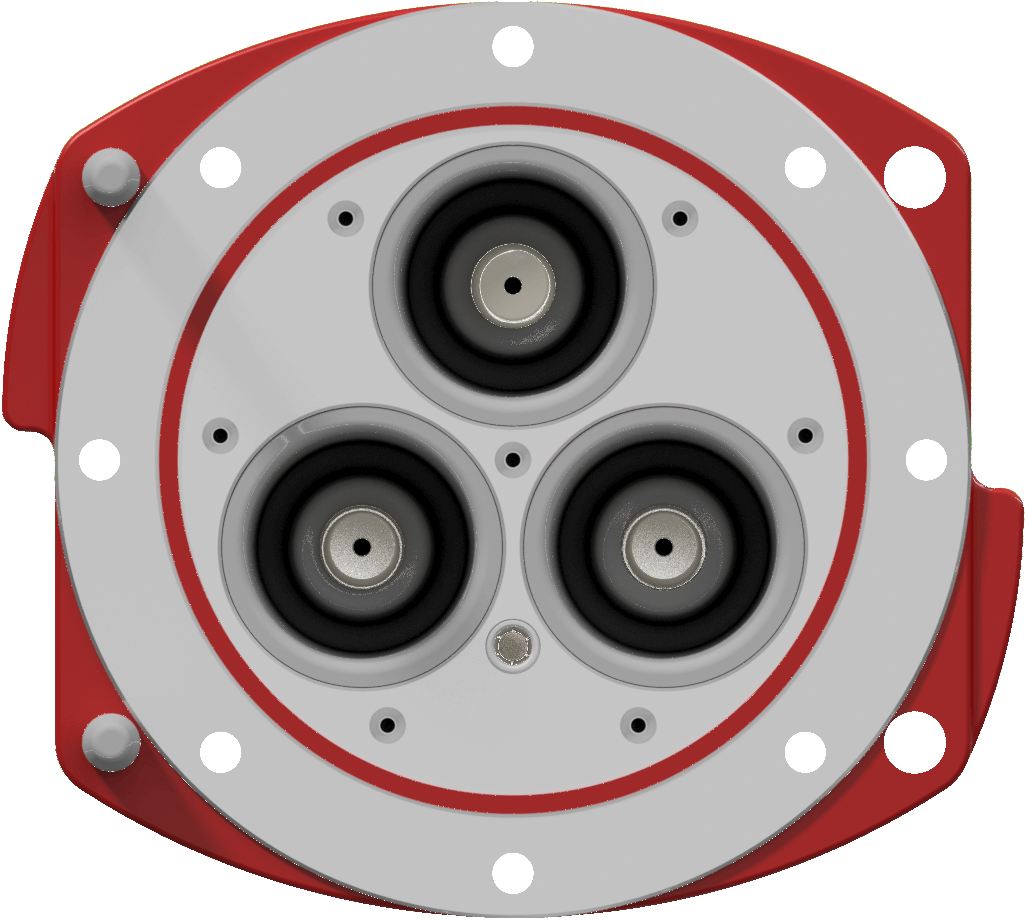

    • Full phase to phase segregation with earth
    • Arc extinguishing Phase Insulators
    • Genderless design
  • Accessories

    • Adaptor – Gear Mount
    • Silicone Phase Connectors
    • Cast Protection Cover
    • Crimp Contacts
    • Gland – Armoured
    • Gland – Unarmoured
    • Insulated End Cover
    • Slide Hammer
    • Coupling Tool
    • CAT Skid

Technical Information

  • Specs

    Volts 11,000
    Amp 800
    LOA (mm) 690
    Weight (KG) 18.5
    Material Aluminium
    Volume (Litres) 4.0

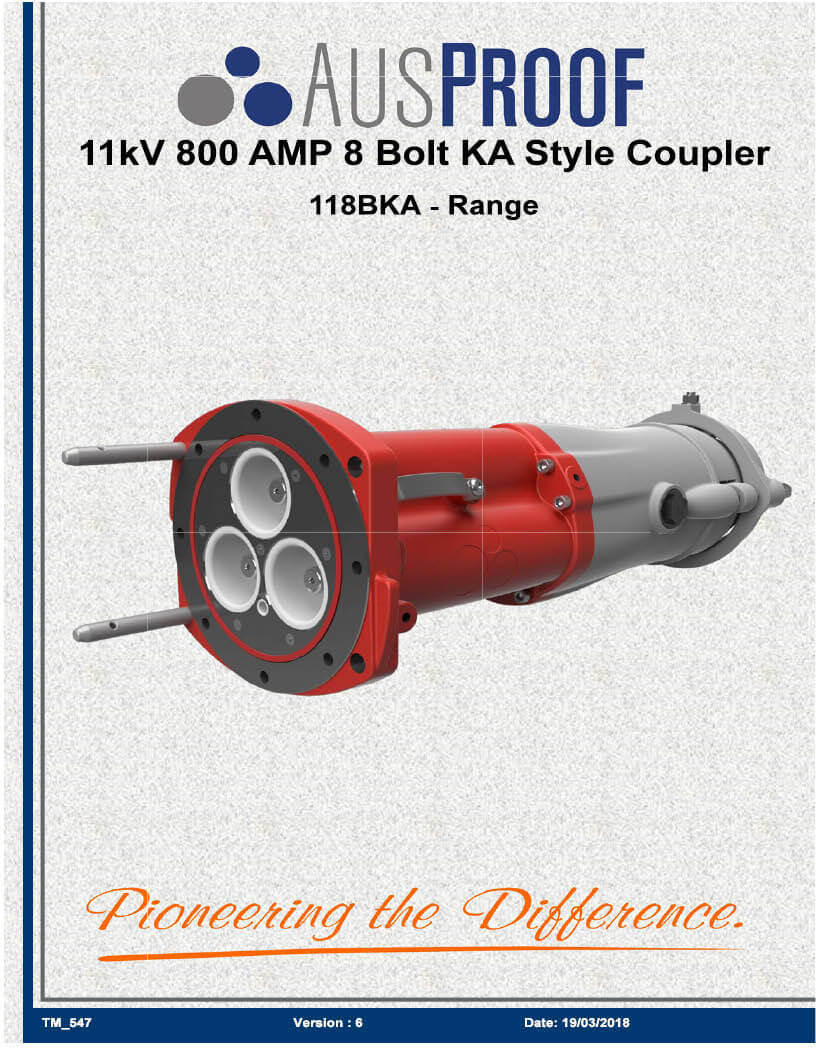

    Download Technical Manual

    Download Product Dimensions

    Download Product Solids

  • Test Results

    Referenced to AS/NZS 1300:2009
    Through Fault Current at 10 minute intervals 3 Tests of 20kA for 0.3 second
    1 Test of 20kA for 1.0 second
    AC HV Withstand 24kV for one minute
    Temperature Rise 800 amp for 5 hours with stable temperature within percentage of ambient temperature
    Ingress Protection IP68
