AES Range | Aluminium Restrained Range Plugs and Receptacles

The aluminium range of AES restrained plugs and receptacles provides an alternative low voltage option for non-hazardous environments.

The AES aluminium restrained range covers 60 – 90 amp, with phase rotation to give 660 or 1100 volts.

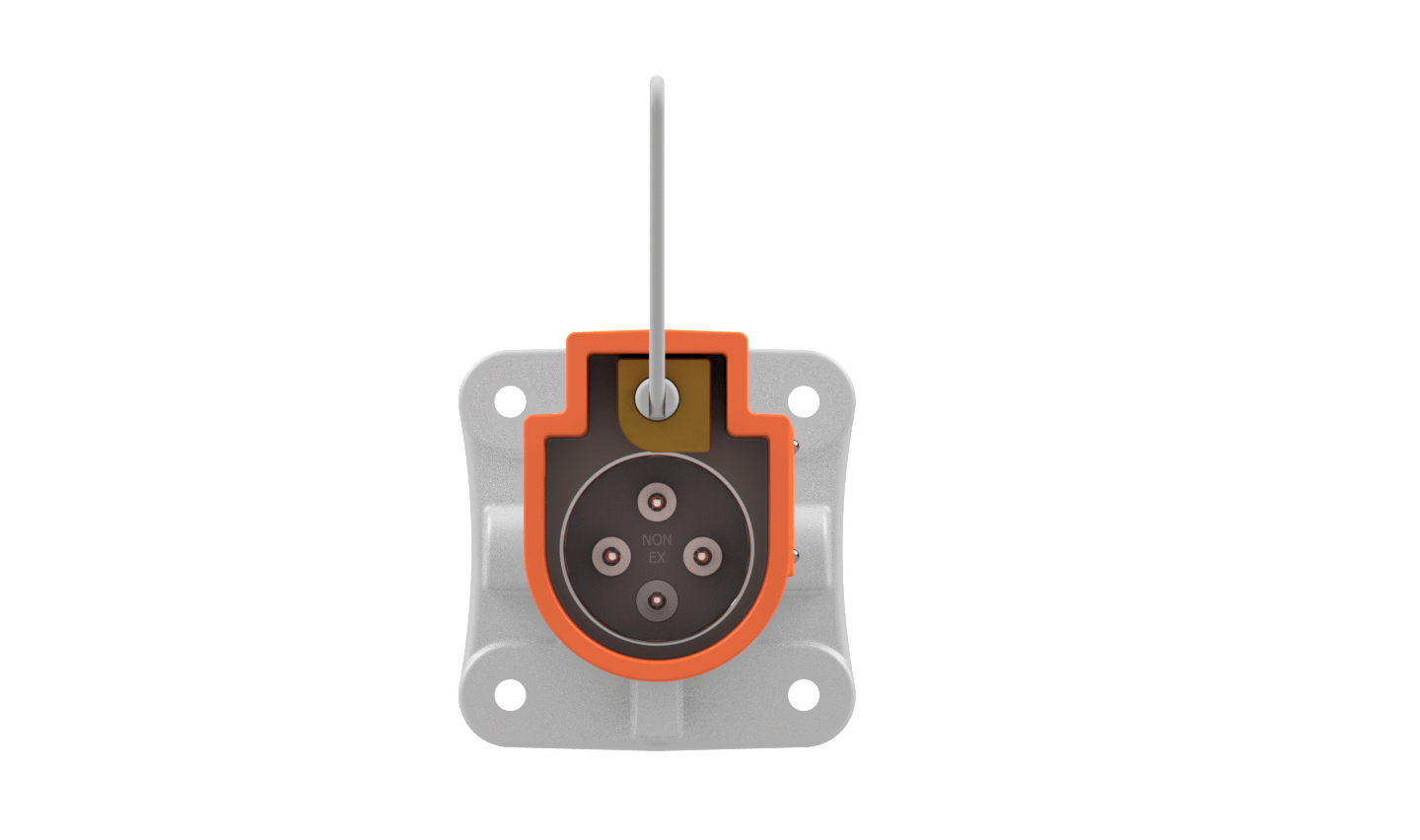

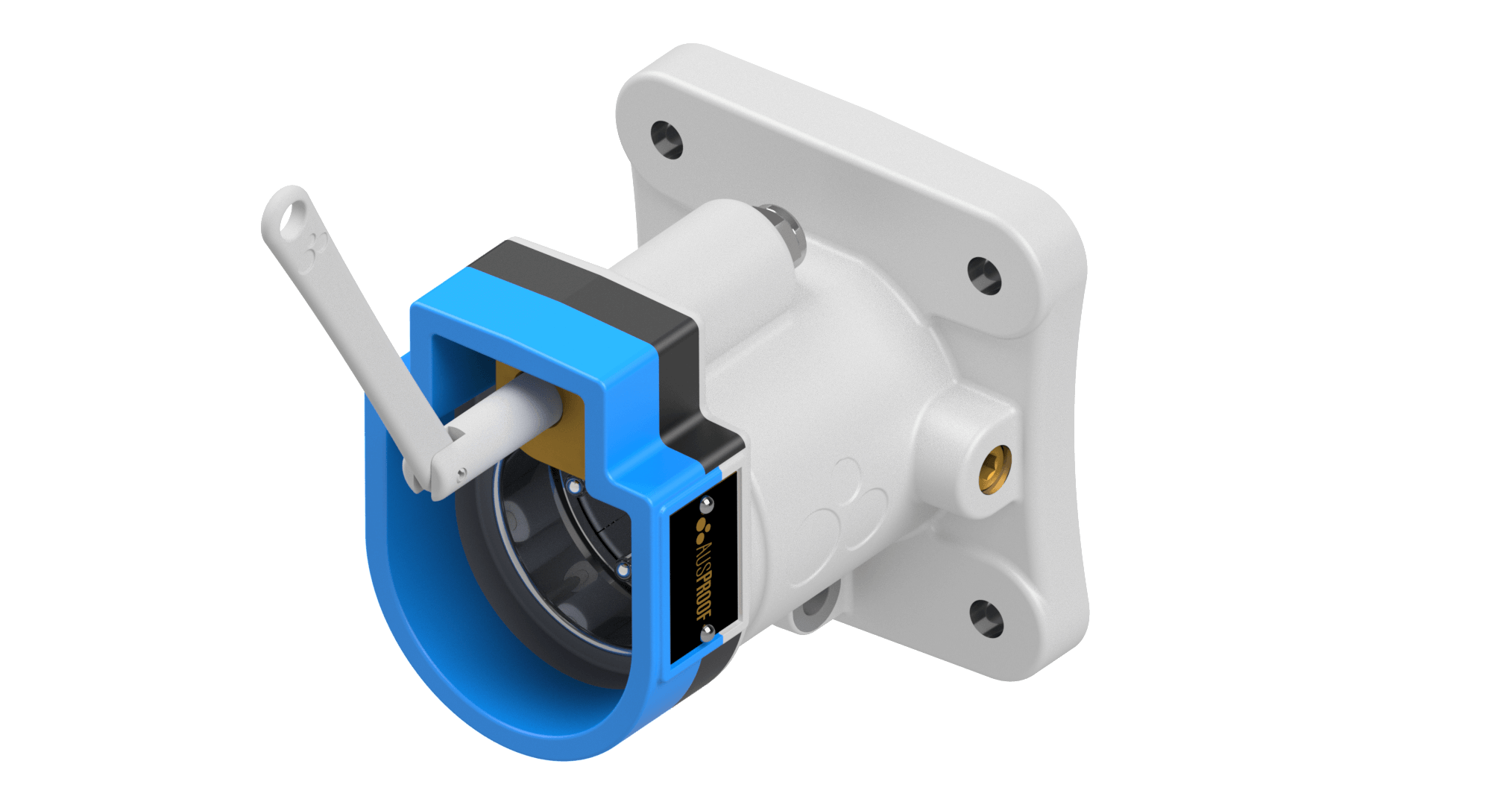

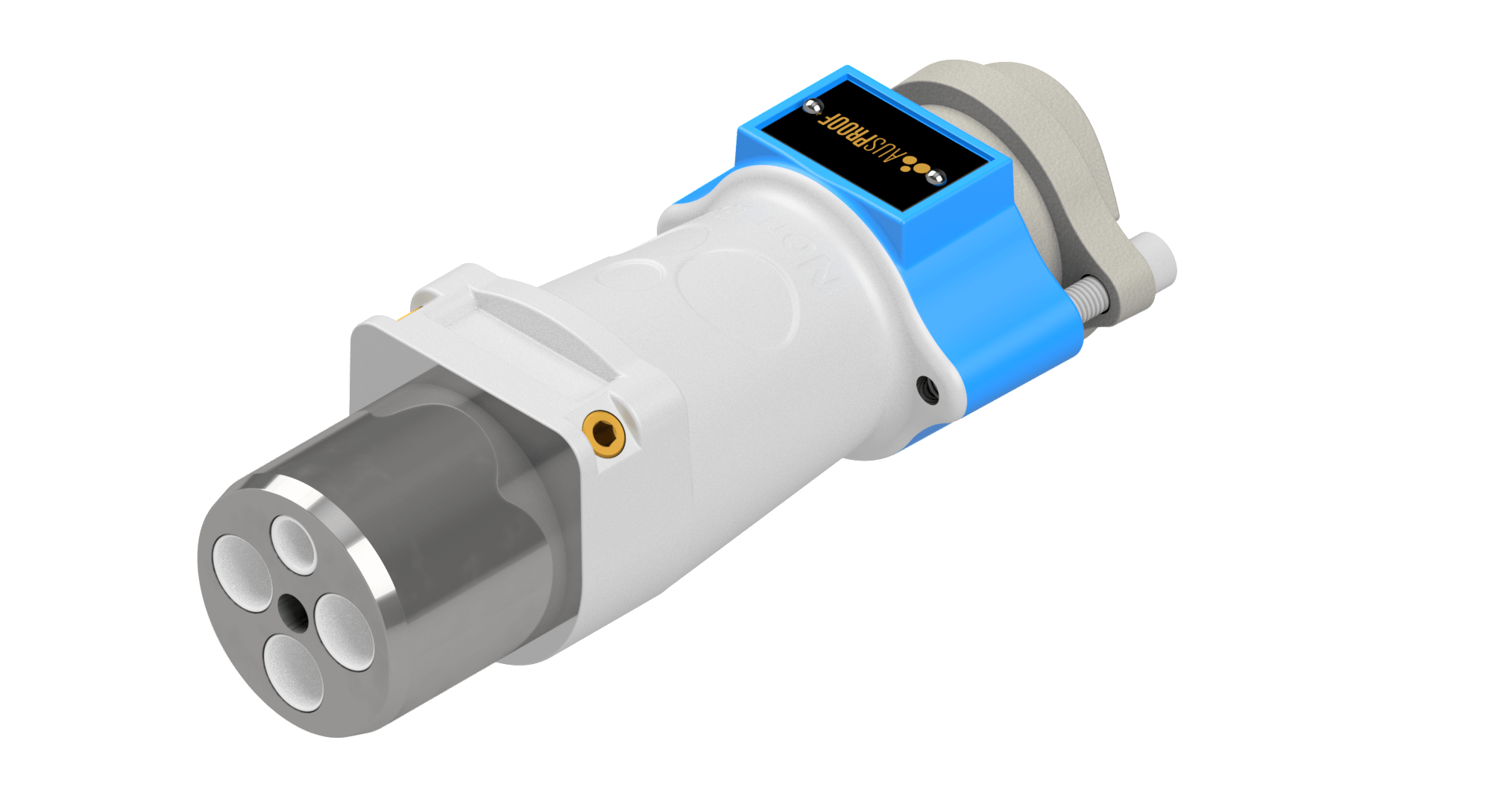

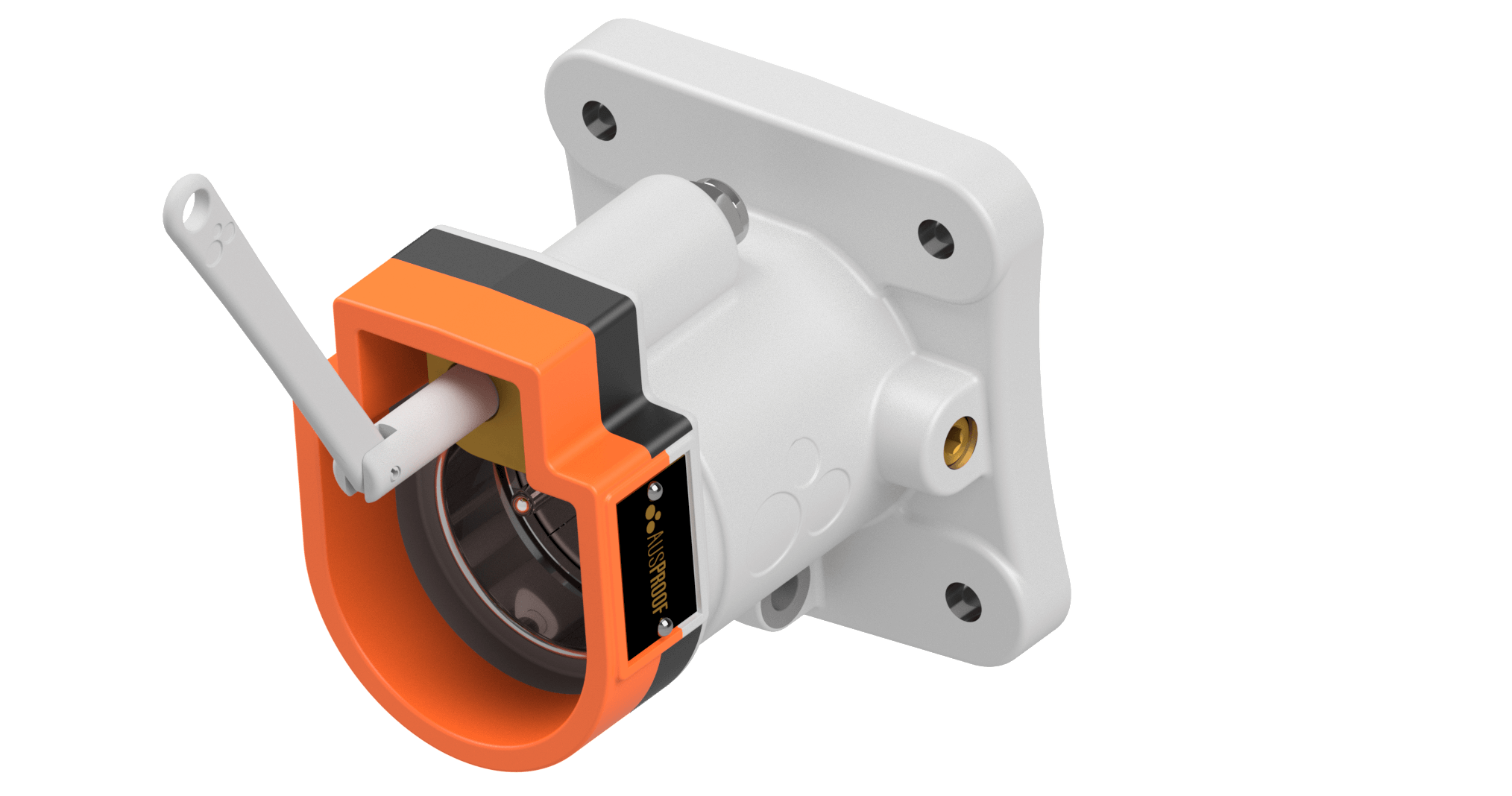

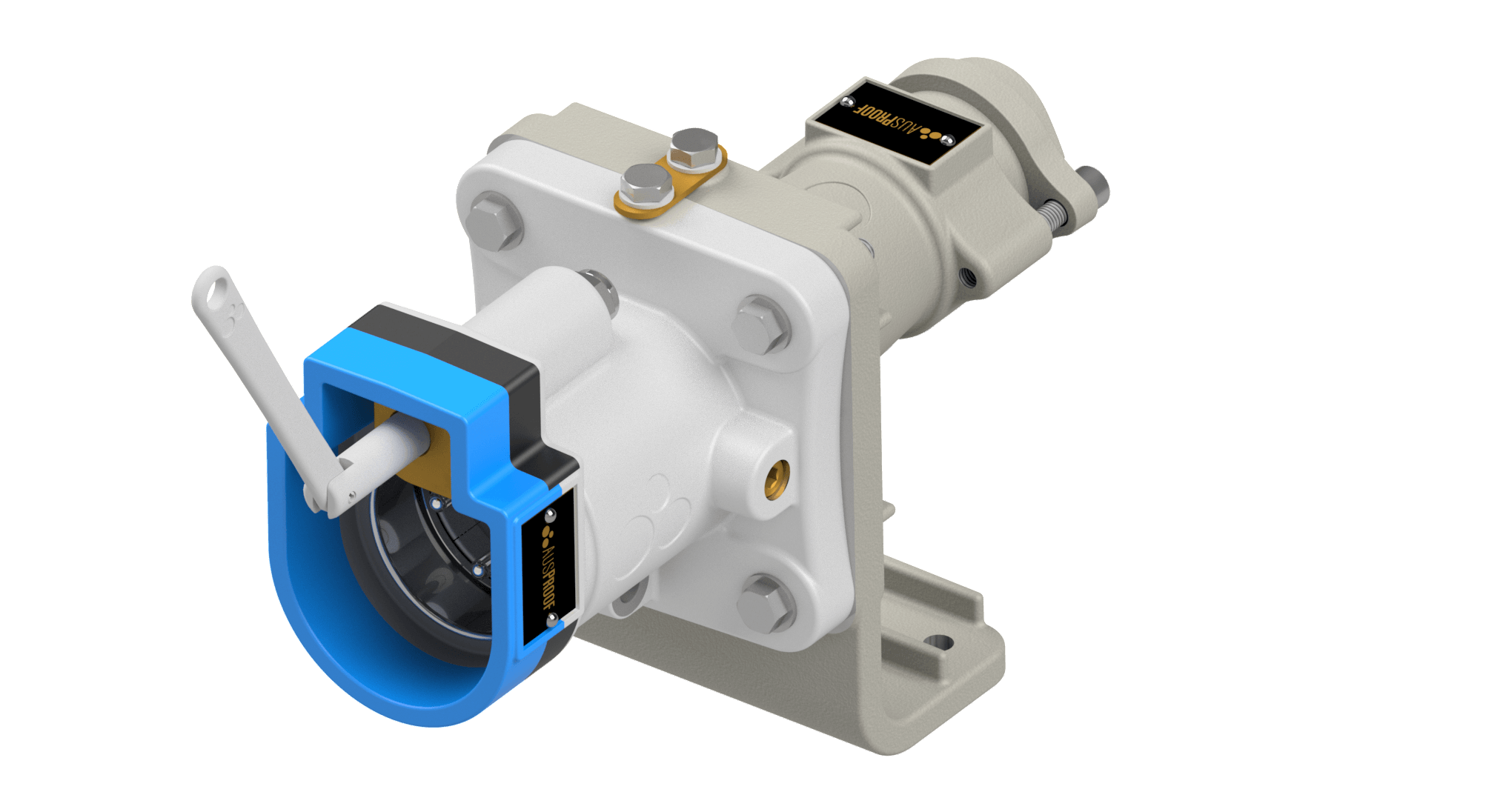

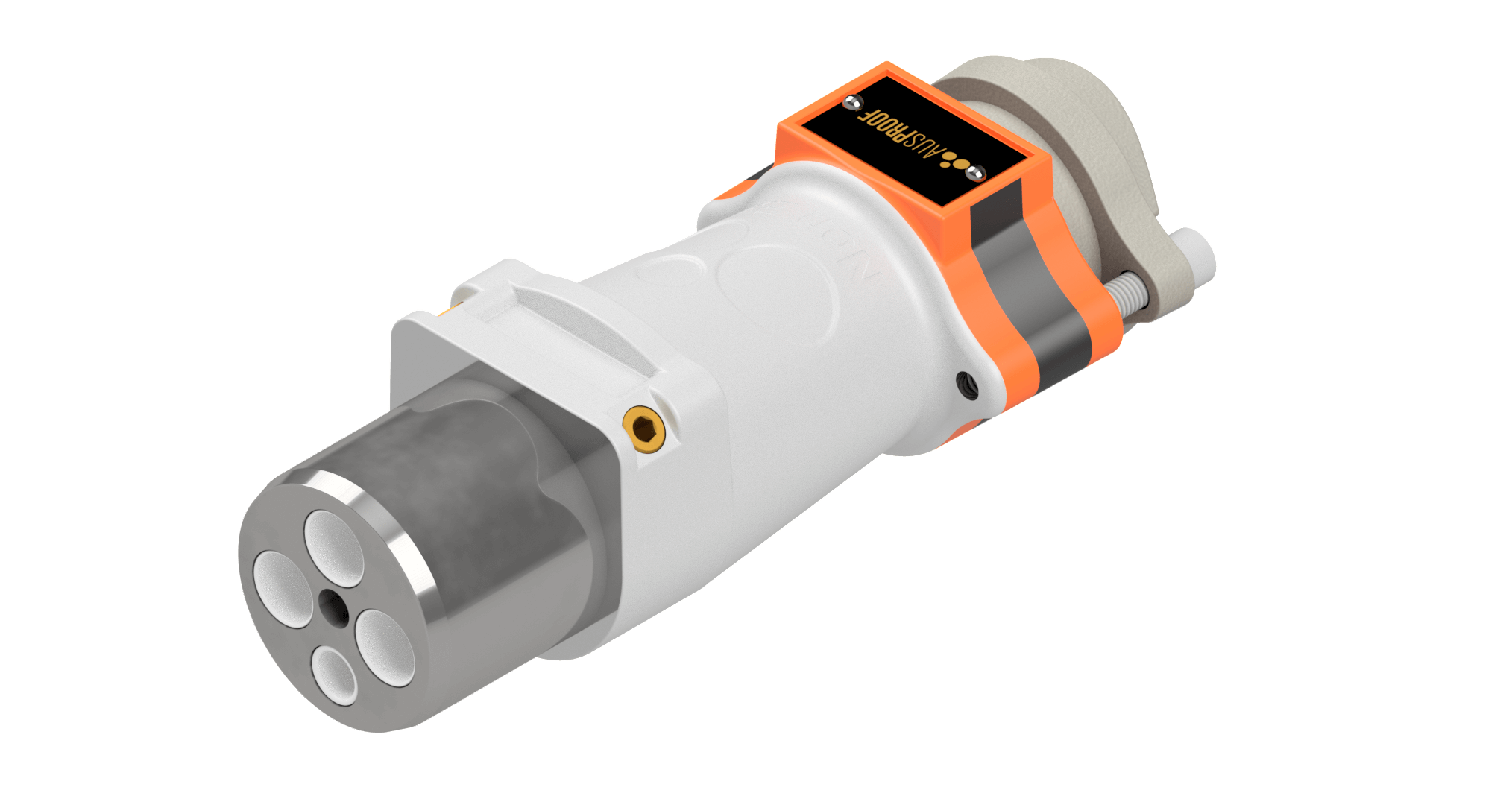

The aluminium range of plugs and receptacles is suitable for use in non-ex mining, tunnelling and commercial applications. Additional features include one piece contacts and an easy to remove out body, making it easier to maintain and ensures continued reliability.

AusProof’s research and development department have been finalising and revolutionising the 60 amp plug and receptacle currently available in the market, ultimately creating a 90 amp range, the first of it’s kind in Australia.

The aluminium range is designed to be easily identified, with a white casting and colour bands resembling the volts and amps. Additionally, there is ‘Non-Ex’ labels and laser marks on components.

Offering a significantly lighter option, the plug is 560 grams lighter, while the receptacle is 2.36kg lighter than the stainless steel option.

The range also includes a durable silicon cover the plugs and an O-ring sealed bung for the receptacles.

Contact us

  • Features

    • A single solid earth body
    • Single piece contacts
    • Easy termination
    • Full solid earth connectivity throughout product
    • Phase to earth segregation
    • Lightest product on the market
  • Accessories

    • Silicone protection cover
    • Insulated End Cover

Technical Information

  • Specs

    Volts 660-1,100
    Amp 60-90
    Receptacle Weight (KG) 2.64kg
    Plug Weight (KG) 2.04kg
    Material Aluminium and Stainless Steel



    AES Aluminium Restrained Range Cover

















    Download Technical Manual



  • Test Results

    AC HV Withstand 3.32kV – 4.2kV for 1 minute
    Compliant to: AS/NZS 1299:2009
    Through Fault Current at 10 minute intervals 3.2kA for 0.2 seconds
    3.2kA for 0.2 seconds
    Temperature Rise 60A and 90A
