AS (Aluminium Small) Range | Restrained Plugs and Receptacles

The AS Range of Non-Ex plugs and receptacles provides an alternative low voltage option, suitable for use in Non-Ex mining, tunnelling and pumping projects.

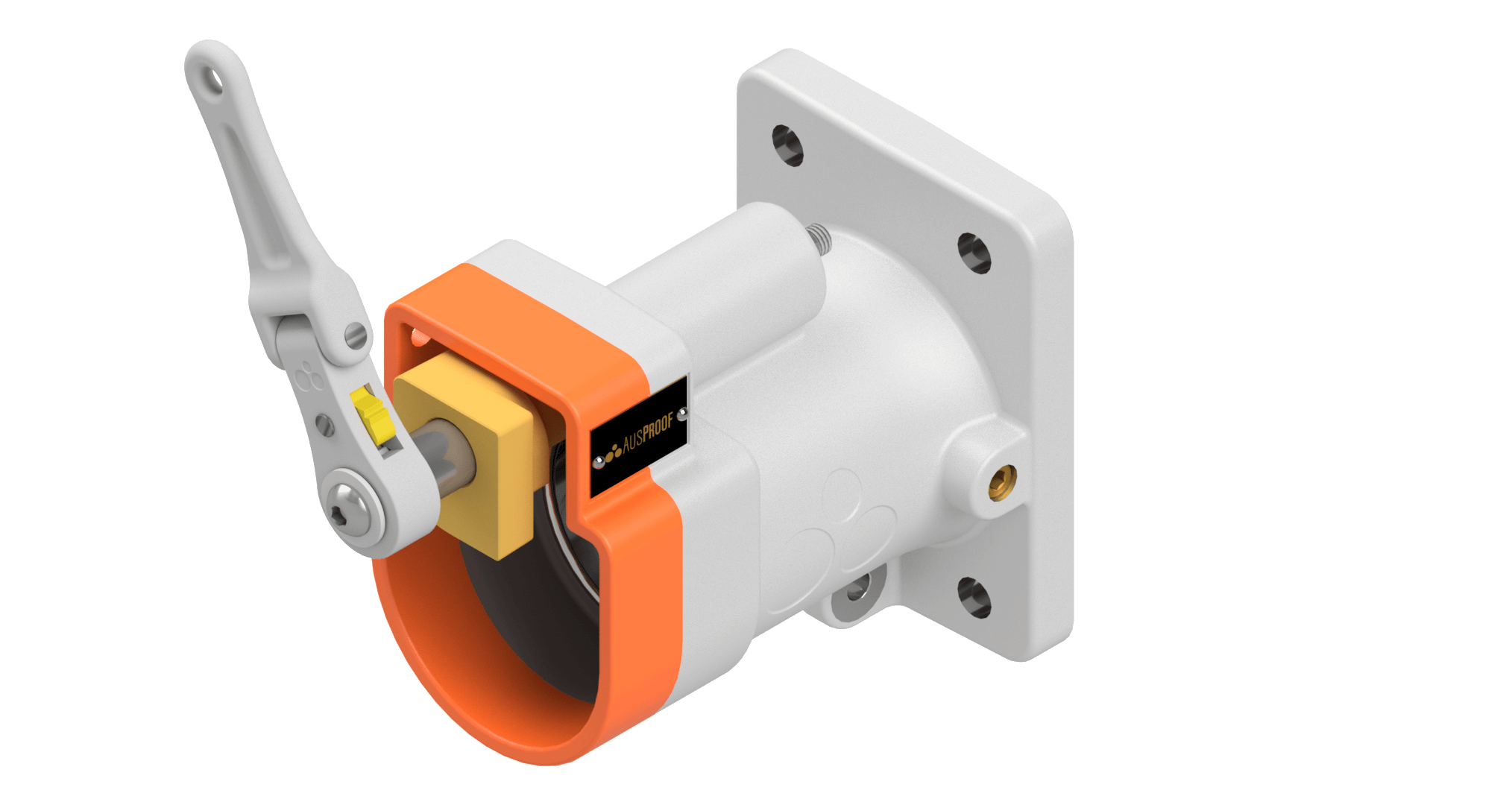

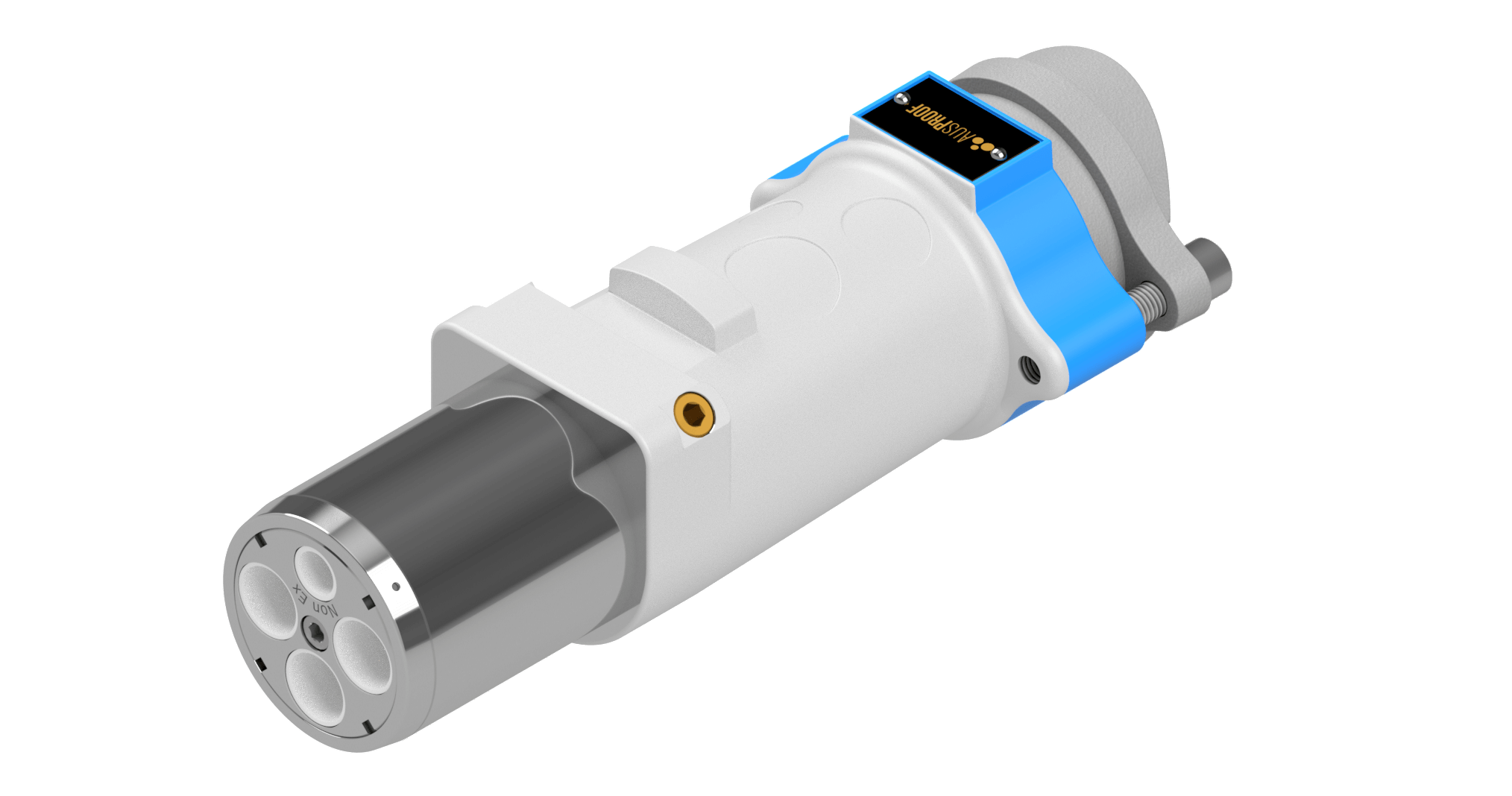

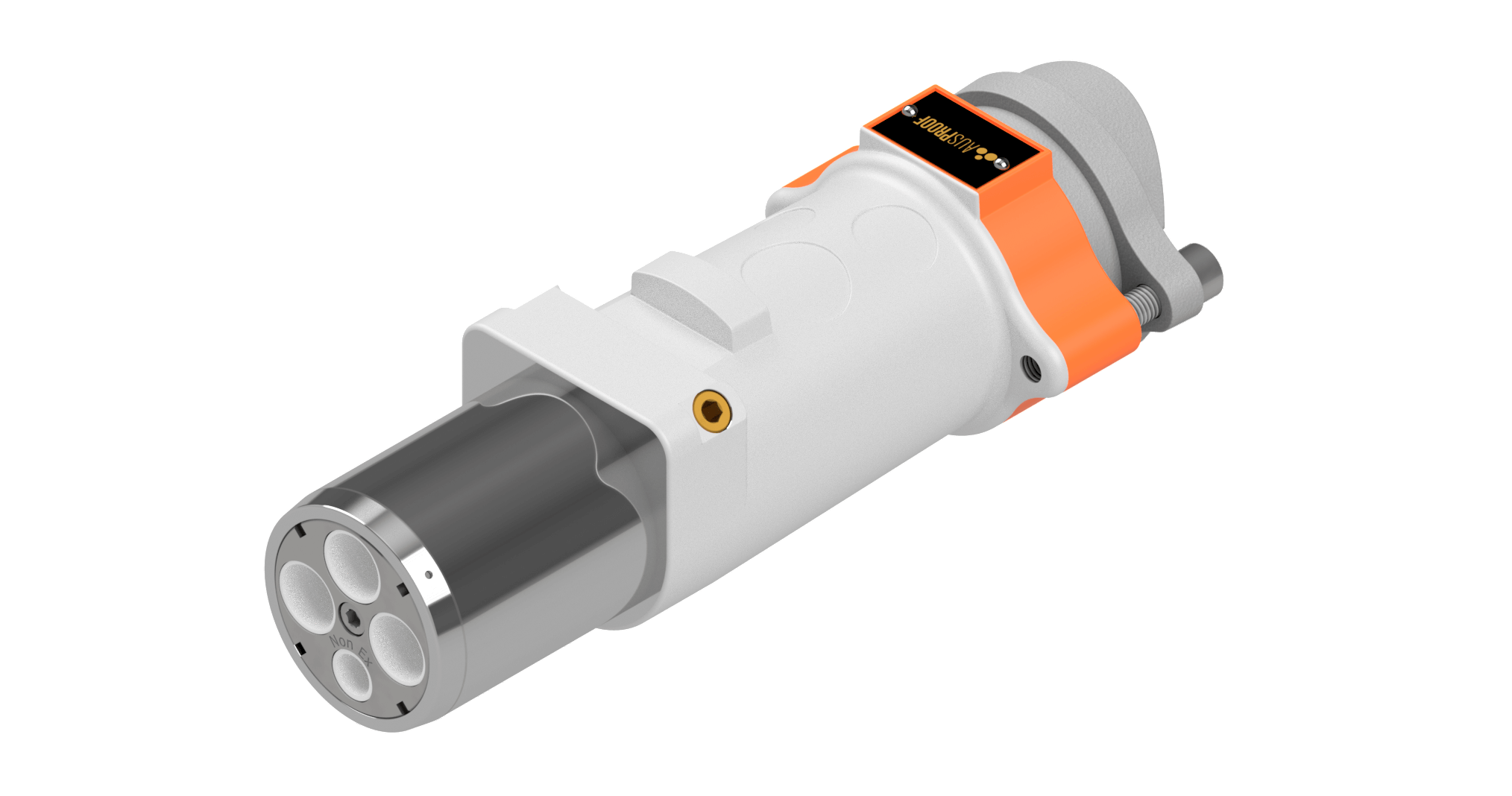

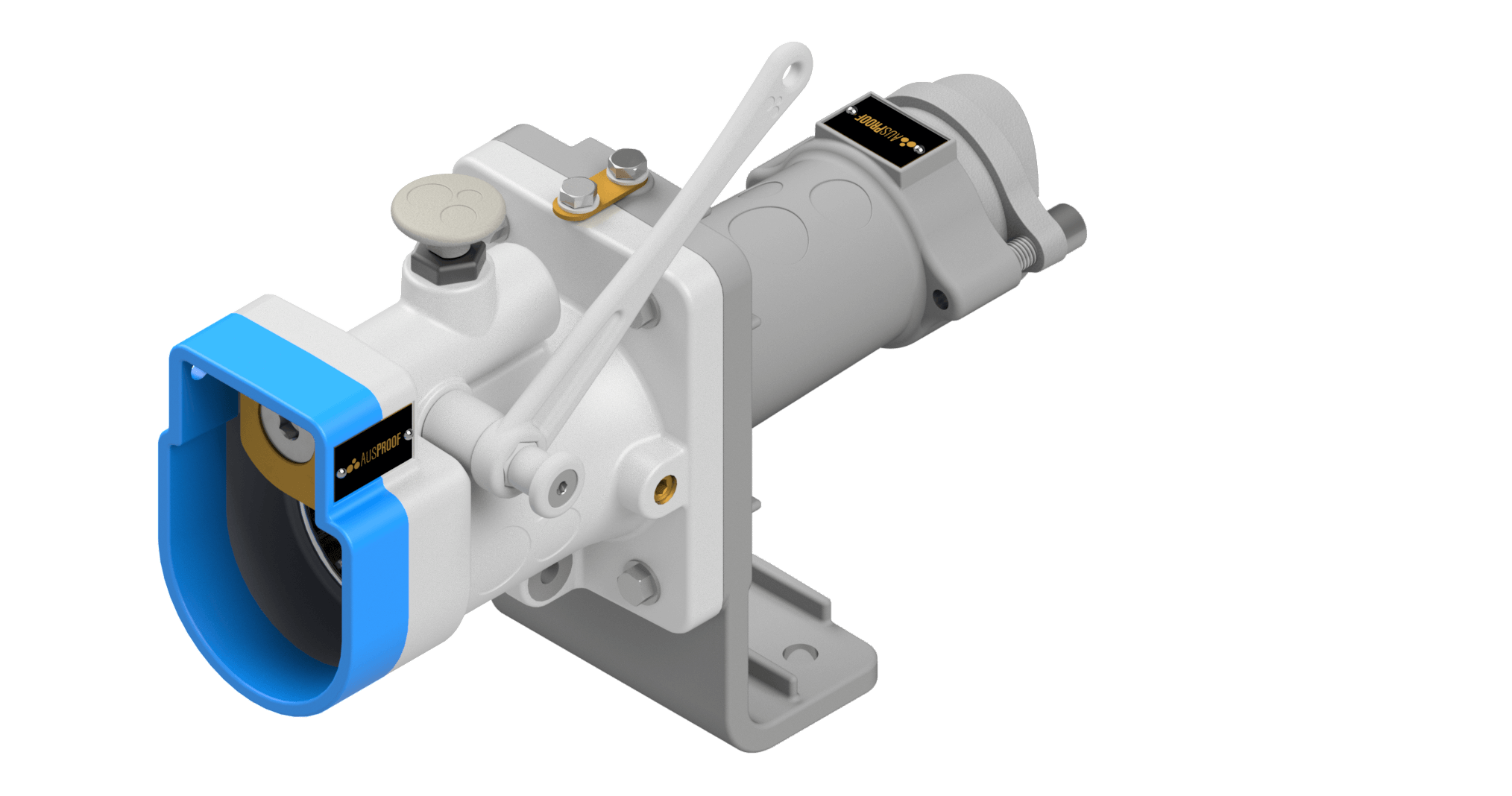

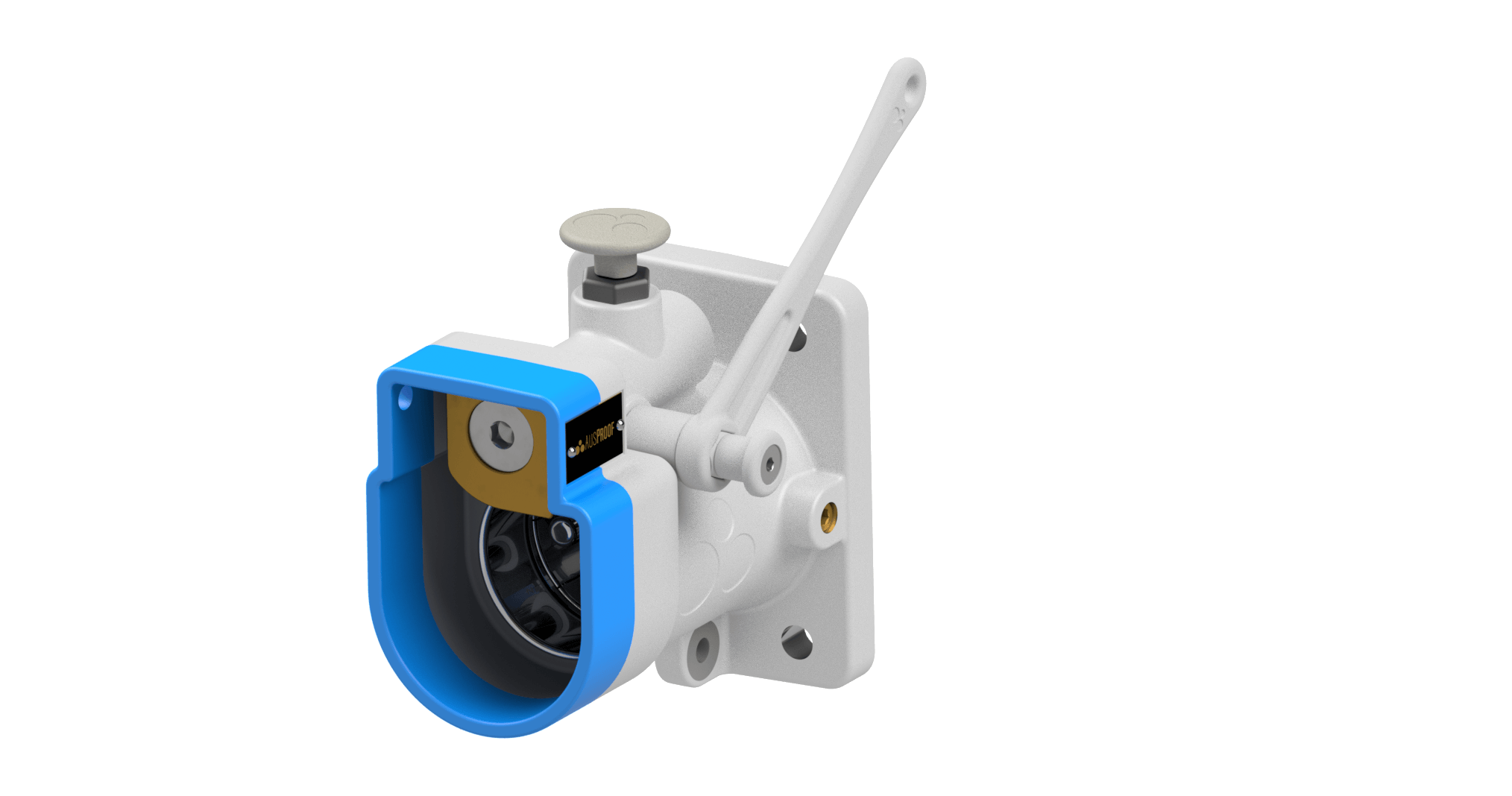

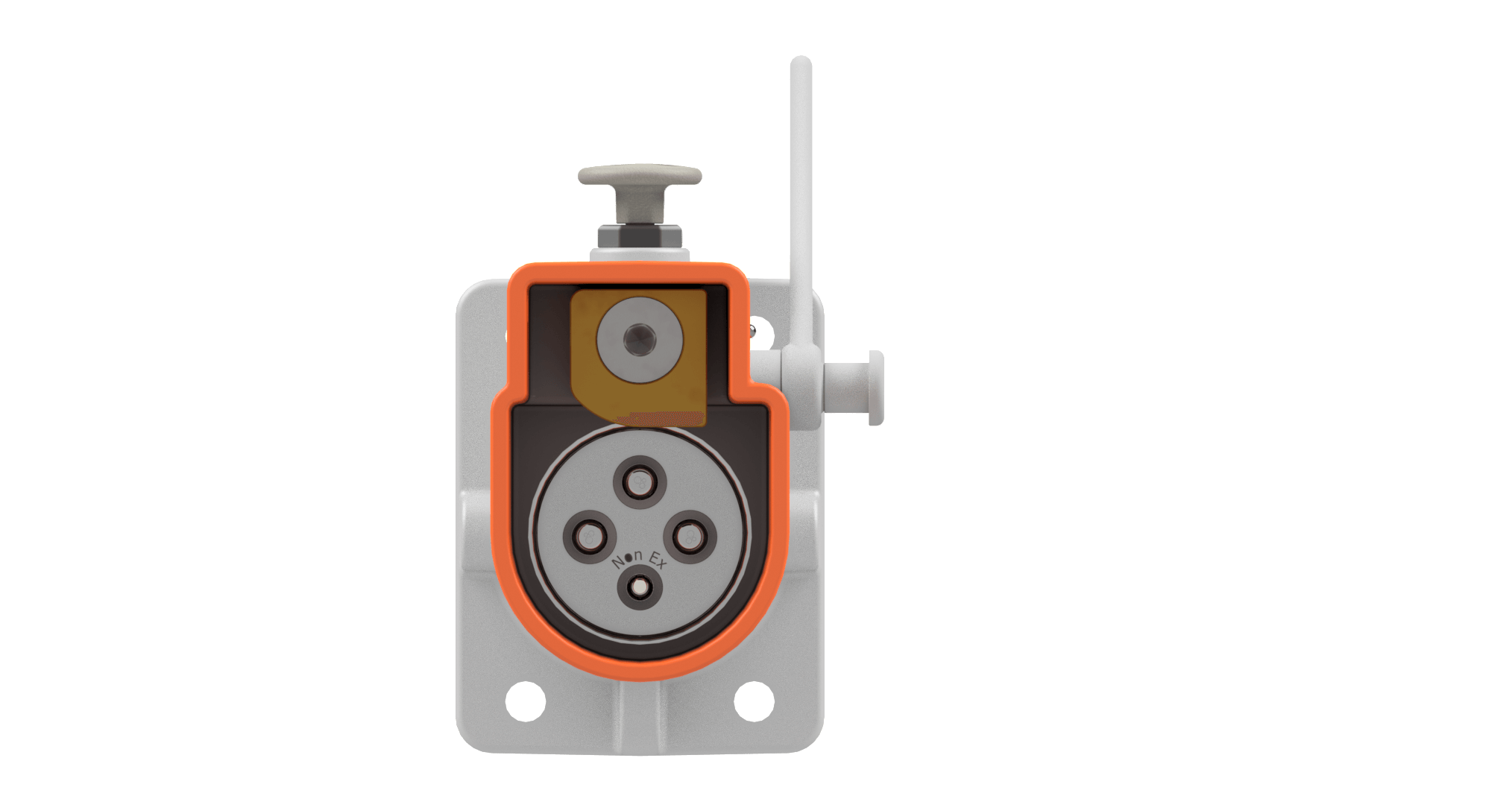

The AS Range of plugs and receptacles offer operating voltages of 660V and 1,100V, both of which are rated for 150A. Weighing significantly less than their stainless steel alternatives, plugs in this range are 360 grams lighter, while the receptacles are 3.9kg lighter. Ideal for the pumping market, AS plugs can be fitted to pump cables of all types up to 95sq mm. Receptacles in this range offer three different release options: Jack-In Release, Quick Release, and Ratchet Release. They can also be purchased as a Quick Release RGB (Receptacle Gland Bracket) assembly.

Contact Us

  • Features

    • Quick Release
    • Solid stainless steel internal cage
    • Single piece contacts to prevent hot joints
    • Easy termination
    • Full solid earth connectivity throughout product
    • Full phase to phase segregation with earth
    • Lightest product on the market

  • Accessories

    • Silicone protection cover

Technical Information

  • Specs

    Volts 660-1,100
    Amp 150
    Receptacle Weight (KG) 4.0KG
    Plug Weight (KG) 3.74KG
    Material Aluminium and Stainless Steel

    Downloads

    Product Dimensions
    Technical Manual
    Product Solids

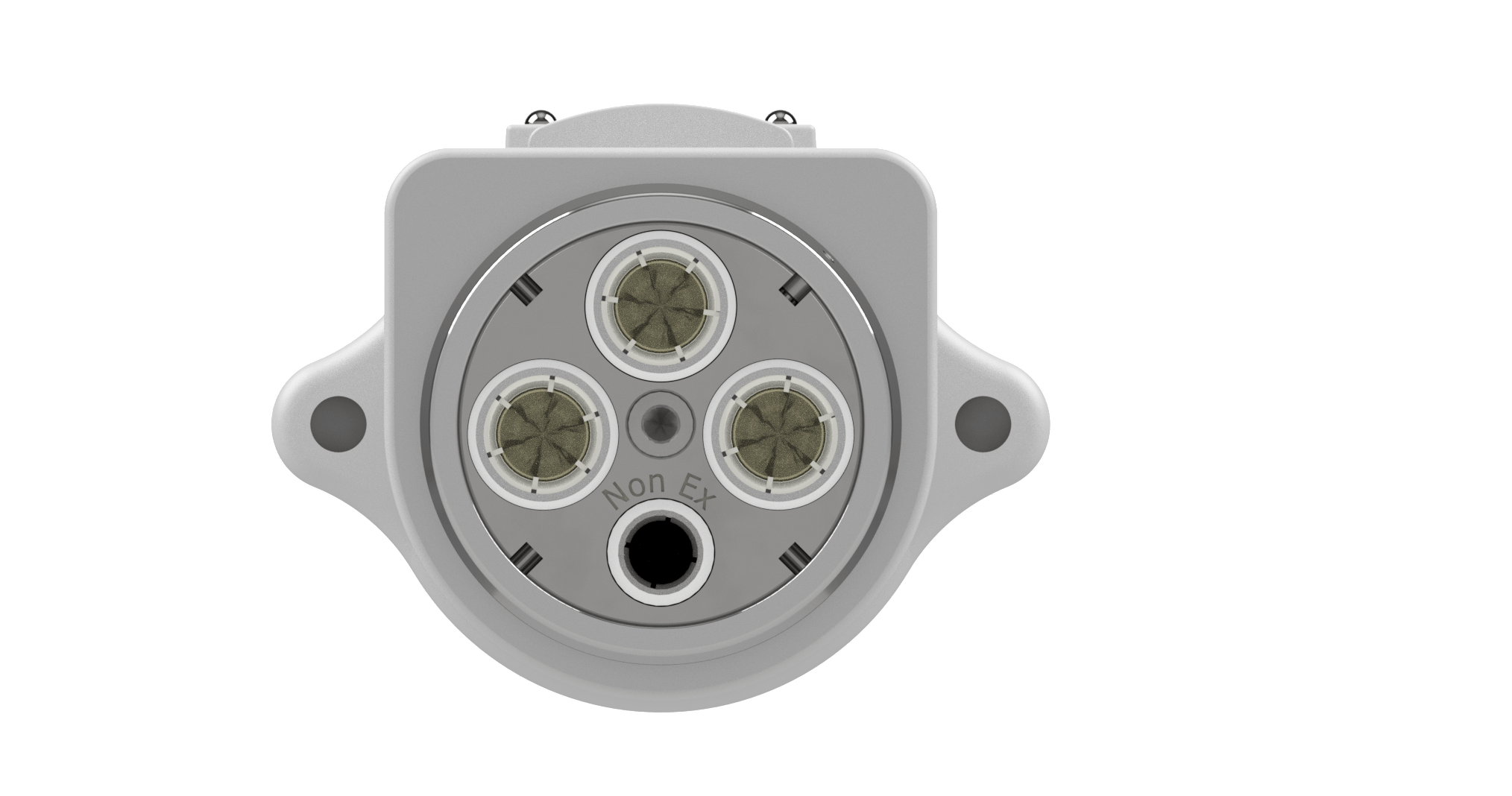

    660-1100V / 150A / 4 Pin Pilot + Pin Contact Connections Lengths

  • Test Results

    Compatible to AS/NZS 1299
    Through Fault Current (Phase) 2 Tests of 12.5kA for 0.2 second
    Through Fault Current (Earth) 2 Tests of 4.0kA for 0.2 second
    AC HV Withstand (Phase) 4.2kV for one minute
    AC HV Withstand (Pilot) 1.0kV for one minute
    Temperature Rise 150 Amp
    Ingress Protection IP55
    Impulse Voltage N/A
    Partial Discharge N/A
