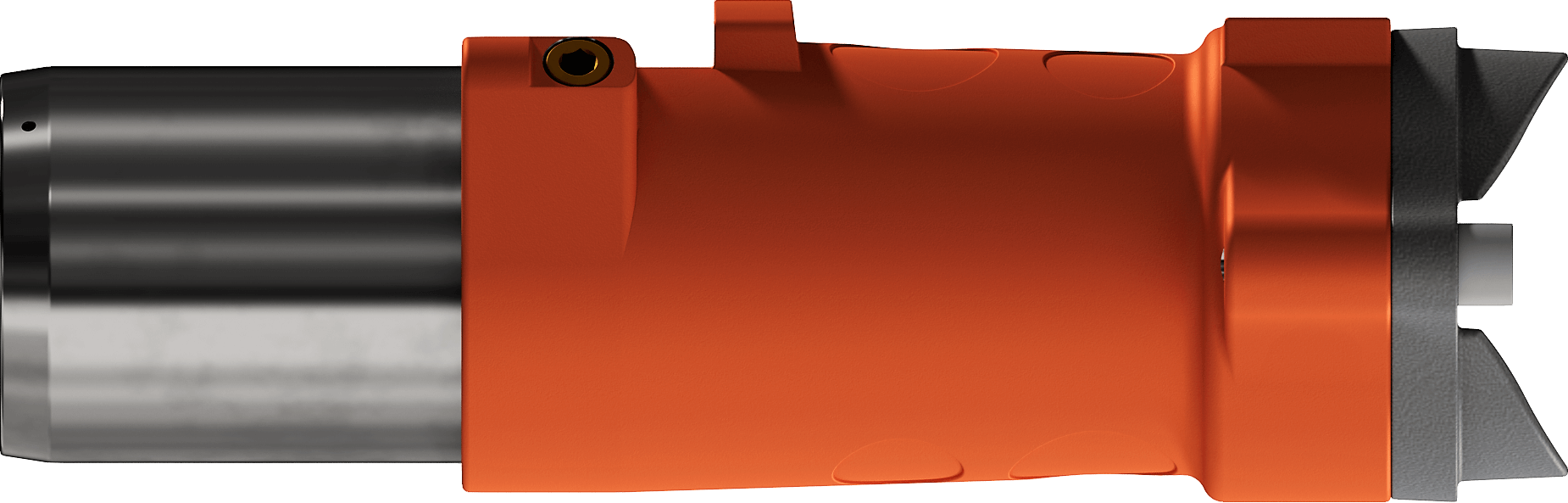

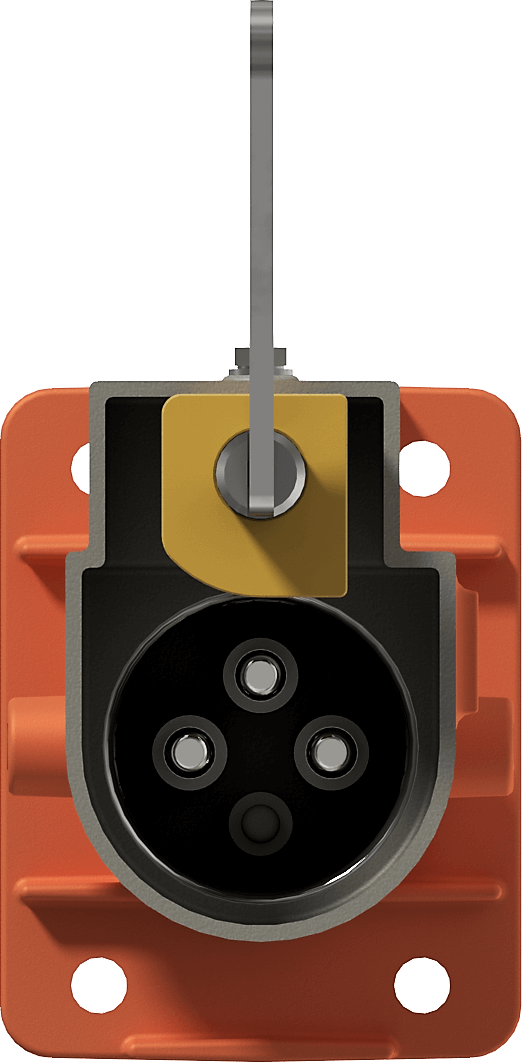

PS (Plug Small) Range | Stainless Steel Restrained Plugs and Receptacles

Ex-certified and fully compliant to AS/NZS1299, the PS Range offers 150A plugs and receptacles with operating voltages of 660V and 1,100V.

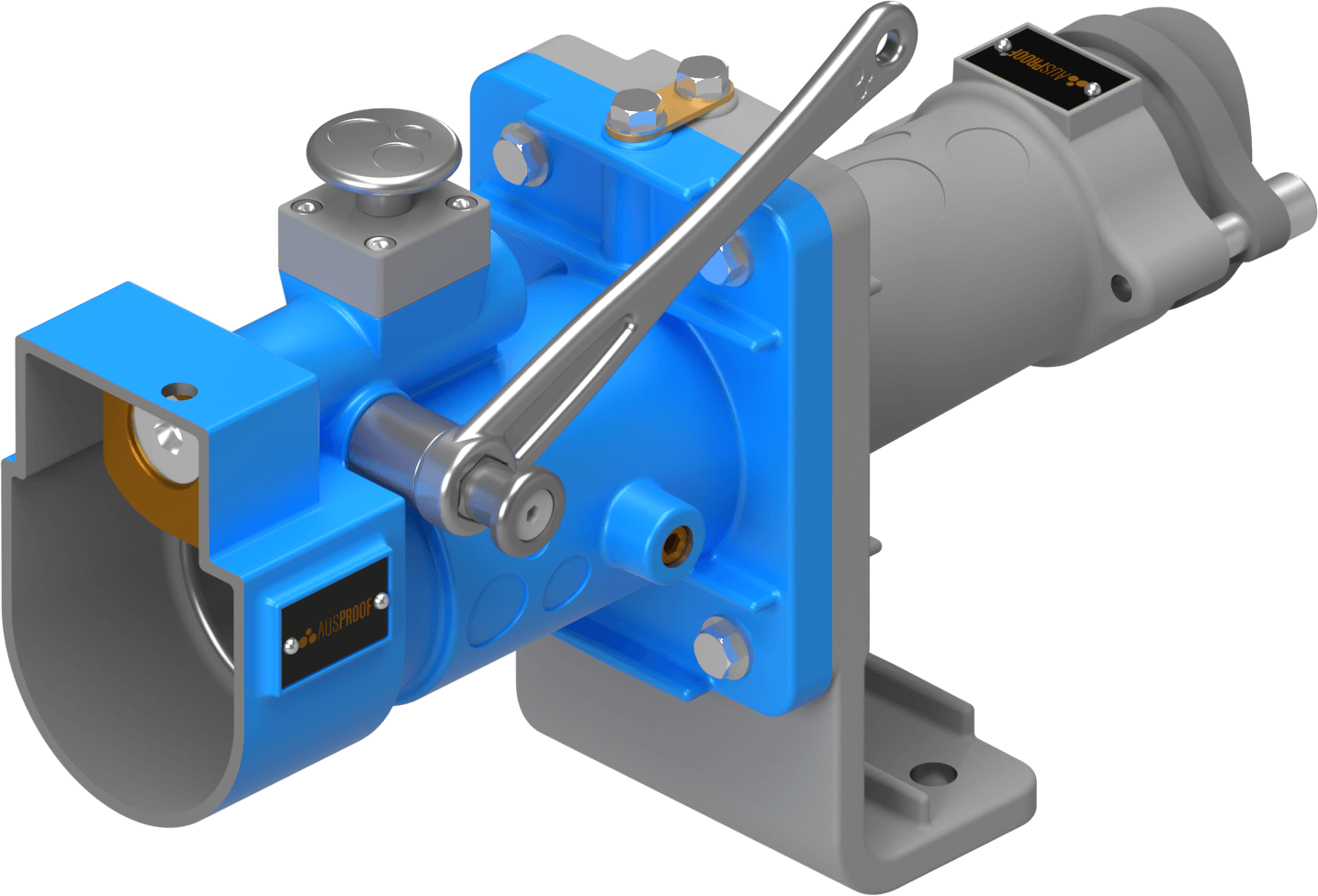

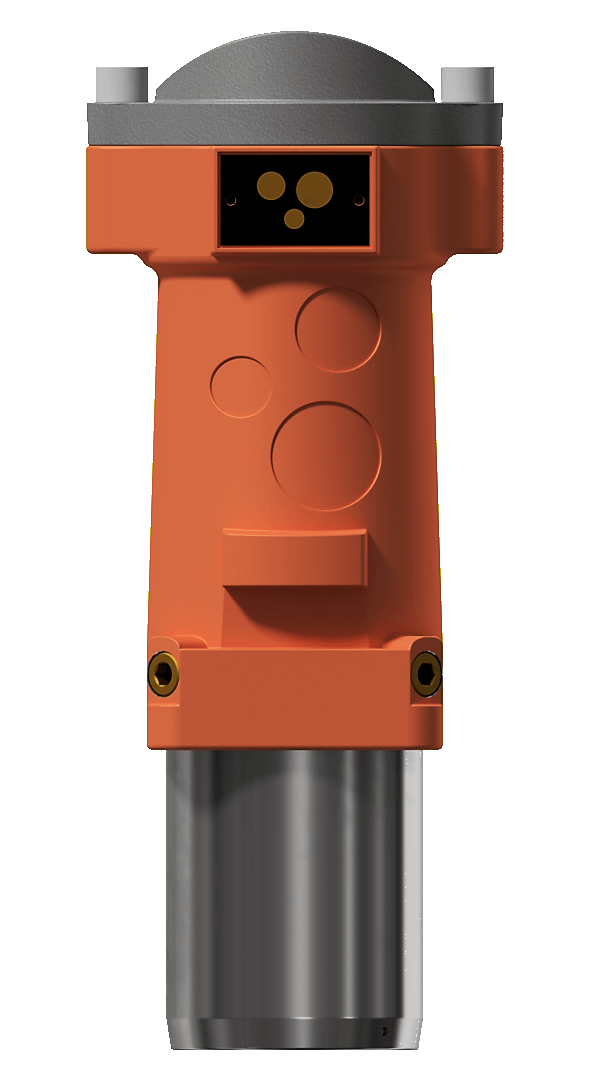

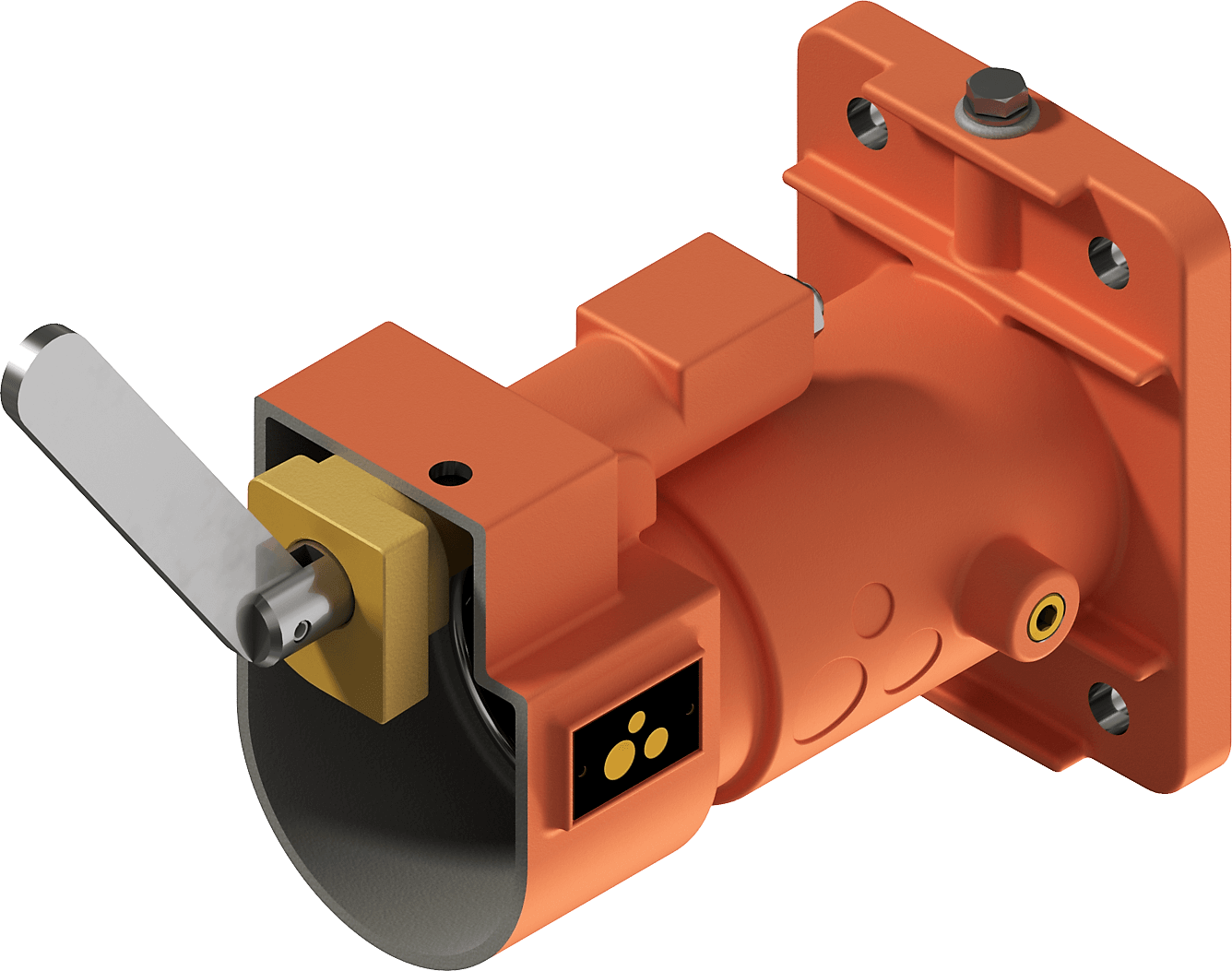

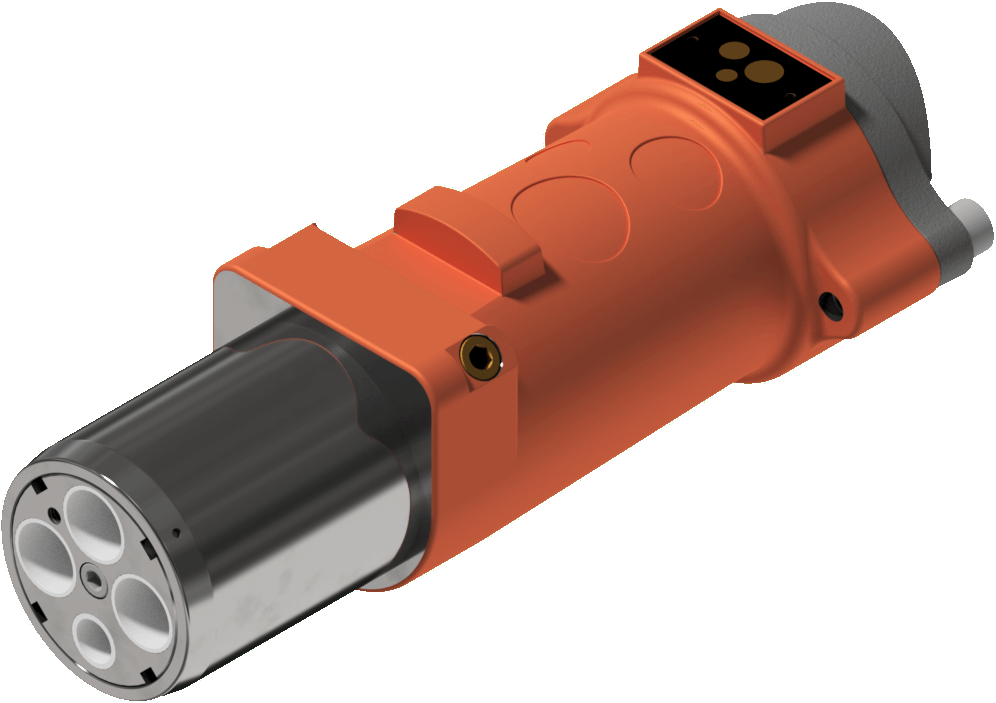

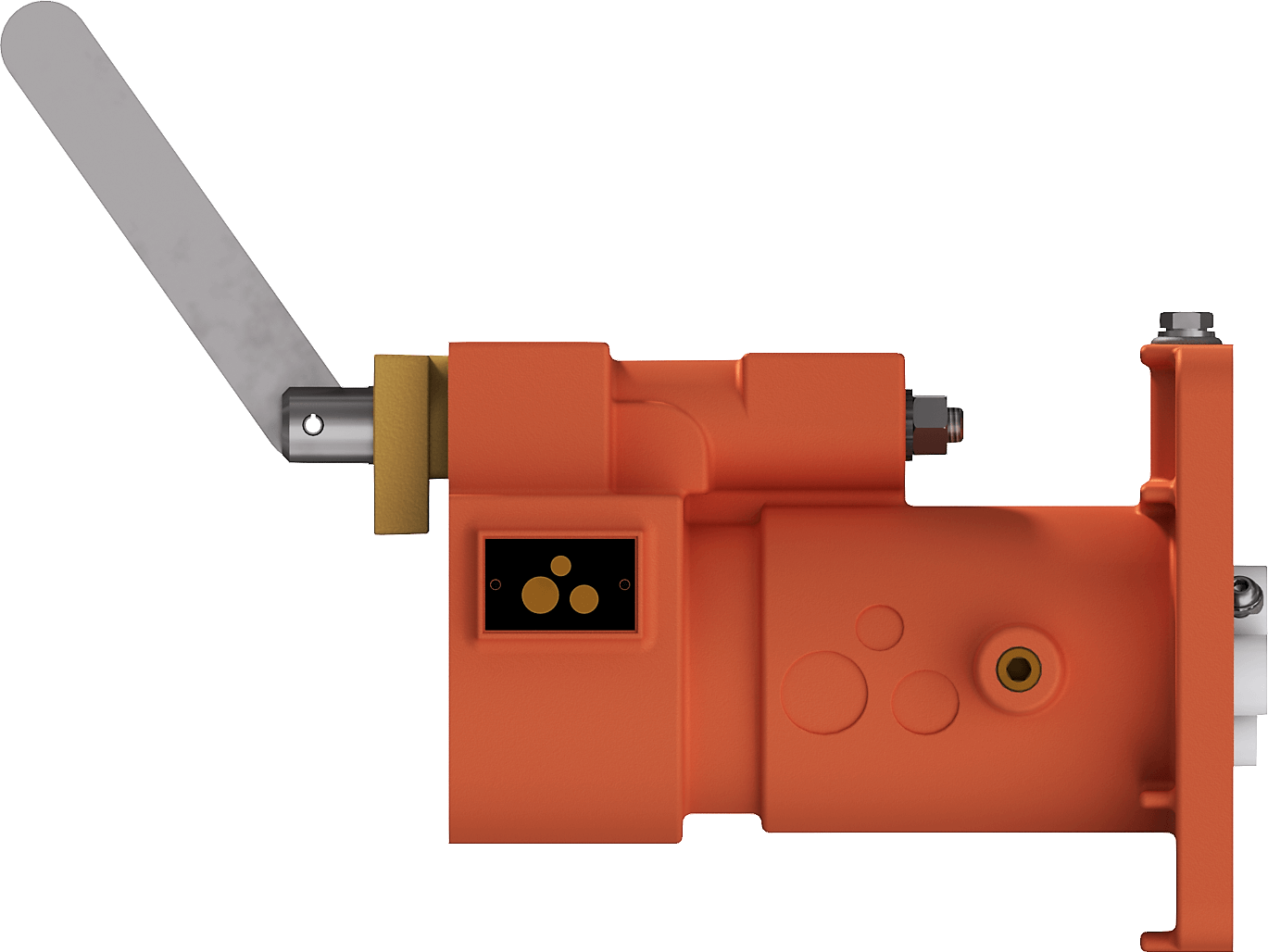

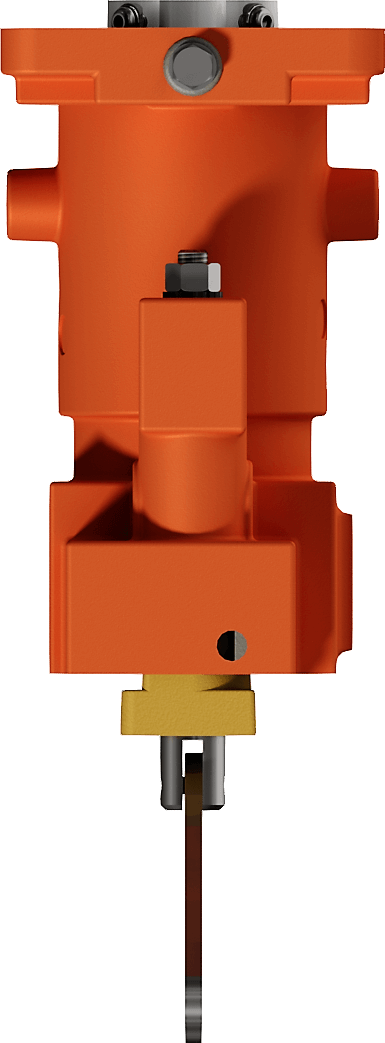

Plugs and receptacles in the PS Range are suitable for use in mining, tunnelling and commercial applications, including Group 1 hazardous environments. In the event of flamepath damage, the outer body casting of PS plugs can be replaced on-site, even underground, with no specialised training or cable termination required. The outer body casting can also be ordered separately. Jack-In Screw and Quick Release options are available for PS receptacles, with Back-to-Back (B2B) and Receptacle Gland Bracket (RGB) assemblies offering both types of releases.

Contact Us

  • Features

    • Quick Release
    • Single piece contacts to prevent hot joints
    • Easy termination
    • Easy flameproof repair
    • Full solid earth connectivity throughout product
    • Full phase to phase segregation with earth
    • Lightest Ex product on the market

  • Accessories

    • Silicone Protection Cover

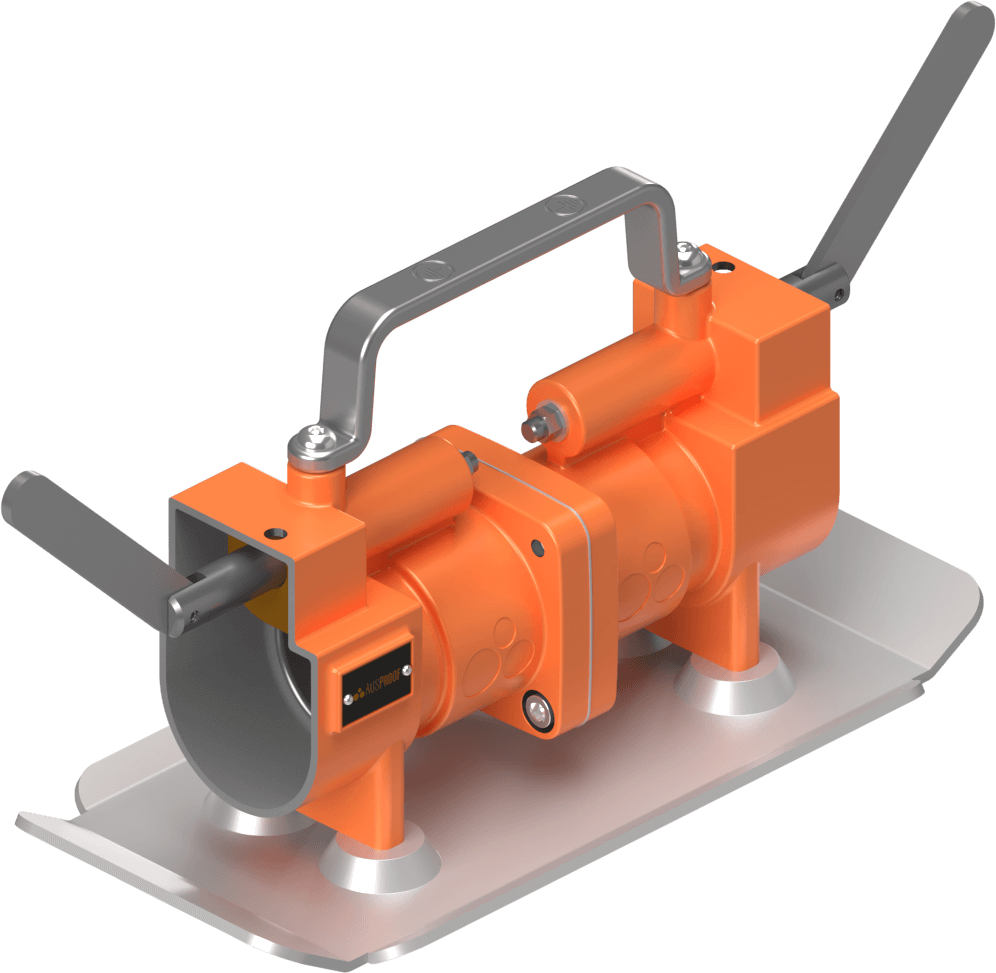

    • Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Technical Information

  • Specs

    Volts 660 to 1,100
    Amps 150
    Receptacle Weight(KG) 7.9KG
    Plug Weight(KG) 4.1KG
    Material Stainless Steel

    Downloads

    Product Dimensions
    Product Solids
    Technical Manual

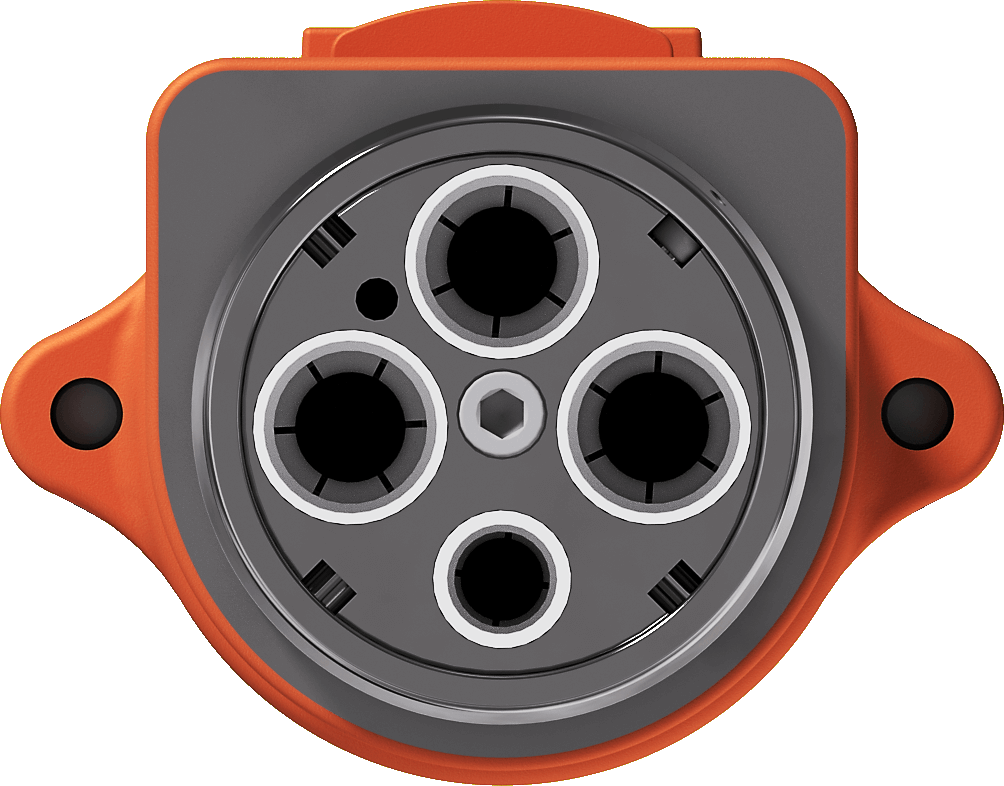

    660-1100V / 150A / 4 Pin Pilot + Pin Contact Connections Lengths



  • Test Results

    Compliant to AS/NZS 1299, IEC 60079-0, IEC 60079-1
    Through Fault Current (Phase) 2 Tests of 12.5kA for 0.2 seconds
    Through Fault Current (Earth) 2 Tests of 4.0kA for 0.2 seconds
    AC HV Withstand (Phase) 4.2kV for one minute
    AC HV Withstand (Pilot) 1.0kV for one minute
    Temperature Rise 150A
    Ingress Protection IP55
    Impulse Voltage N/A
    Partial Discharge N/A
