AL Range | Aluminium Restrained Range Plugs and Receptacles

The aluminium range of AL restrained plugs and receptacles provides an alternative low voltage option for non-hazardous environments.

The AL aluminium restrained range covers 300-425 amp, with phase rotation to give 660, 1100 volts or 3300.

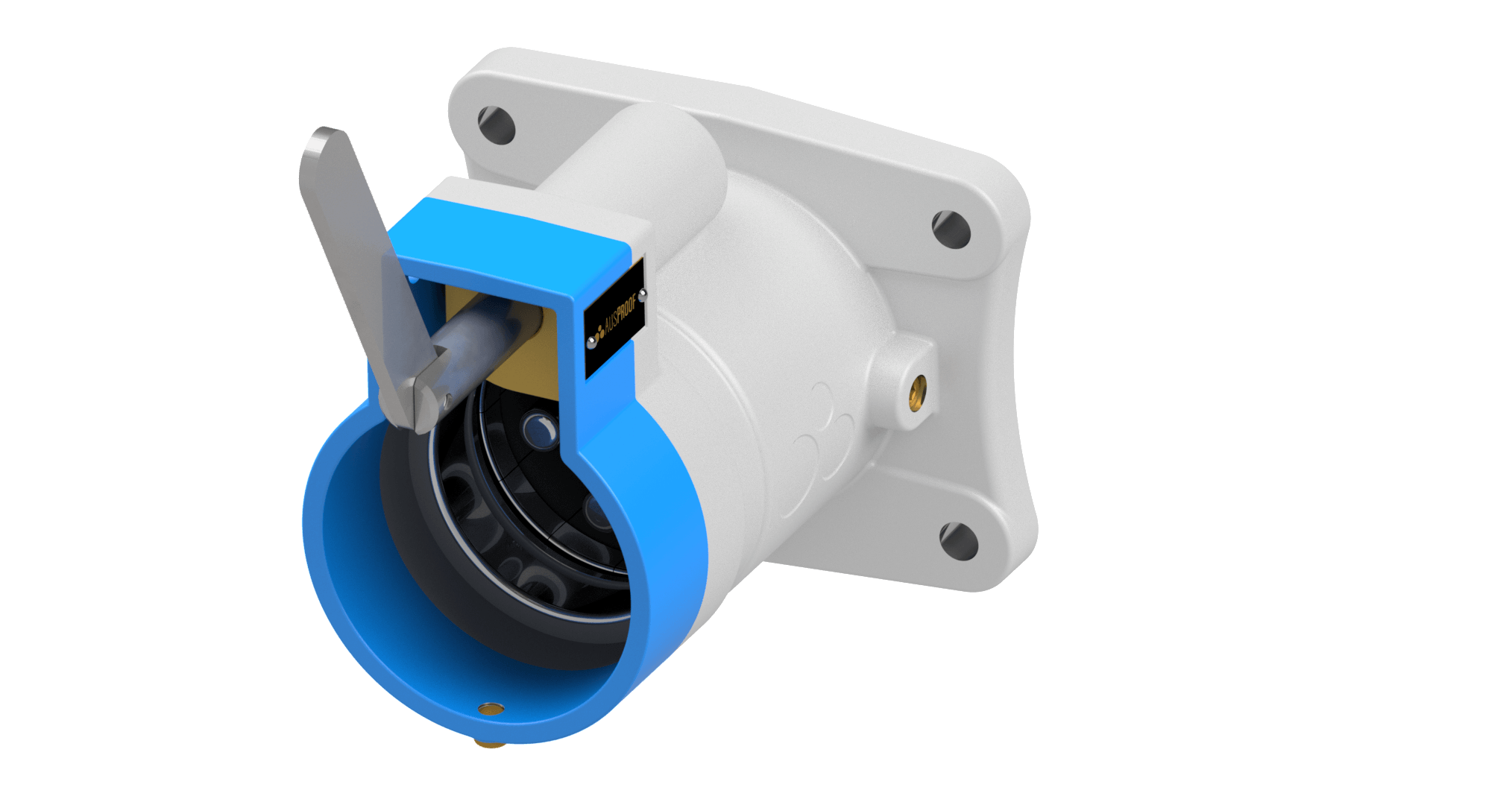

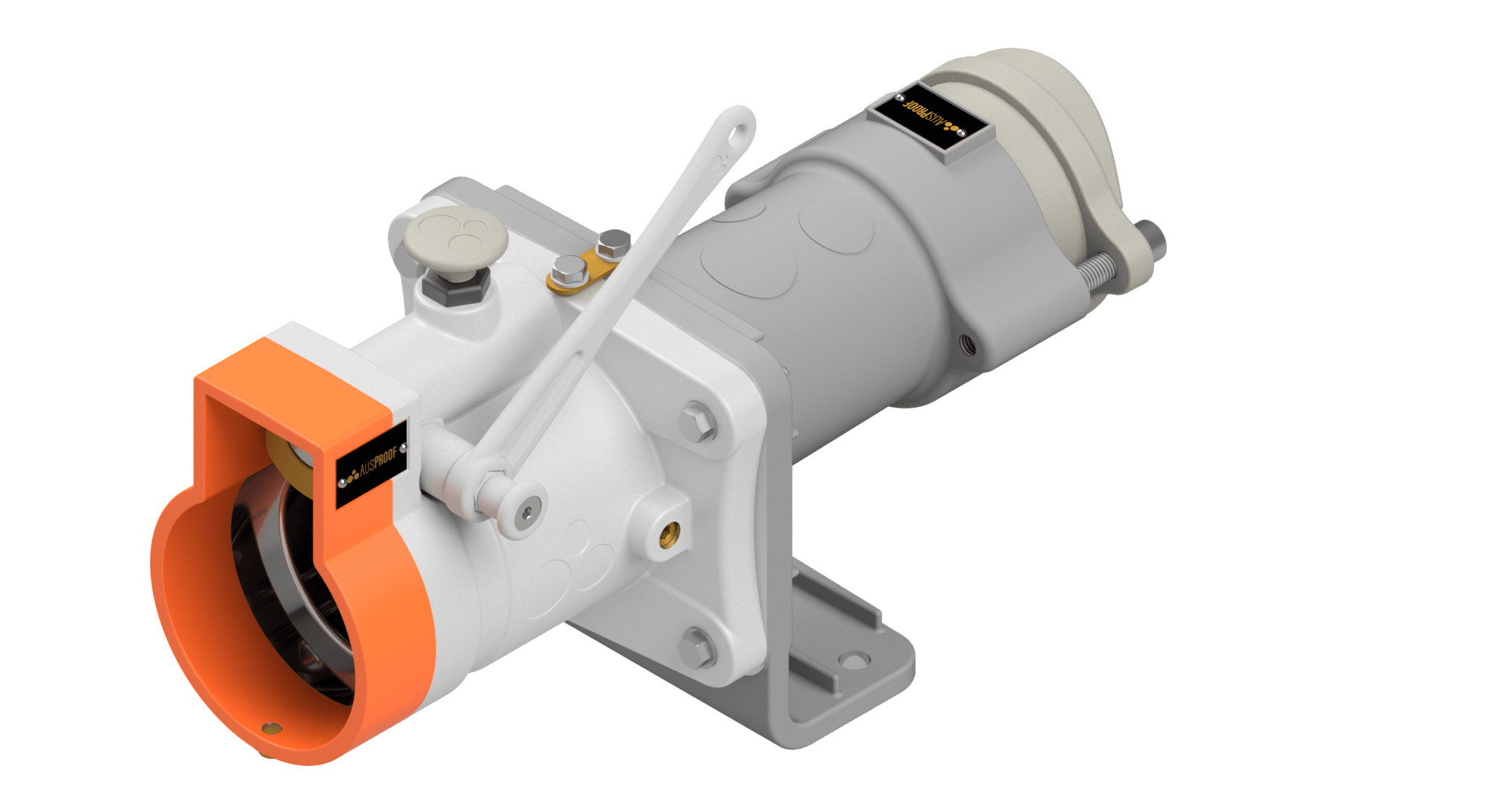

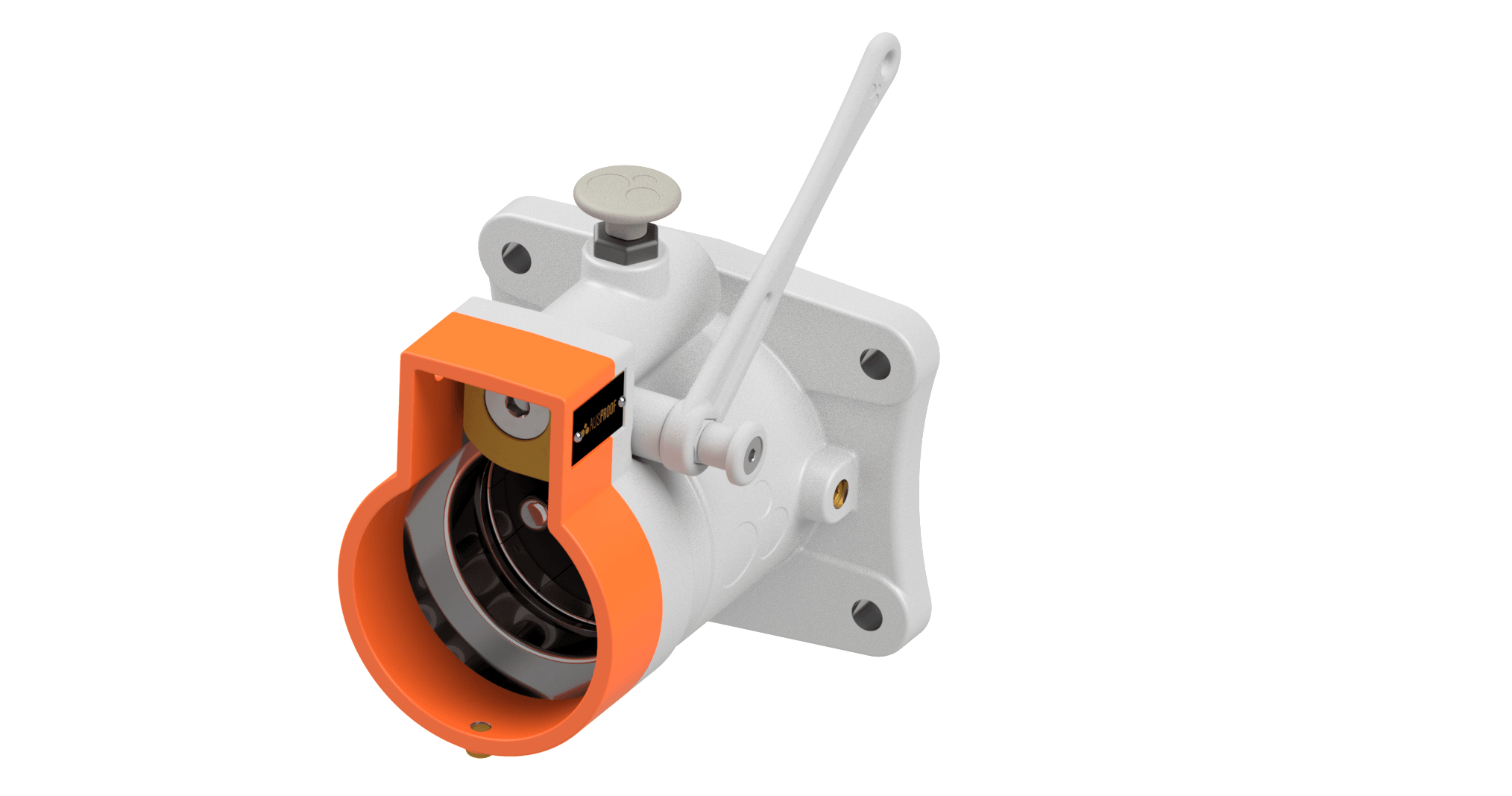

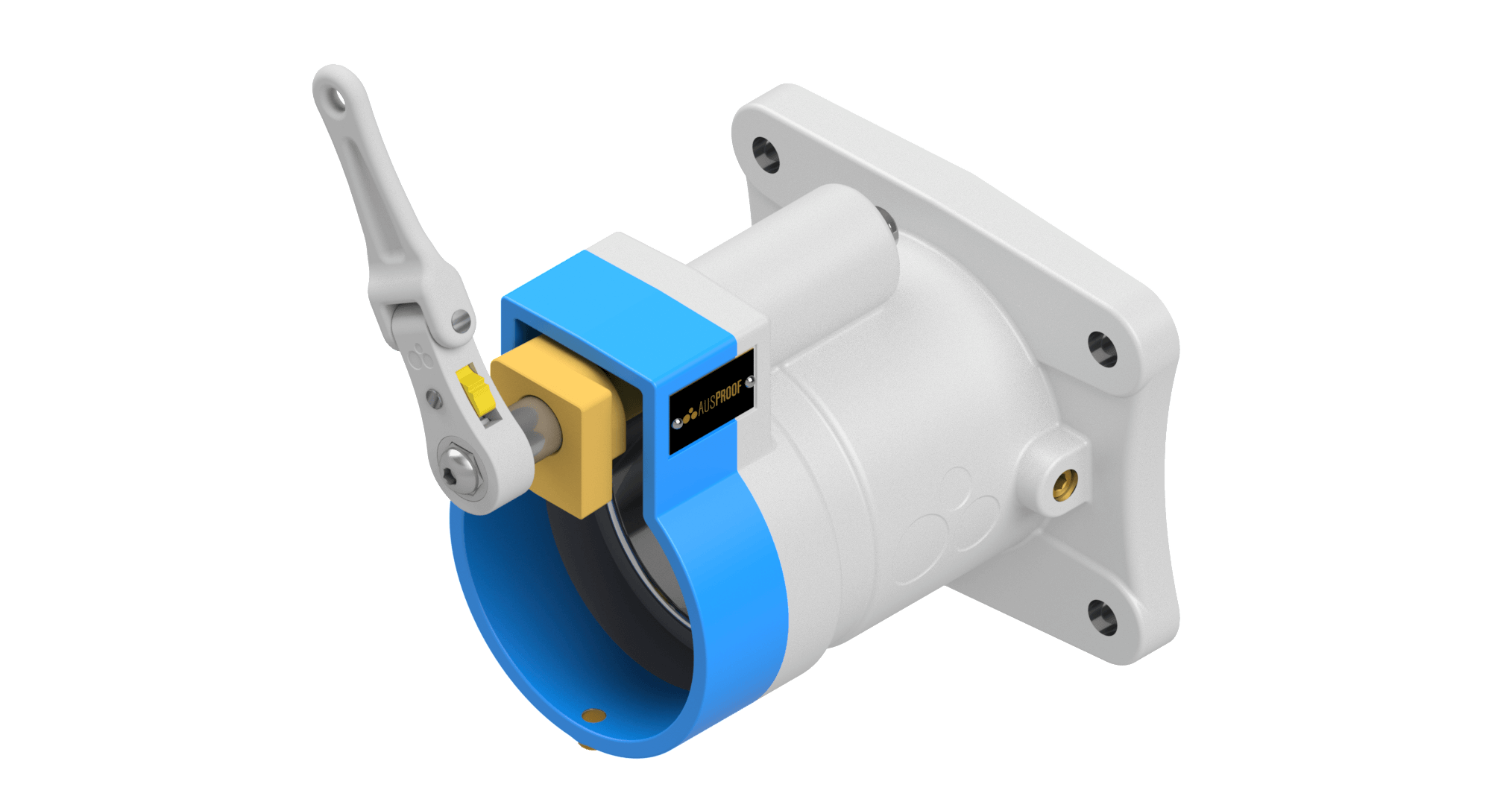

The aluminium range of plugs and receptacles is suitable for use in non-ex mining, tunnelling and commercial applications. Additional features include one piece contacts and an easy to remove out body, making it easier to maintain and ensures continued reliability.

The aluminium range is designed to be easily identified, with a white casting and colour bands resembling the volts and amps. Additionally, there is ‘Non-Ex’ labels and laser marks on components.

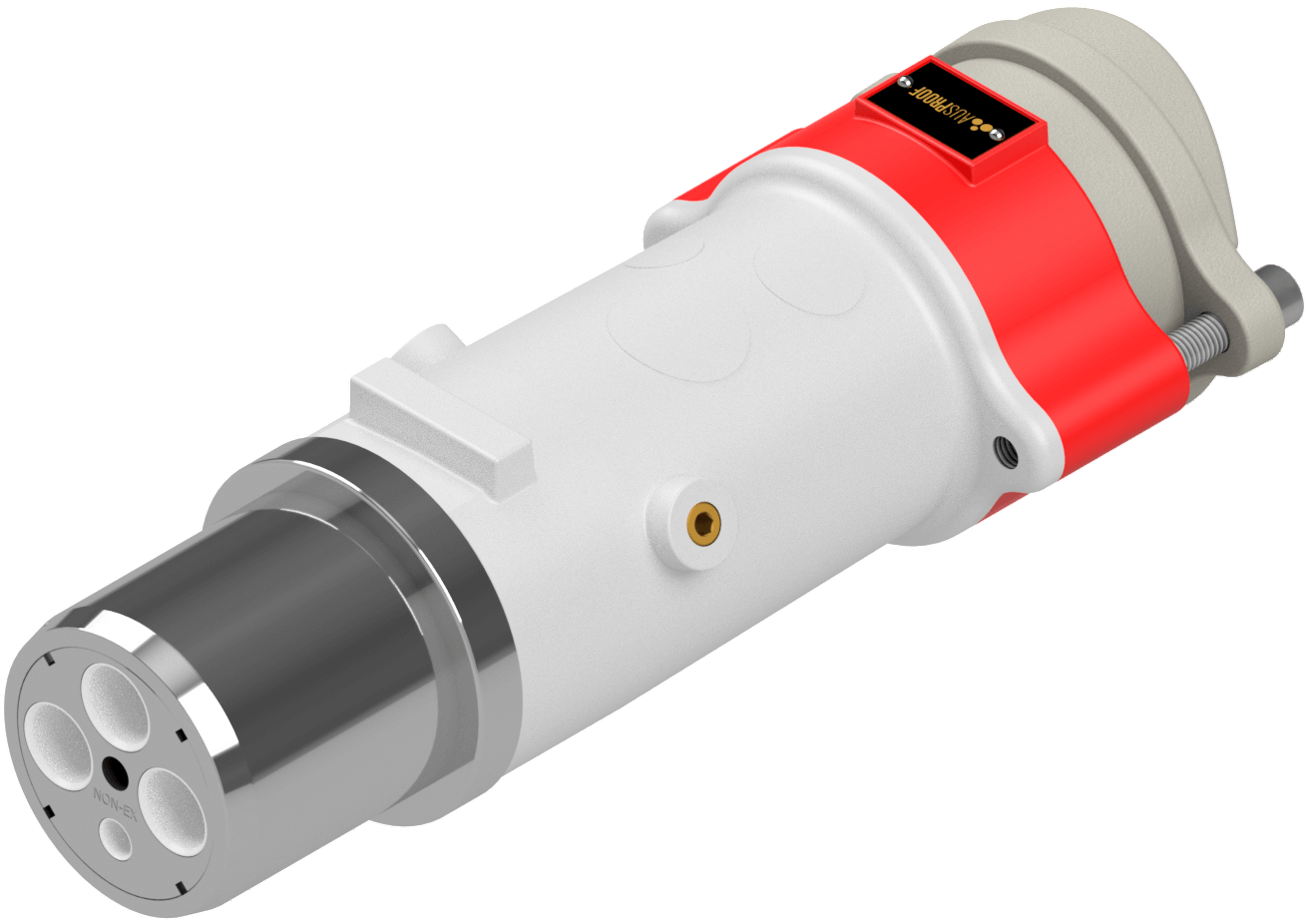

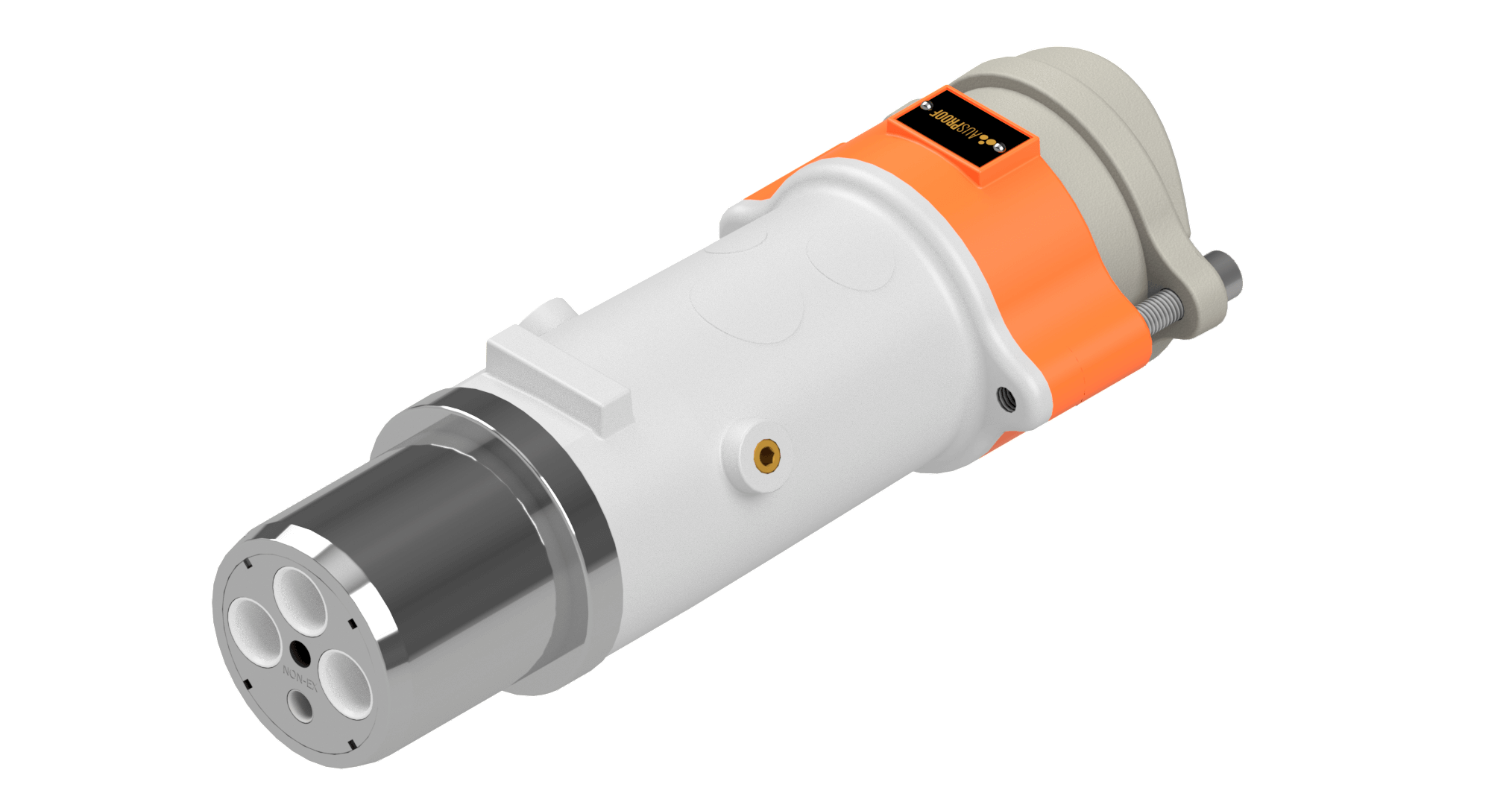

Offering a significantly lighter option, the plug is 1.04kg lighter, while the receptacle is 4.36kg lighter than the stainless steel option.

The range also includes a durable silicon cover the plugs and an O-ring sealed bung for the receptacles.

Contact us

  • Features

    • Quick Release
    • Solid stainless steel internal cage
    • Single piece contacts
    • Easy termination
    • Full solid earth connectivity throughout product
    • Phase to earth segregation
    • Lightest product on the market
  • Accessories

    • Silicone protection cover
    • Insulated End Cover

Technical Information

  • Specs

    Volts 660-3300
    Amp 300-425
    Receptacle Weight (KG) 6.34KG
    Plug Weight (KG) 7.96KG
    Material Aluminium and Stainless Steel

    AL Aluminium Restrained Range cover



















    Download Technical Manual

  • Test Results

    AC HV Withstand 4.2kV – 8.6kV for 1 minute
    Compliant to: AS/NZS 1299:2009
    Through Fault Current at 10 minute intervals 25kA for 0.2 seconds
    25kA for 0.2 seconds
    Temperature Rise 300A and 425 amp
